FormD (Liquid Meta)

BY L91L91 2026-10-21T12:00:32+00:00 FormD T1 Sandwich V2.1

VIEW CASE DB ↗VIEW CASE IN 3D ↗ALL BUILDS

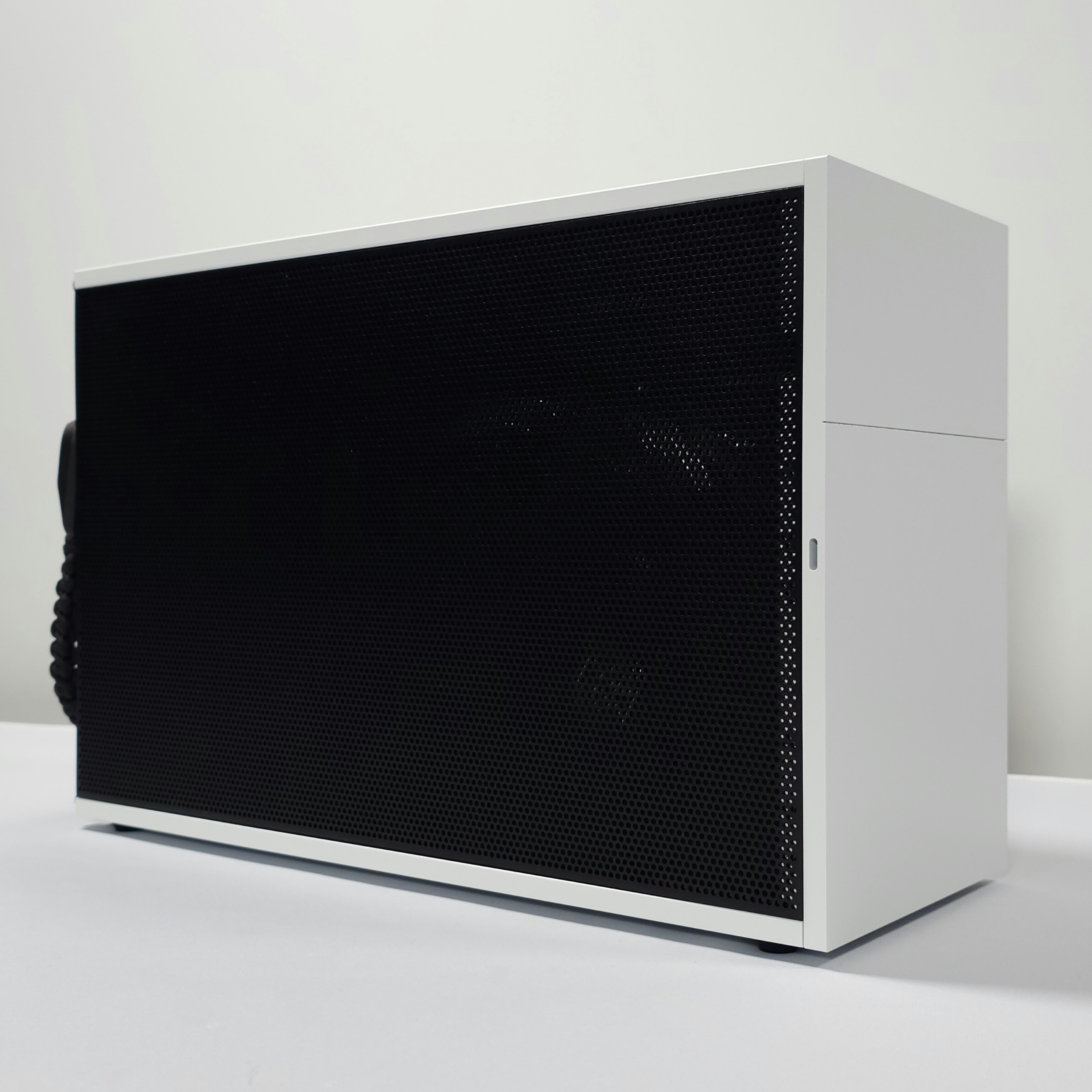

CASEFormD T1 Sandwich V2.1
COLOURWhite
LAYOUT / MODE3.00-Slot Mode
BUILDER-REPORTED FITStandard Fit
FROM THE USER

BUILD NOTES

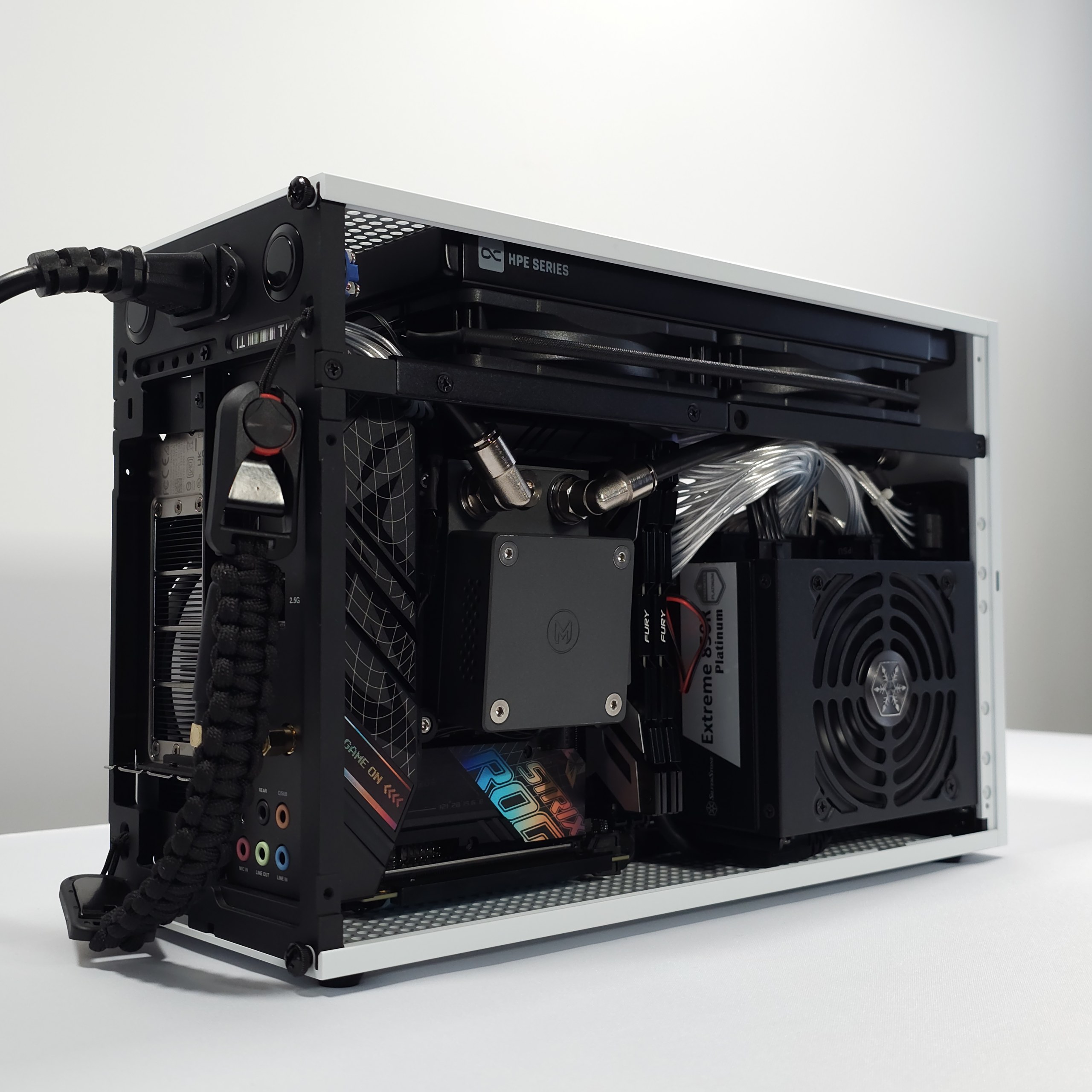

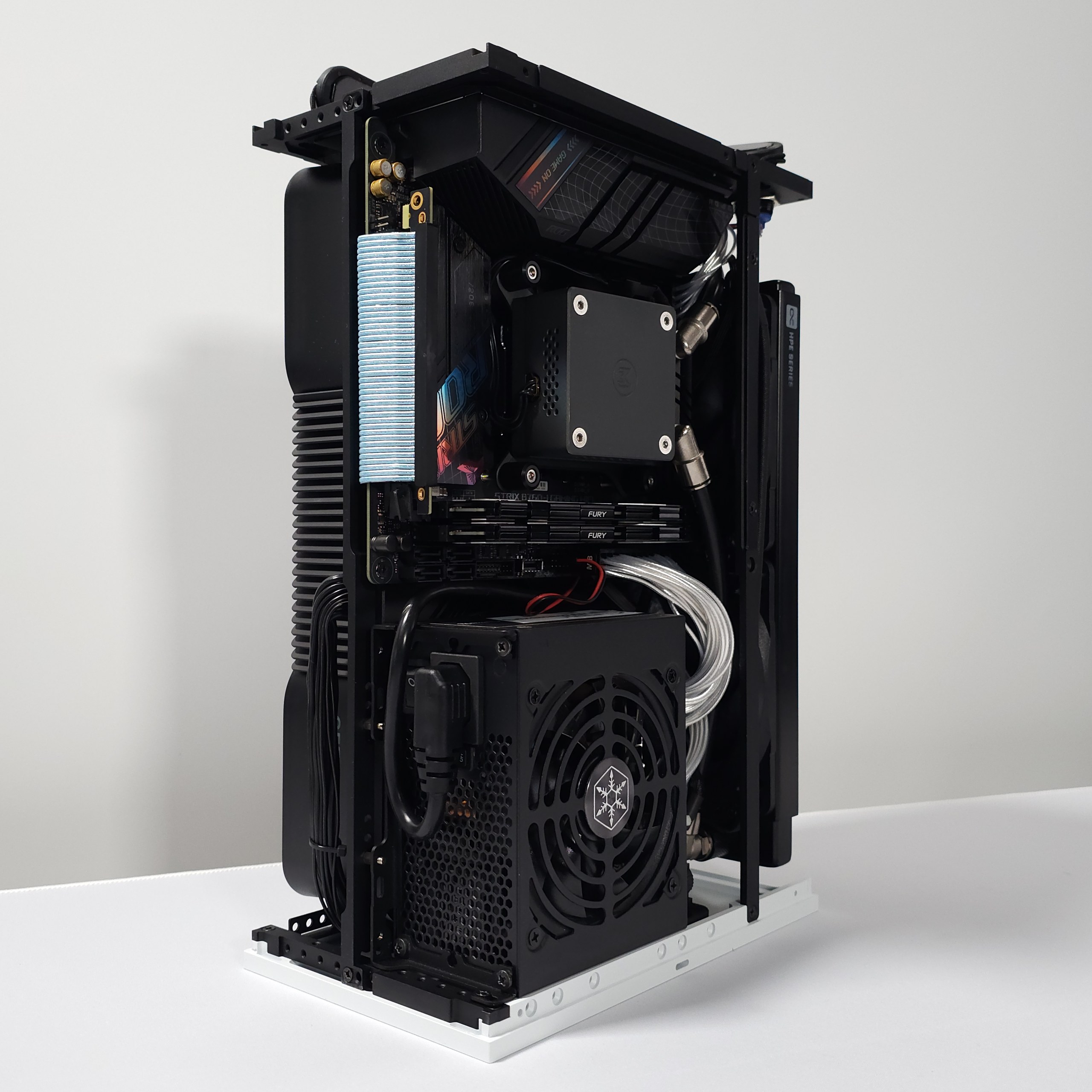

This build uses custom CPU only liquid cooling loop for improved customisation and flexibility vs traditional AIO liquid coolers. The DDC 4.2 pump was set to 1800RPM, as these have a tendency to produce a high-pitched whine at higher RPM’s. The pump is powered and controlled by an Aquacomputer Quadro. Radiator fans were set to fixed/max speed of 50%. The 13900K CPU was undervolted by 0.07V, tested at 253W, 180W and 125W. These are just my preference. Two DIY power buttons & FormD case handle was installed at the rear. USB-C installed at the front of the case.
SUBMITTED CONFIGURATION

HARDWARE

MOTHERBOARDAsus ROG STRIX B760-I GAMING WIFI [ITX] (1700)
MEMORY (RAM)Kingston FURY Renegade DDR5

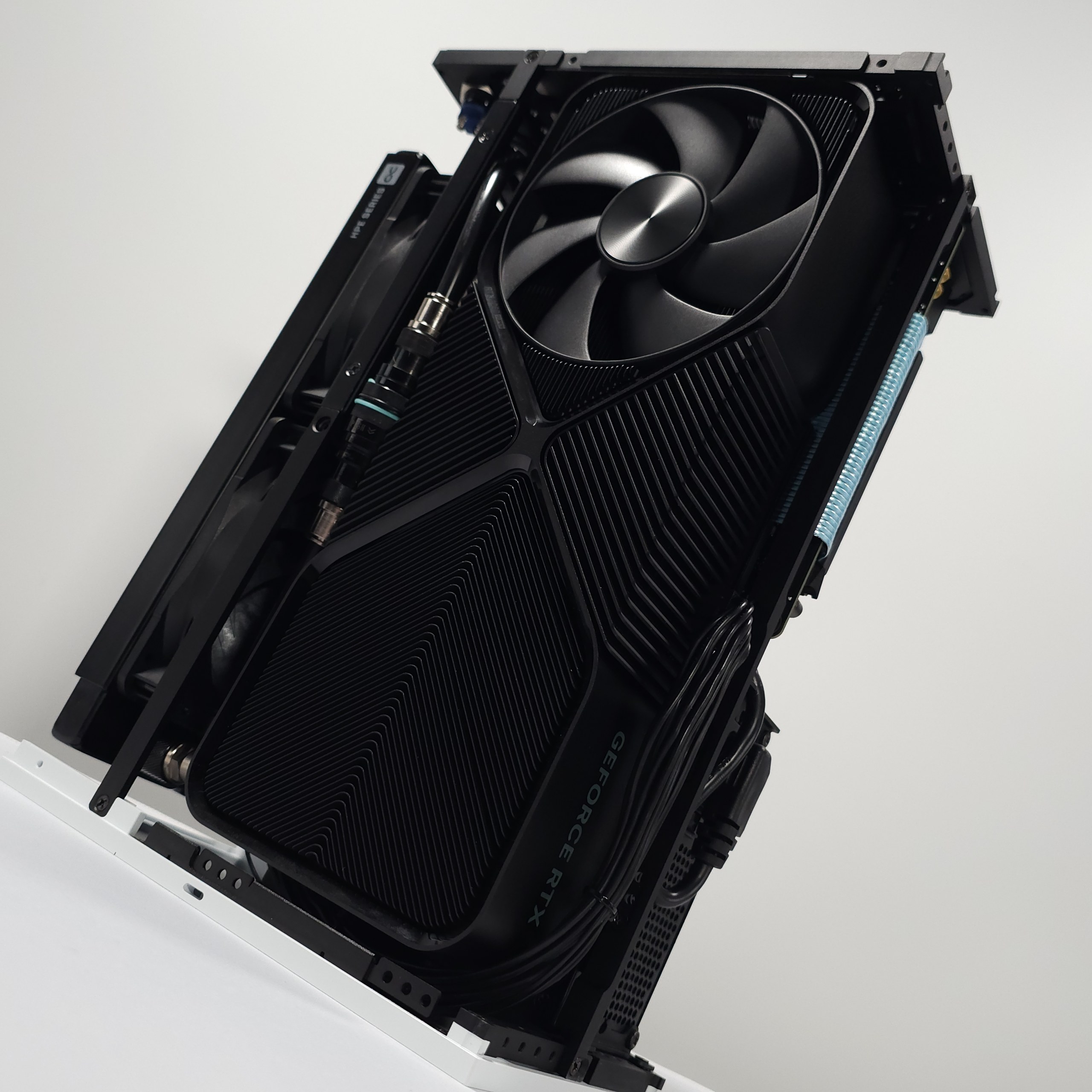

GRAPHICS CARDNvidia RTX 4080 SUPER 16GB GDDR6X Founders Edition
PROCESSORIntel 13900K (1700)
CPU COOLERModultra LOBO
AIO / RADIATORSAlphacool 240 ST20 HPE
CASE FANS2x Noctua NF-A12 Chromax.Black
POWER SUPPLYSilverstone Extreme 850R Platinum (850W)
BUILDER EXPERIENCE

FITMENT

BUILDER SUPPLIED
REPORTED OUTCOMEStandard Fit
AFFECTED AREAS
GPU / SIDE PANEL — GPU POWER — PSU CABLING — CPU COOLER — AIO / RADIATOR — MOTHERBOARD — RAM / COOLER — CASE CONNECTOR — RISER — MOUNTING — OTHER —

Reported from this completed Build. Community evidence is advisory and does not replace published component or case specifications.
