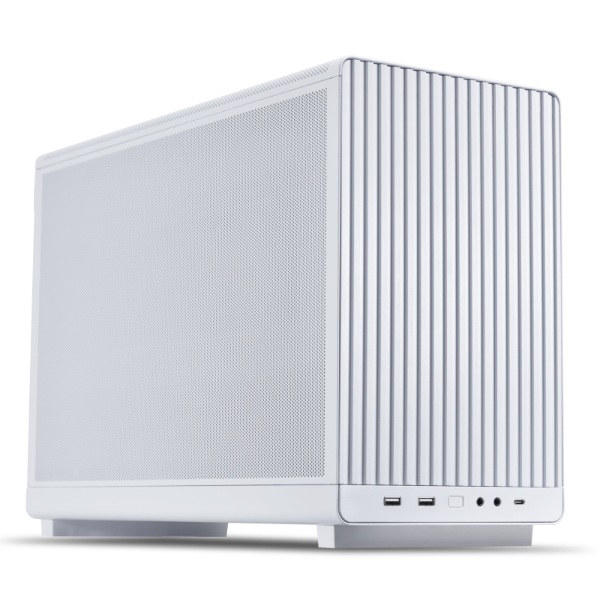

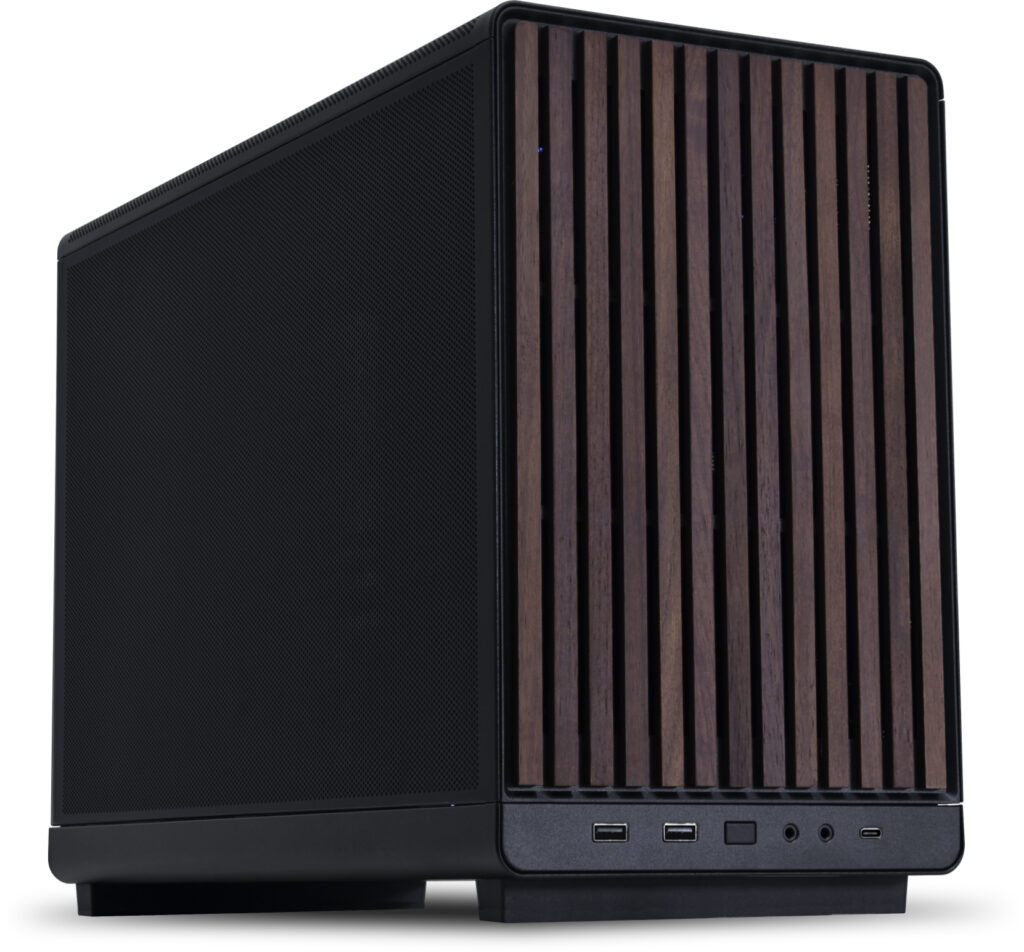

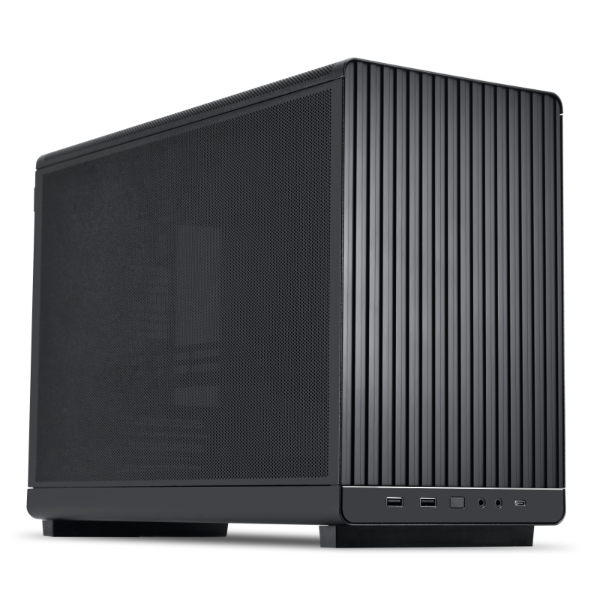

A3-mATX is a 26.2L reference layout Micro-ATX case. The A3 is collaboration effort between Dan Cases & Lian-Li. The case is priced at US$69.99 and expected to release sometime in 2024.
SPECIFICATIONS
| MODEL | A3-mATX |
| DIMENSIONS | 442×194×306mm (L×W×H) |
| VOLUME | 26.2 Litres (excluding 16mm tall case feet) |
| MATERIALS | Steel, Fabric (front panel) |
| COLOURS | Black / White |
| CASE I/O | 2x USB-A 3.0, USB Type-C, Audio & Mic Jack, Power Button |
| MOTHERBOARD SUPPPORT | Mini-ITX, Mini-DTX, Micro-ATX |
| COOLER CLEARANCE | 165mm |
| PCIE EXPANSION SLOTS | 4 slots |
| GRAPHICS CARD COMPATIBILITY | – 430×89×160mm (PSU no longer than 140mm) – 333×89×160mm (PSU longer than 140mm & w/ top radiator) |
| LIQUID COOLING SUPPORT | – Top: Upto 360mm – Side: Upto 360mm (SFX PSU only) – Bottom: Slim Radiator (custom cooling only, 86mm clearance for GPU waterblock + radiator) |
| POWER SUPPLY SUPPORT | SFX / SFX-L / ATX (PSU length and position may affect hardware compatibility) |
| CASE FANS SUPPORTED | – Top: 3x 120mm – Rear: 1x 120mm – Side: 3x 120mm – Bottom: 3x 120 (61mm max GPU thickness w/ 25mm thick fans) |
| 2.5 / 3.5” DRIVES SUPPORTED | 3x 2.5″ / 2x 2.5 + 1x 3.5″ |
There have been dust cleaning concerns raised with Dan A3 fabric mesh front panel. Dan Cases is currently exploring other options, such as plastic slotted design.
Whatever the final front panel design ends up being. It’s confirmed to be removable, so this could potentially open up the possibility of custom options.
