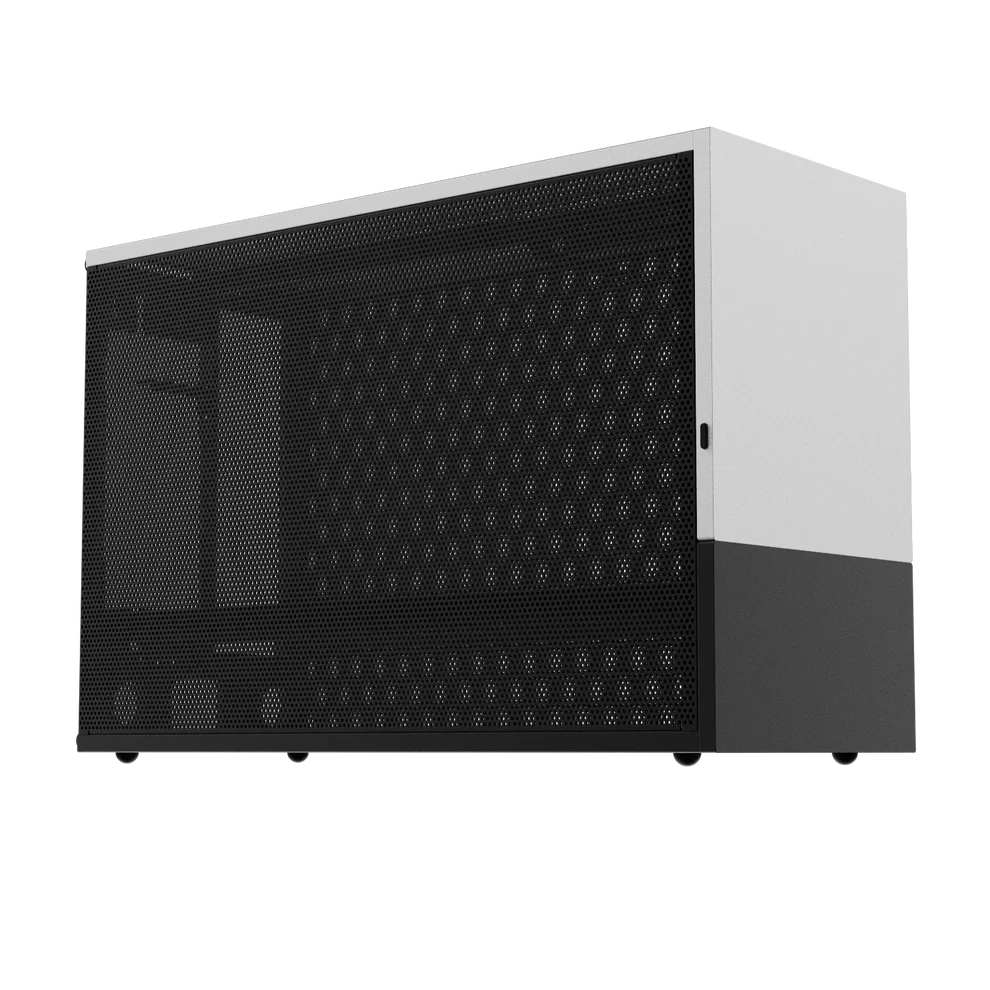

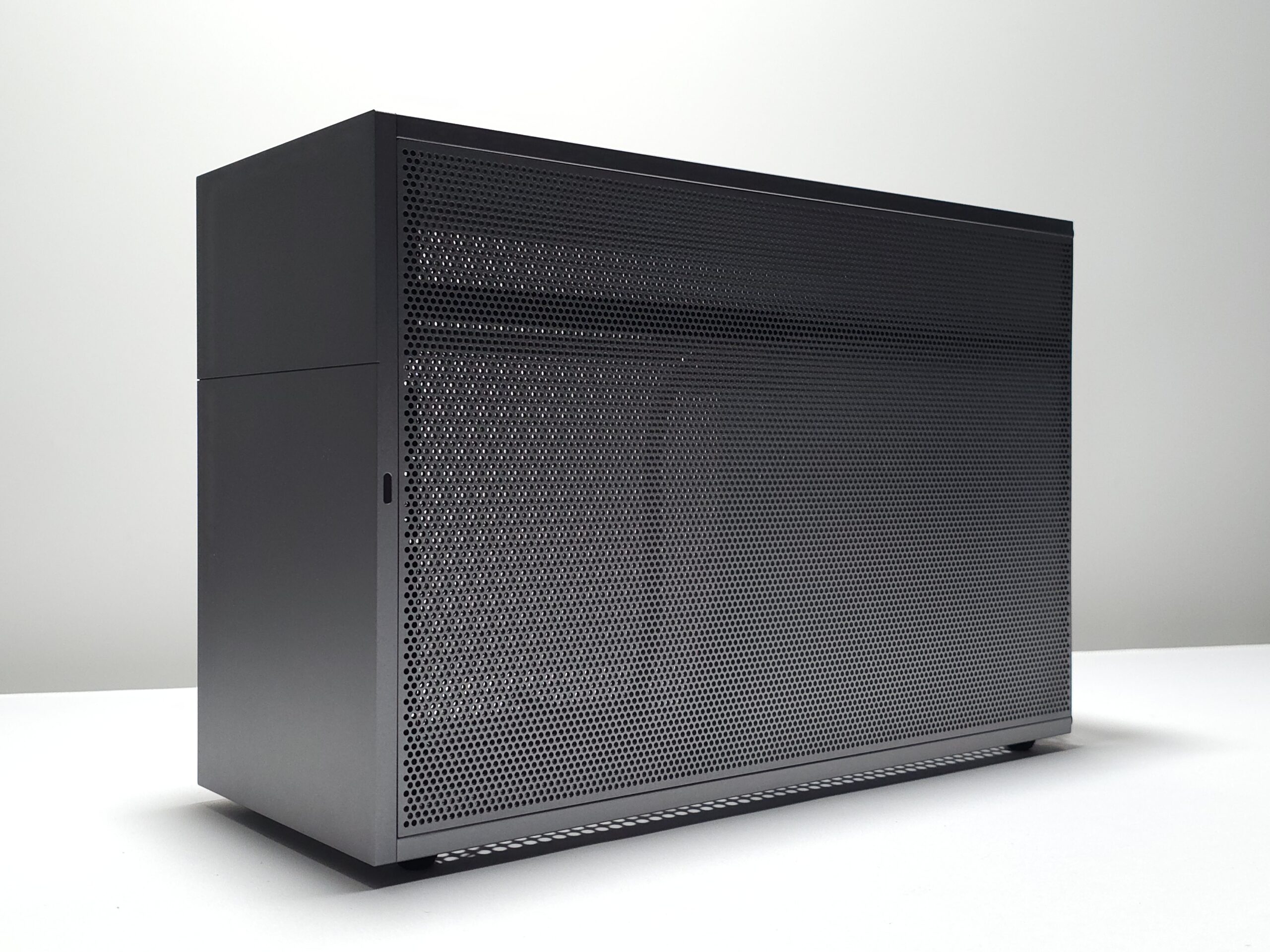

FORMD T1

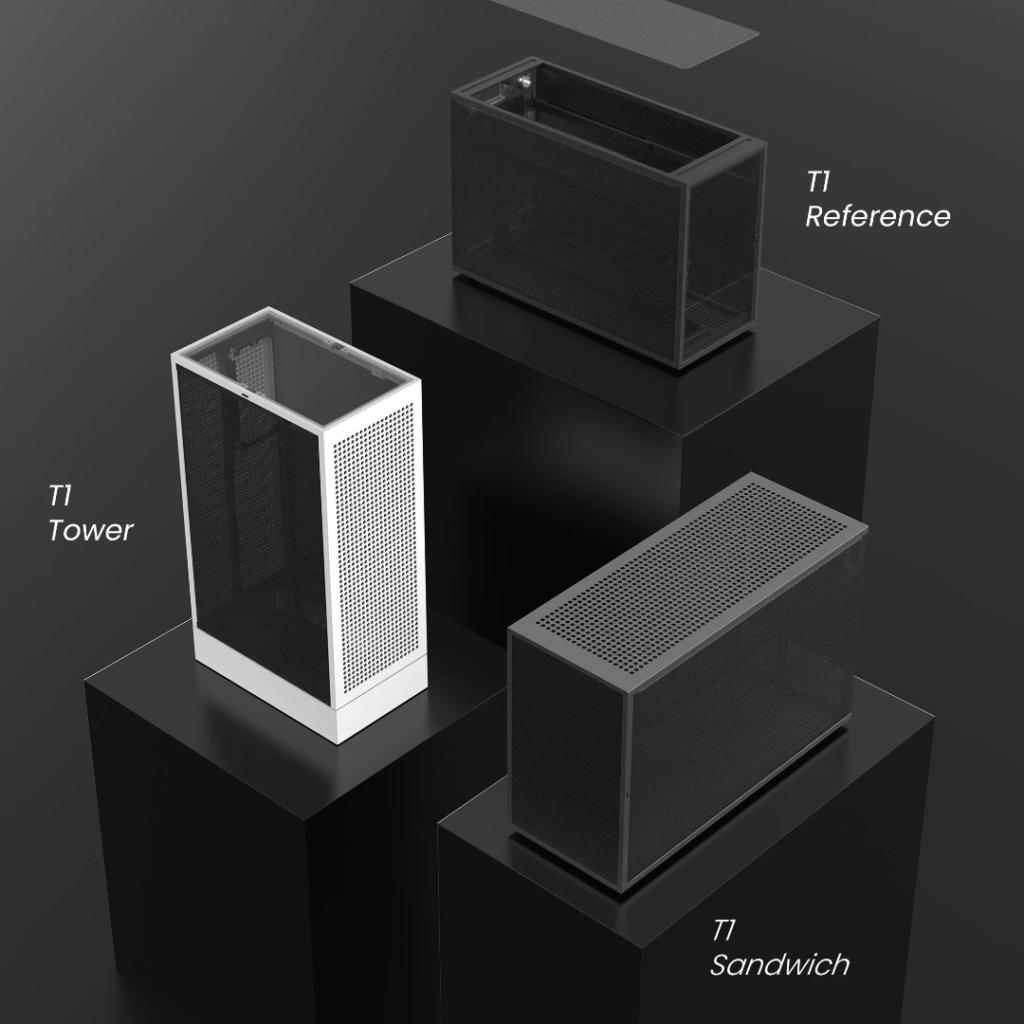

The FormD T1 is a modular Mini-ITX case under 10L in volume. FormD comes in two variants, reference and sandwich kit. Case pricing starts at US$195 for sandwich kit and is available in multiple colours. Optional accessories, include the T1 Essential Pack and Fittings Pack. Check the FormD webstore for more info.

SPECIFICATIONS

MODELFormD T1 v2.1 (Sandwich Kit)
OVERVIEWT1 – Sandwich Kit allows for better graphics card compatibility & more build configurations vs. reference kit.

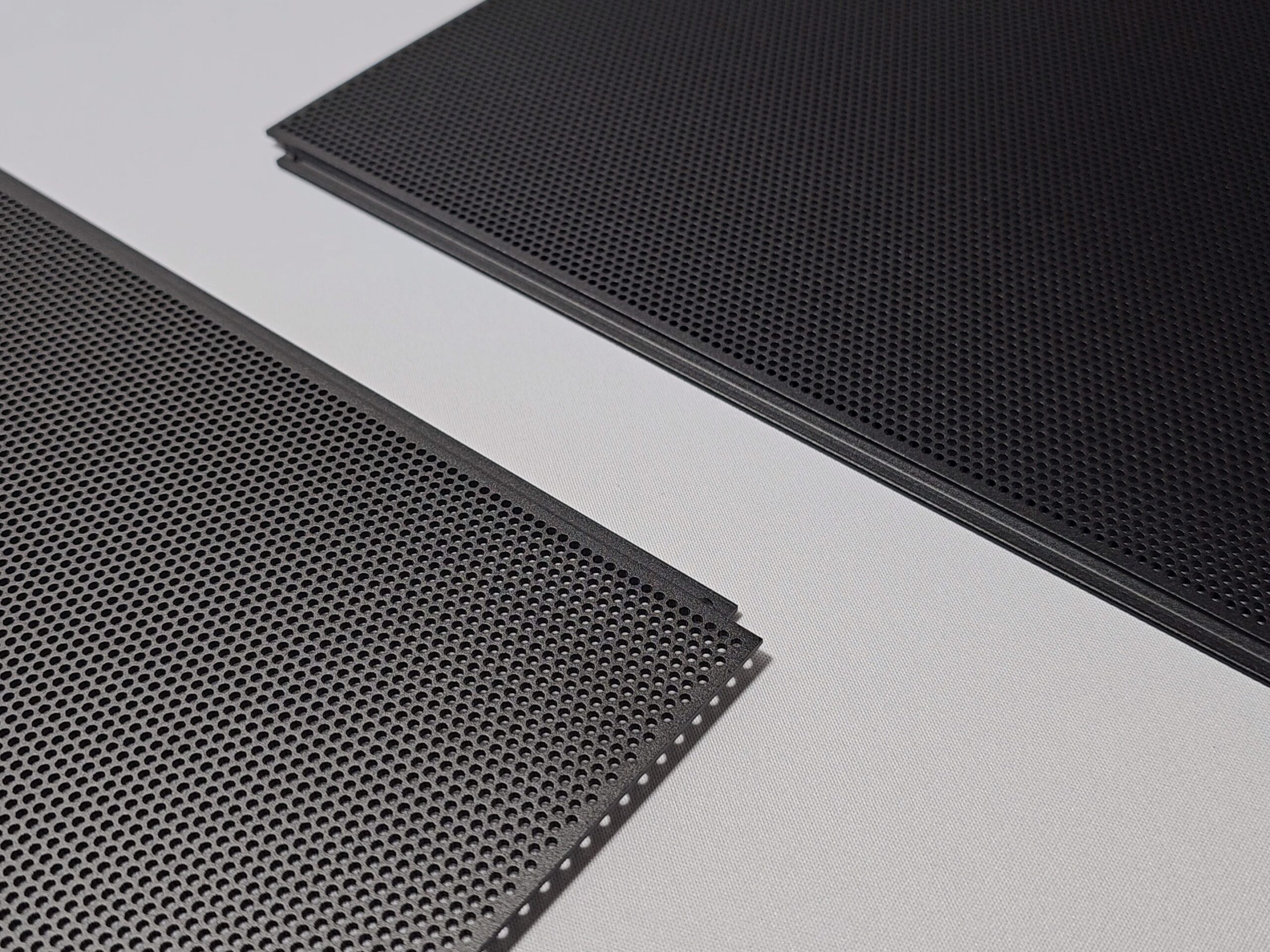

MATERIALS1.5~15mm CNC Aluminium (anodised)
1~2mm Steel (powder coated)
DIMENSIONS335×135×220mm (L×W×H)
VOLUME9.95 Litres
CASE I/OPower Button, USB-C (requires a separate kit)
MOTHERBOARD SUPPORTMini-ITX, Deep-ITX
COOLER COMPATIBILITY48mm max height with 3.25 slot GPU
53mm max height with 3 slot GPU
58mm max height with 2.75 slot GPU
63mm max height with 2.5 slot GPU
68mm max height with 2.25 slot GPU
73mm max height with 2 slot GPU
78mm max height with 1.75 slot GPU
83mm max height with 1.5 slot GPU
88mm max height with 1.25 slot GPU
93mm max height with 1 slot GPU
RISER CABLEPCIe 4.0 X16 (185mm)
GRAPHHICS CARD COMPATIBILITYGPUs no more than 140×325mm, 3.25-Slot thick. (Graphics card thickness depends on CPU cooler clearance)
CASE FANS SUPPORTEDTop: 2x 120mm
Side: 2x 120 / 140mm (based on components)
LIQUID COOLING SUPPORT1x 120mm
1x 240mm
2x 240mm (requires a separate kit)
1x 240mm + 1x 280mm (requires a separate kit)

Note: Dual radiator setups require a single slot GPU waterblock. Due to this GPU limitation and build complexity, this is not recommended for most users.

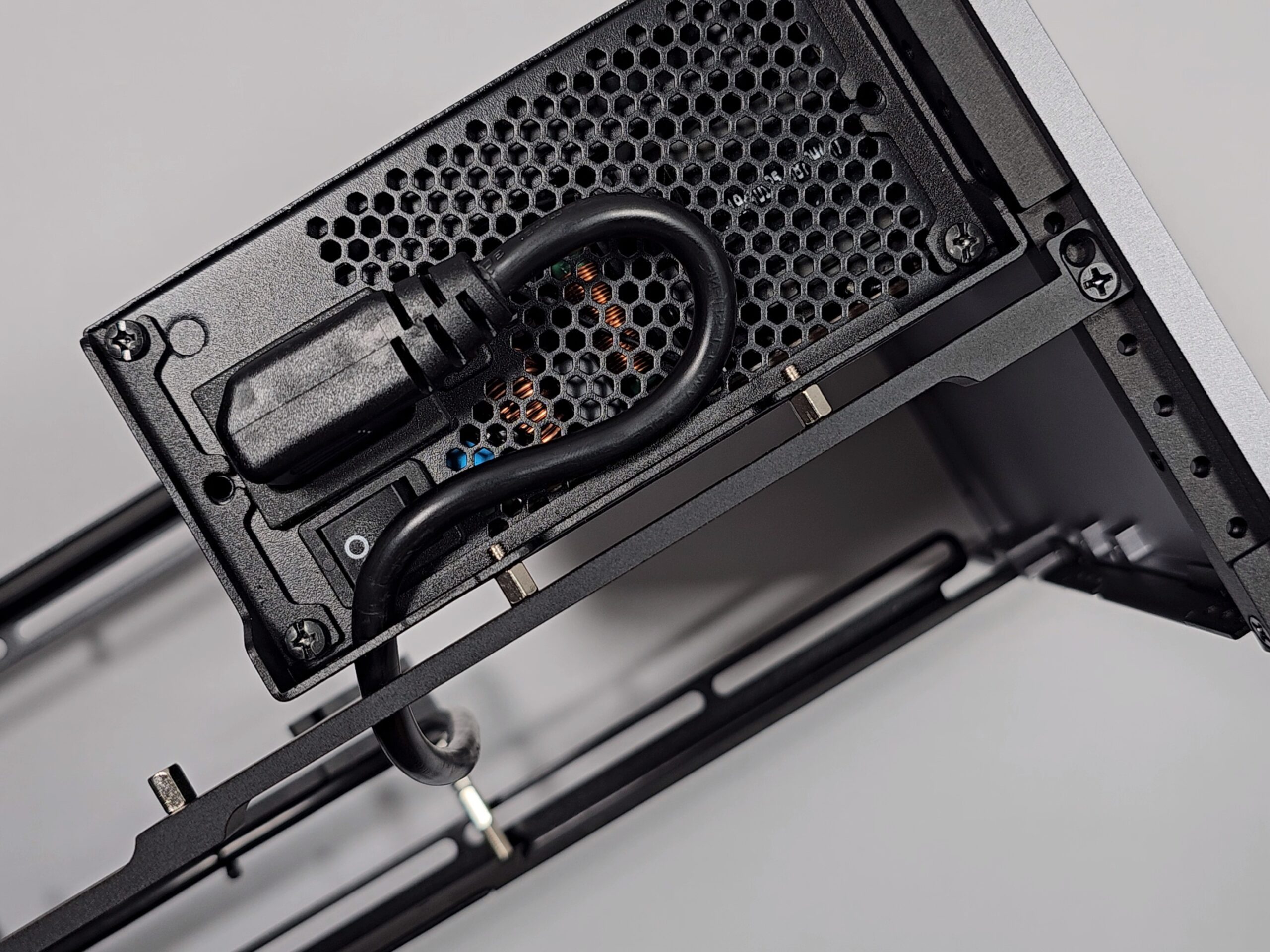

POWER SUPPLY SUPPORTSFX / SFX-L (SFX-L not recommended with AIO or custom liquid cooling)
CASE REVISIONSV2.1 Updates:
– Two extra screw holes were added for v2.1 side fan + radiator bracket brace. This feature was added for dual radiator builds where the second radiator is mounted to the GPU side.
– The power supply bracket mounting holes on this bar are now threaded. This allows the SFX bracket to install more securely.
– The rear panel M19 holes are now through-holes are no longer threaded.
– The GPU lock bars from v2.0 have been replaced with GPU lock brackets. These brackets allow for better GPU cable (DP, HDMI) clearance compared to the old bars.

FormD co-owners / designers 3FC & W360 have split operations, with each now operating their own respective websites. See the history of FormD.

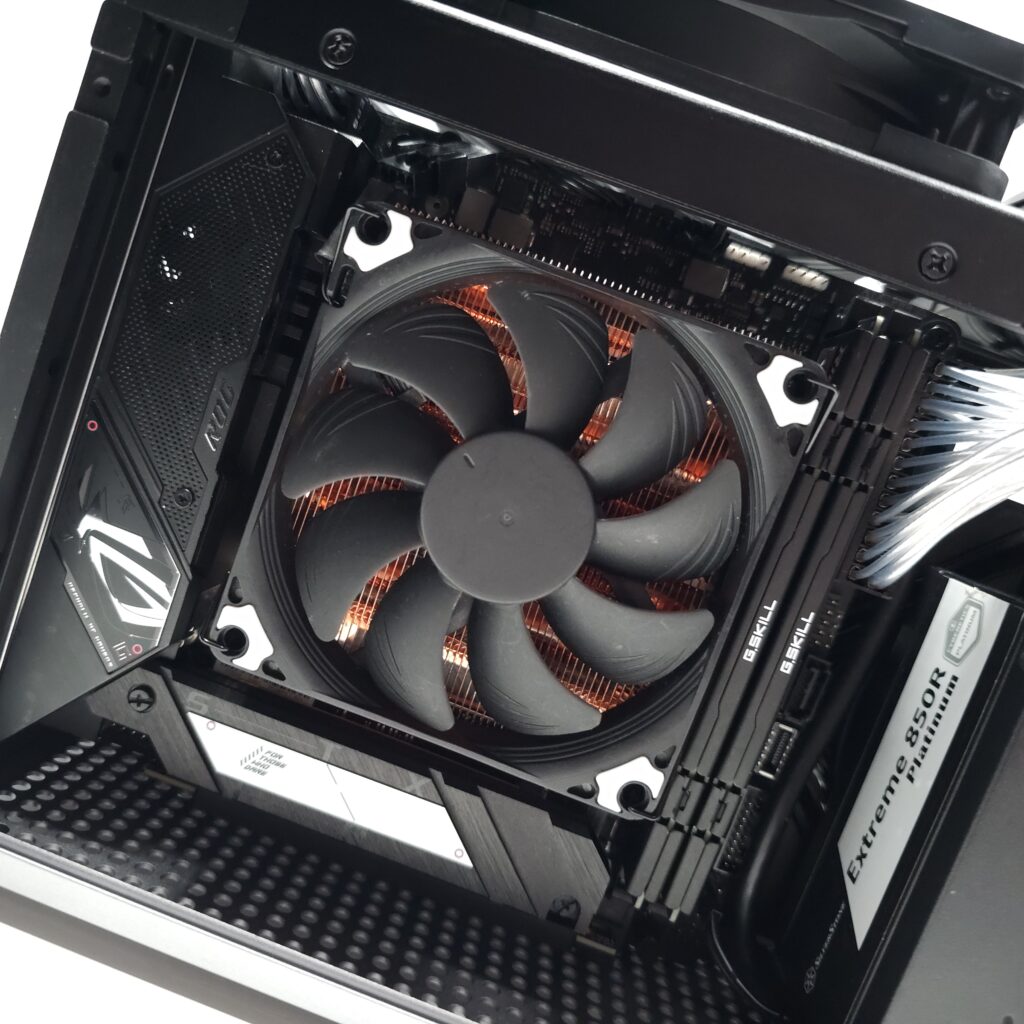

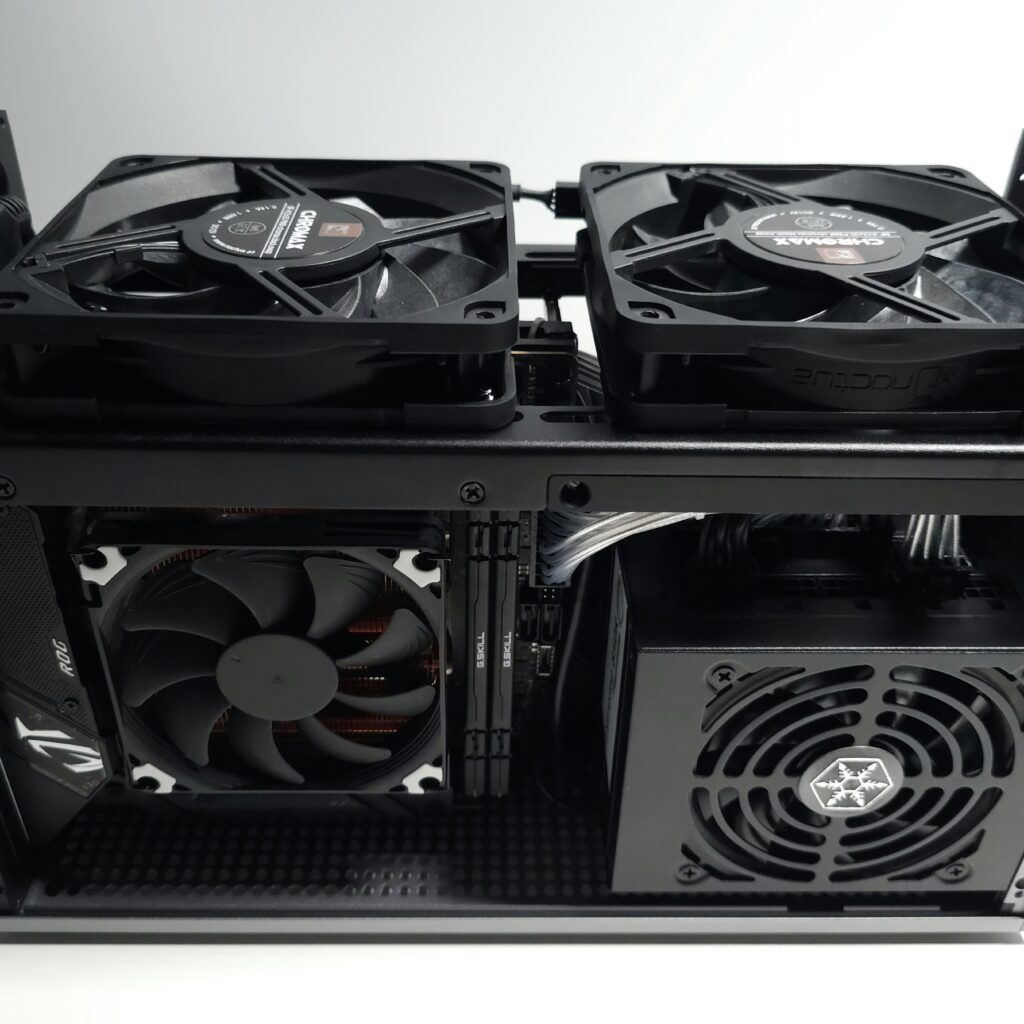

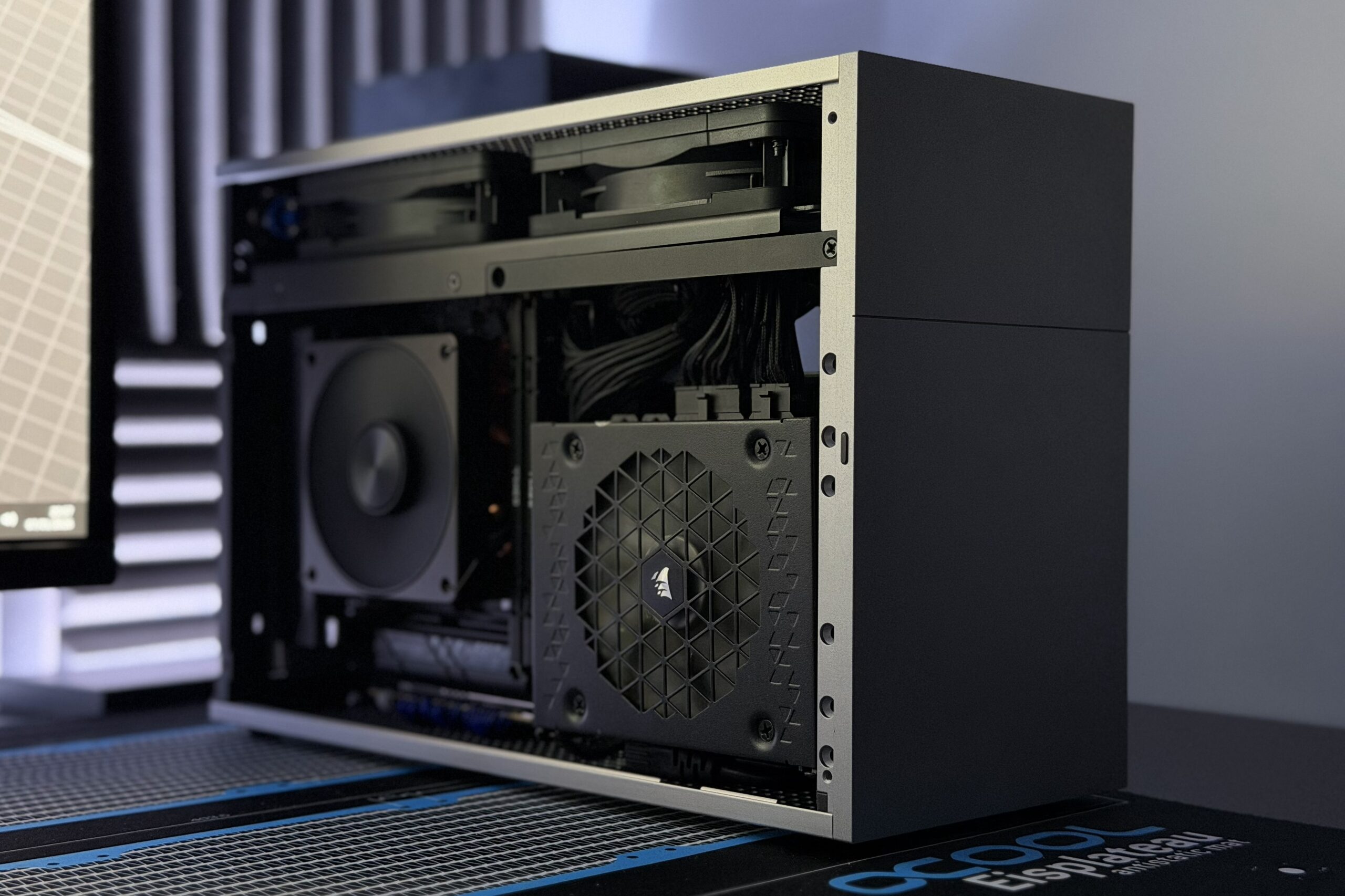

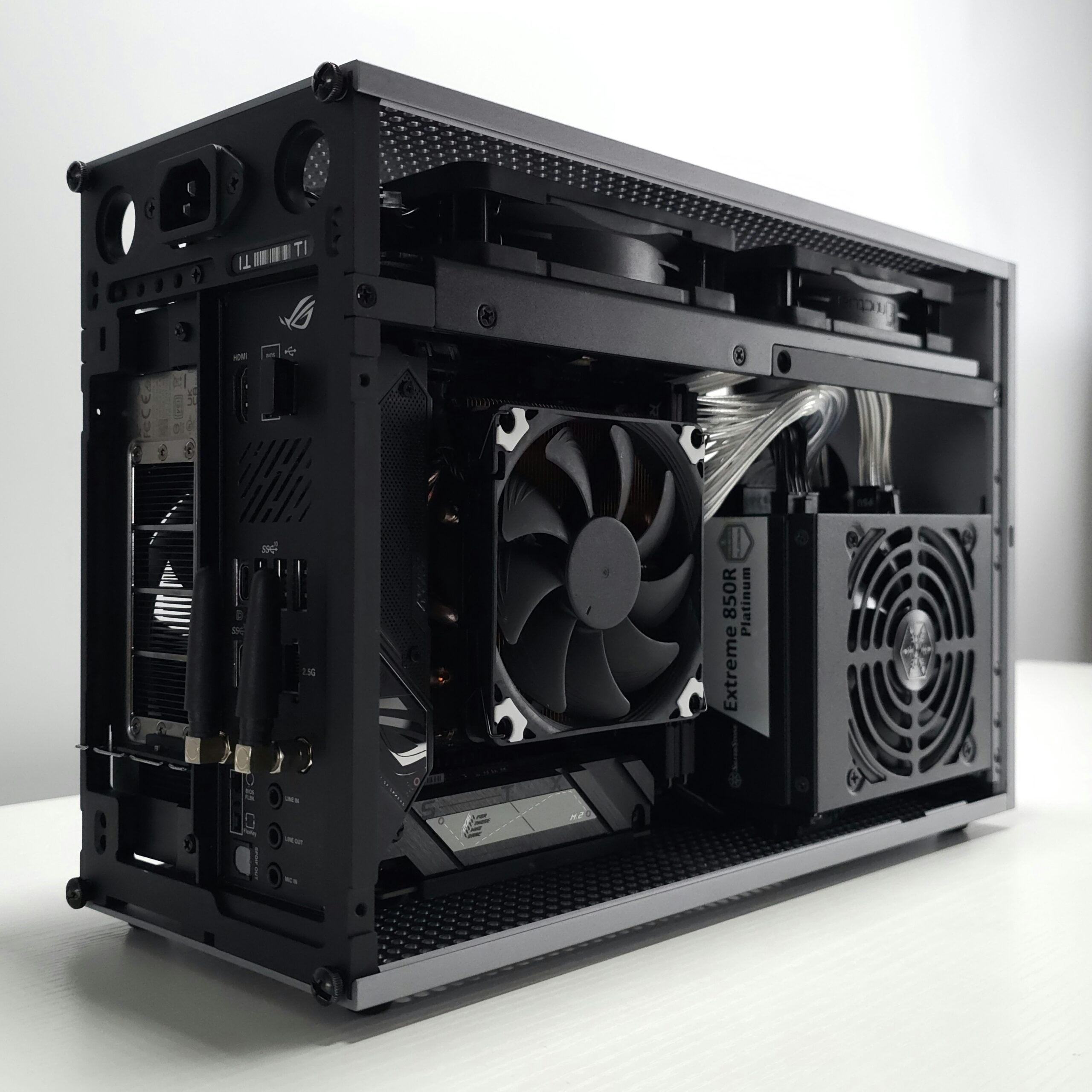

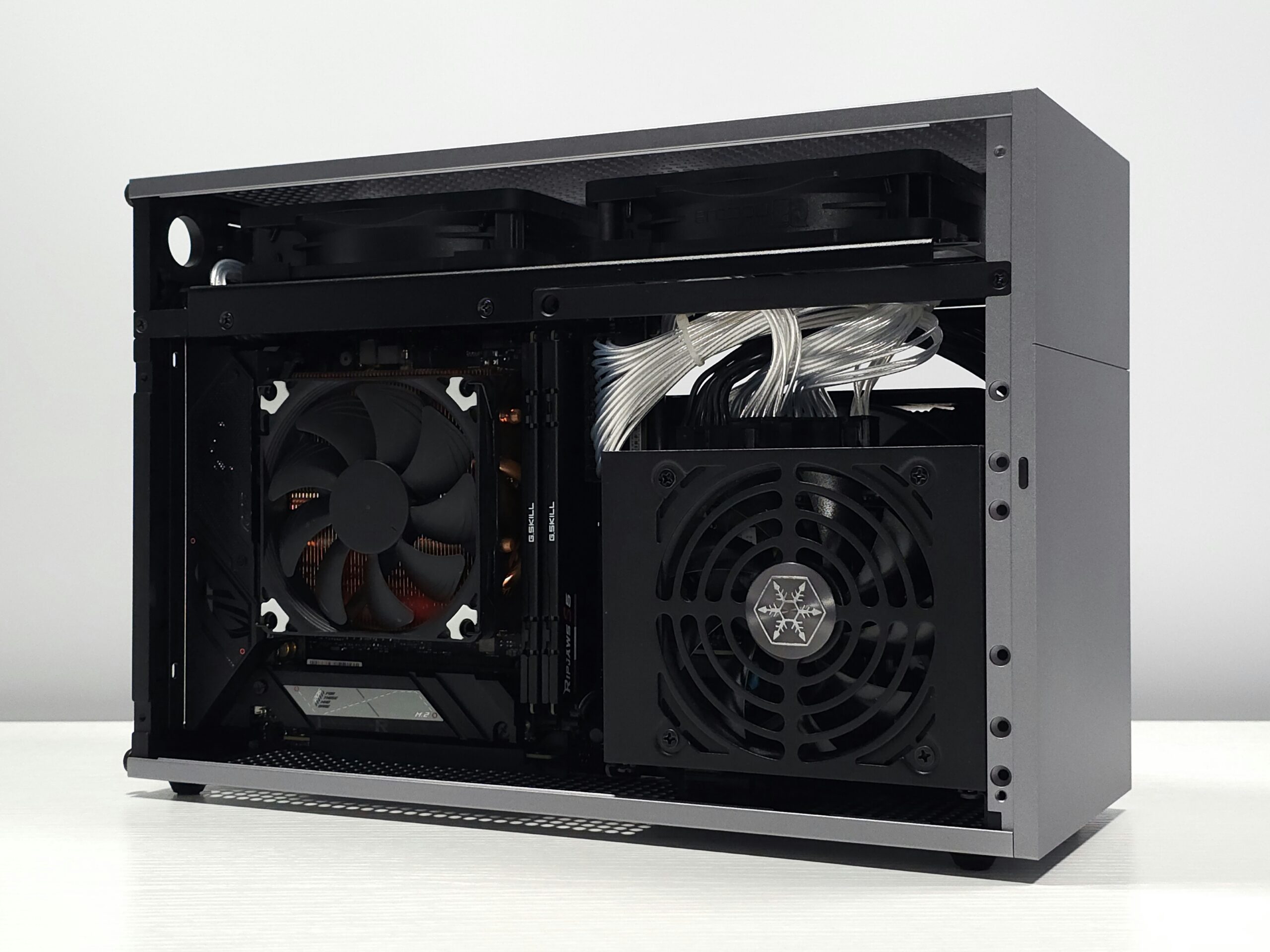

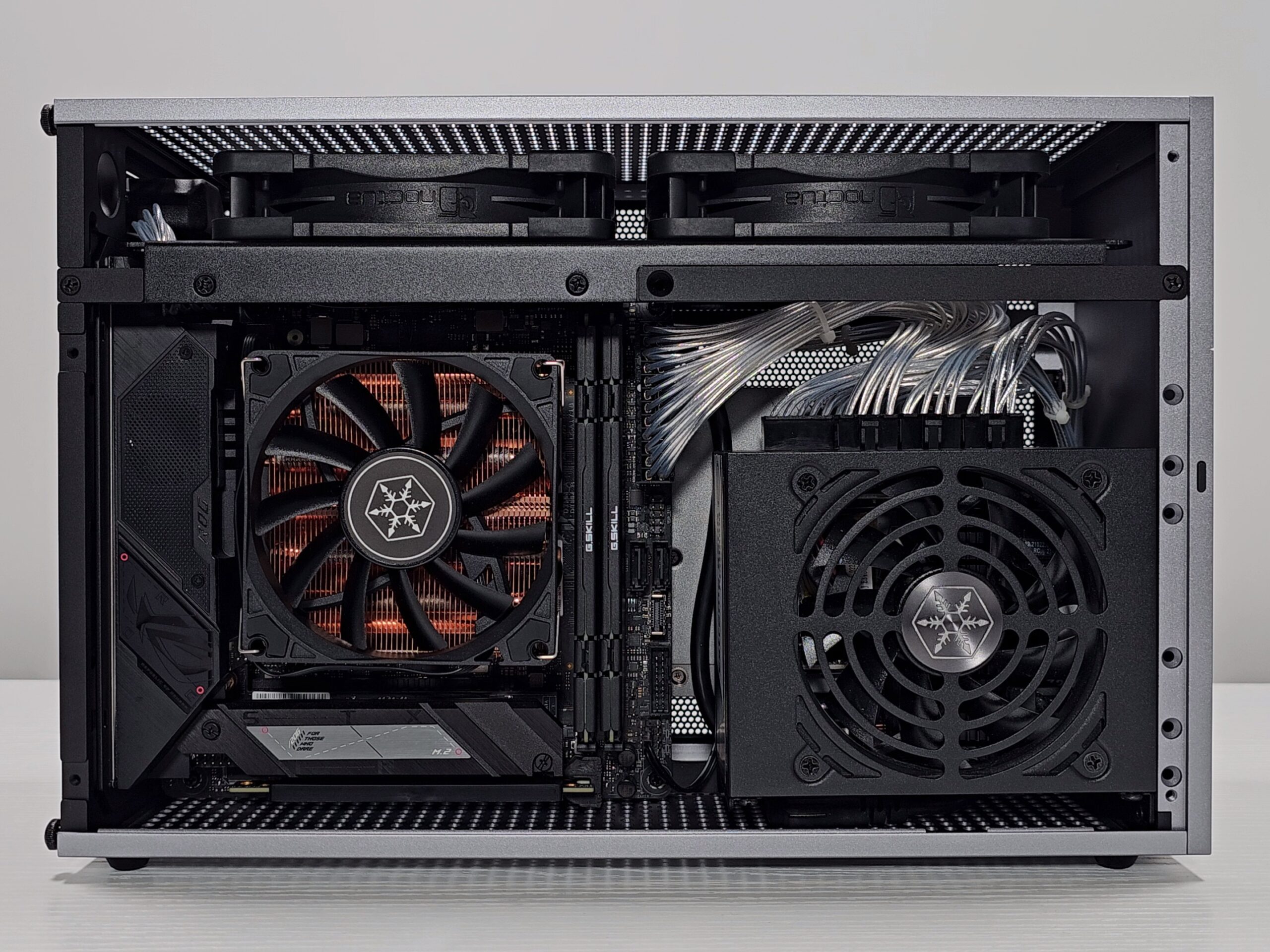

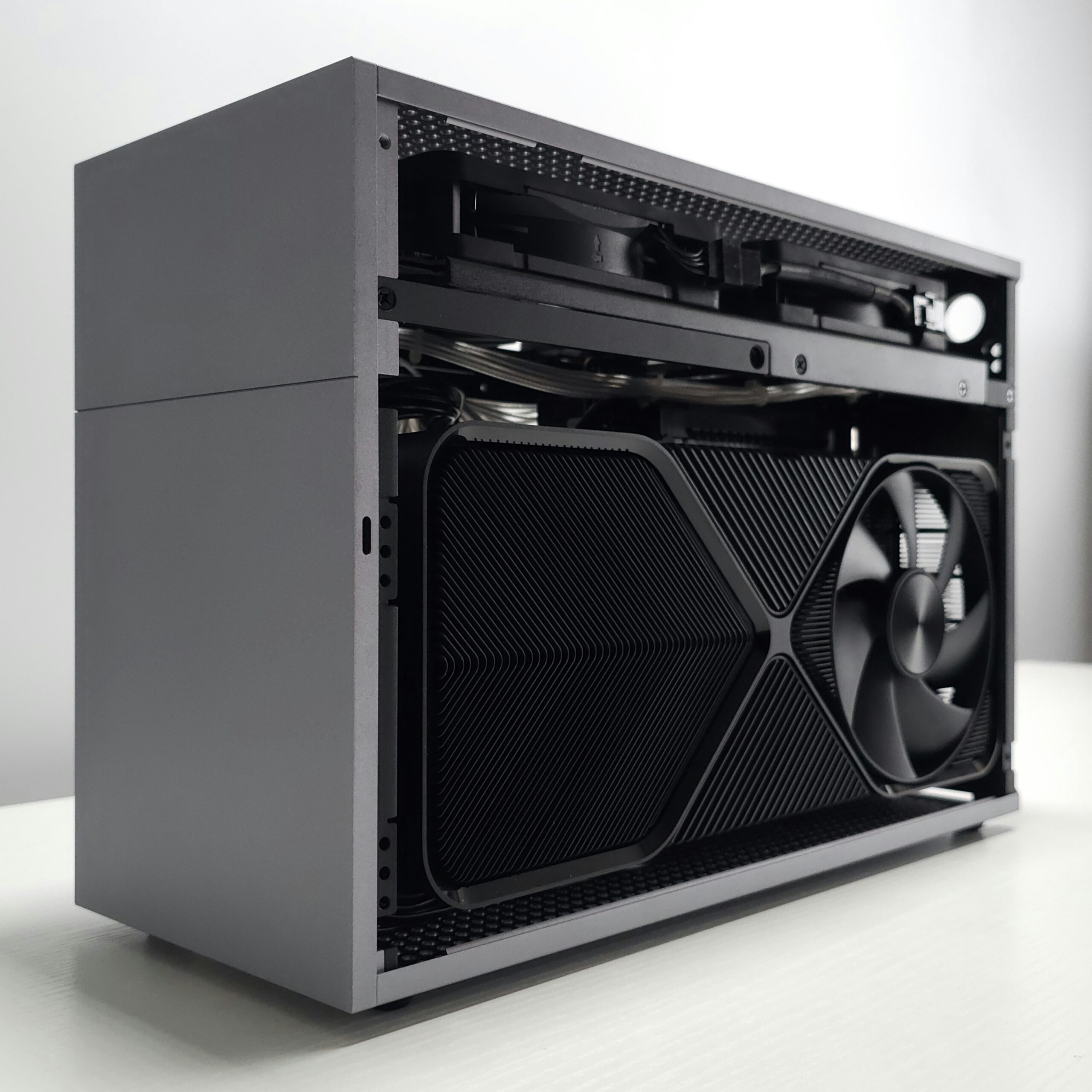

BUILD #1

MOTHERBOARDRog Strix B650E-I Gaming WiFi (paid link)
CPUR7 7800X3D (paid link)

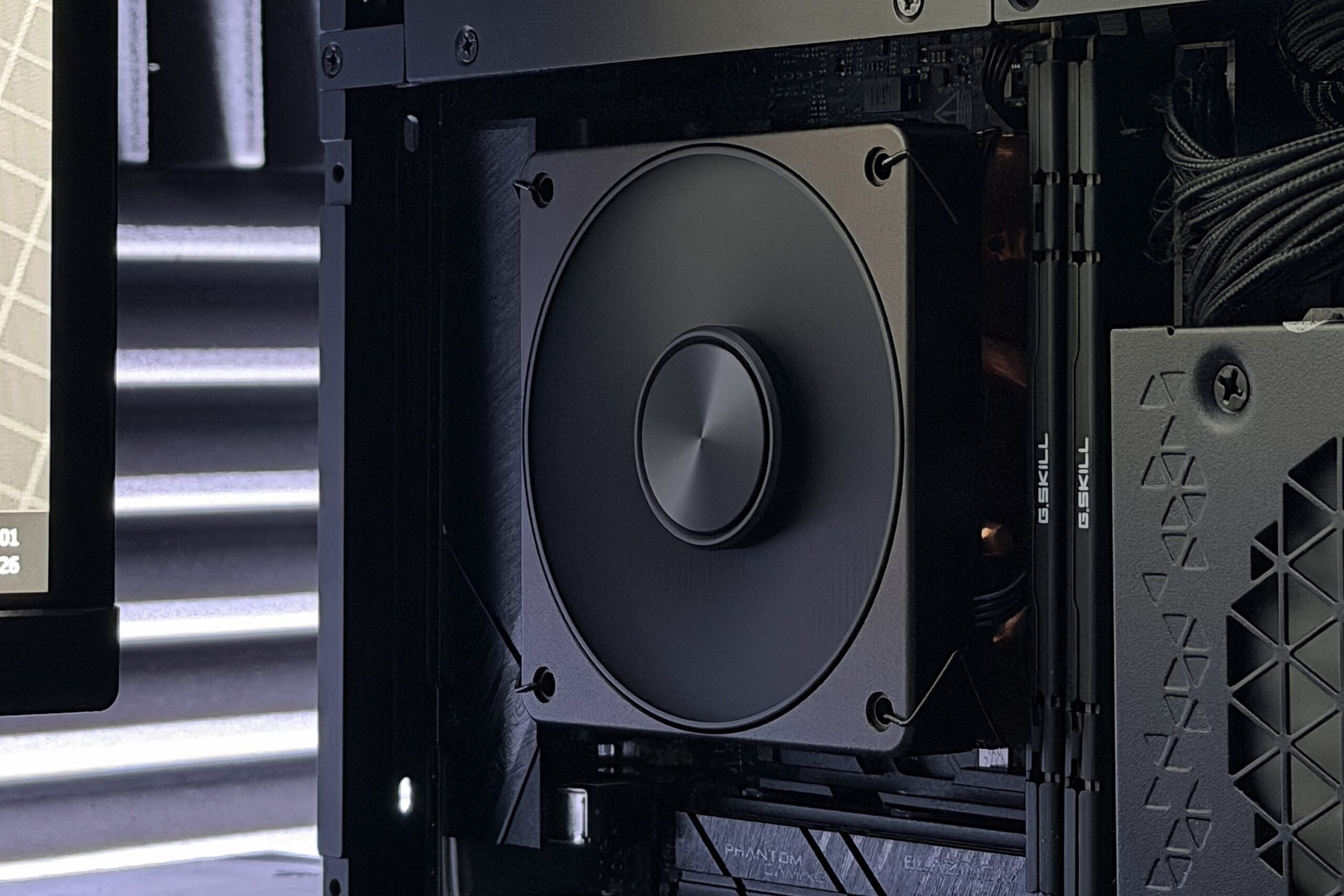

CPU COOLERAXP90-X47 FC + NF-A9x14 HS (paid links)
GPURTX 4080 Super FE (paid link)

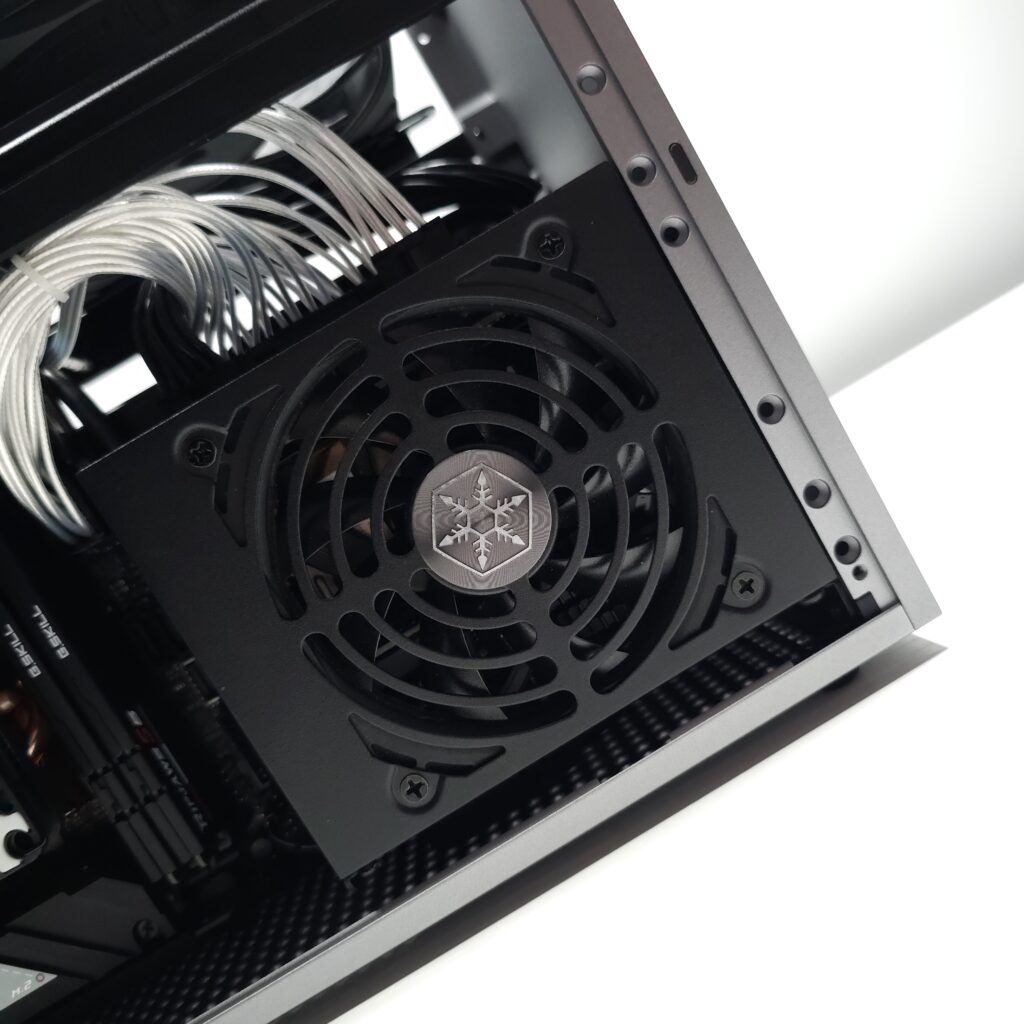

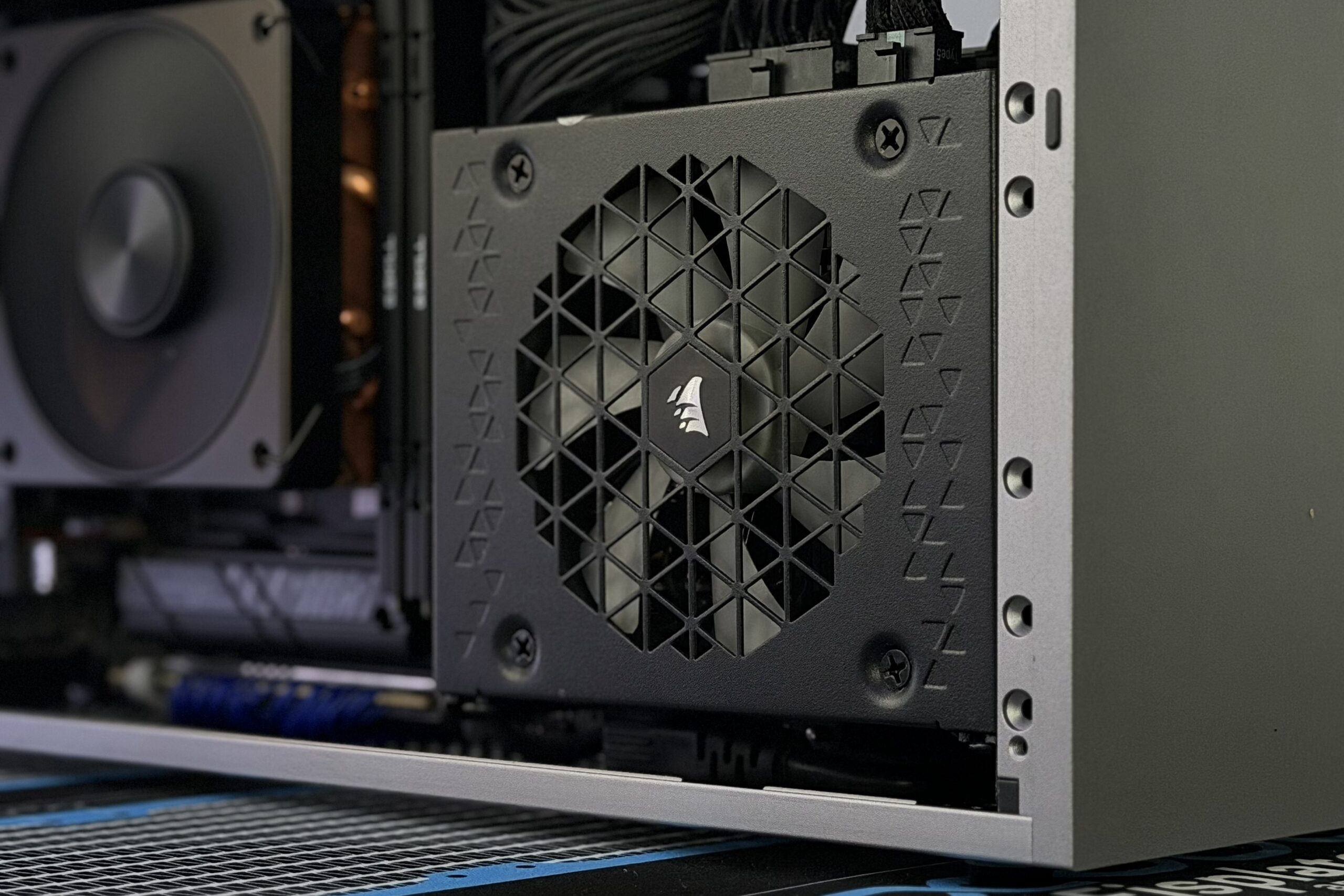

PSU Extreme 850R / Corsair SF750 (paid links)
CABLESUnsleeved (CableMod)
RAM32GB Gskill S5 DDR5, 6000MHz, CL30 (paid link)
STORAGE1TB + 2TB NVME (paid links)

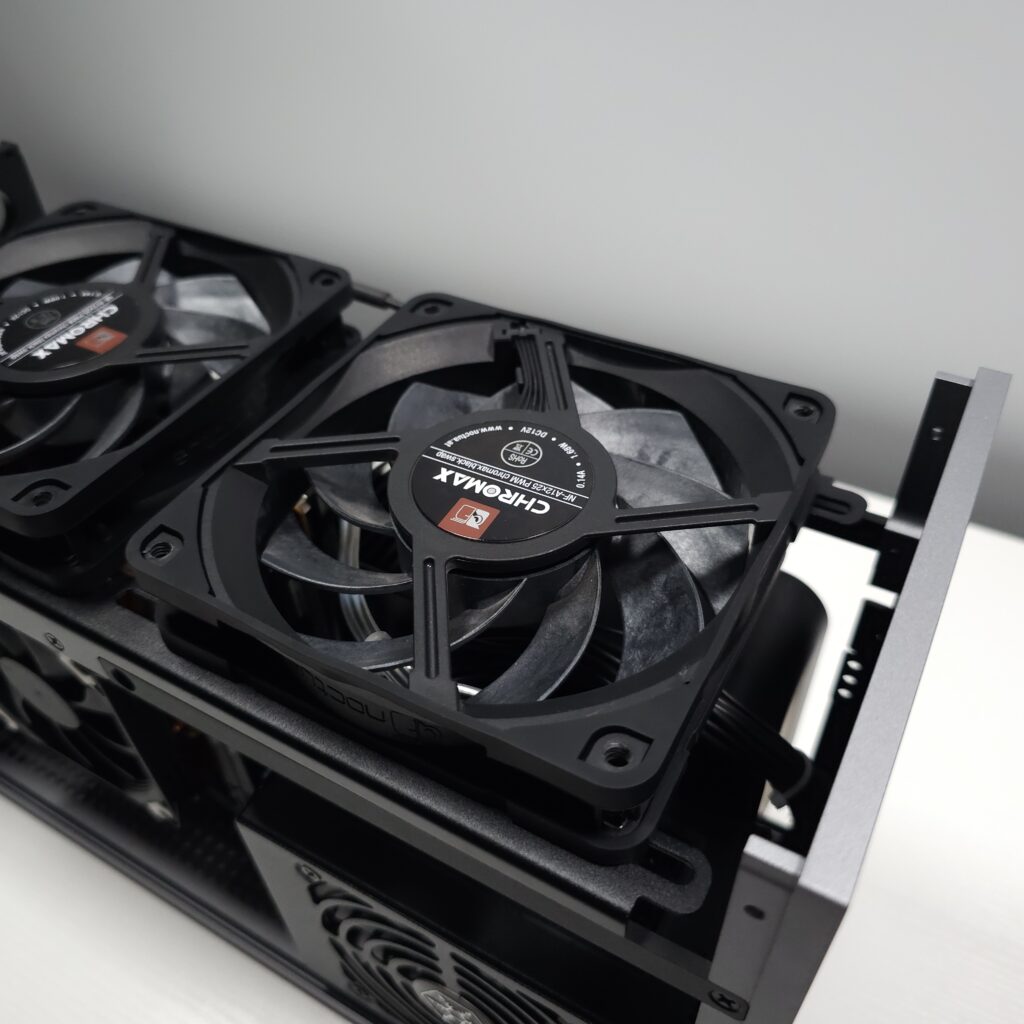

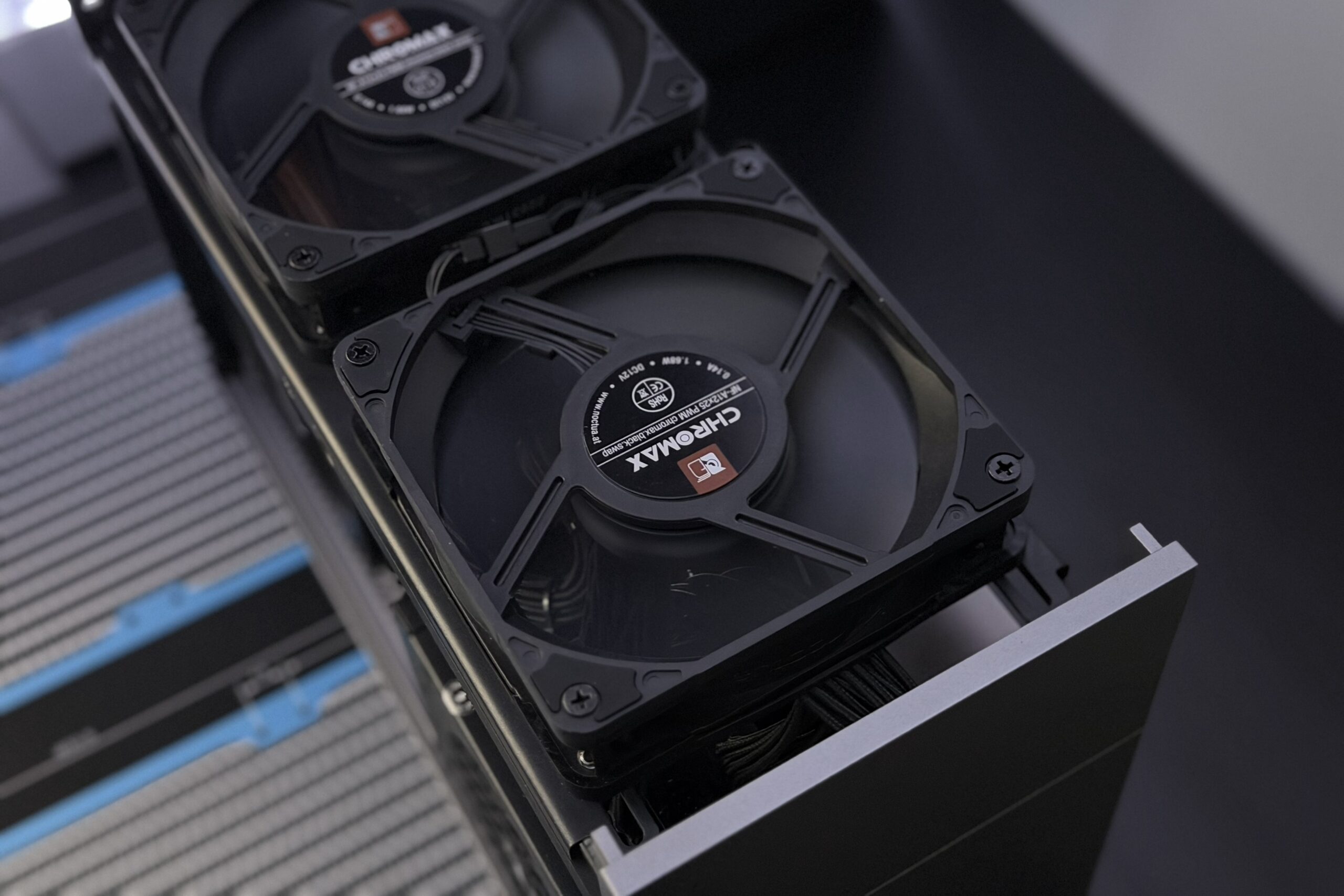

CASE FANS2x NF-A12x25 chromax.Black (paid link)

For purely gaming focused build with something along the lines of 7800X3D. Air cooling is overall winner. There is less restriction on GPU and no GPU heat exchanging on CPU side, unlike with an AIO solution.

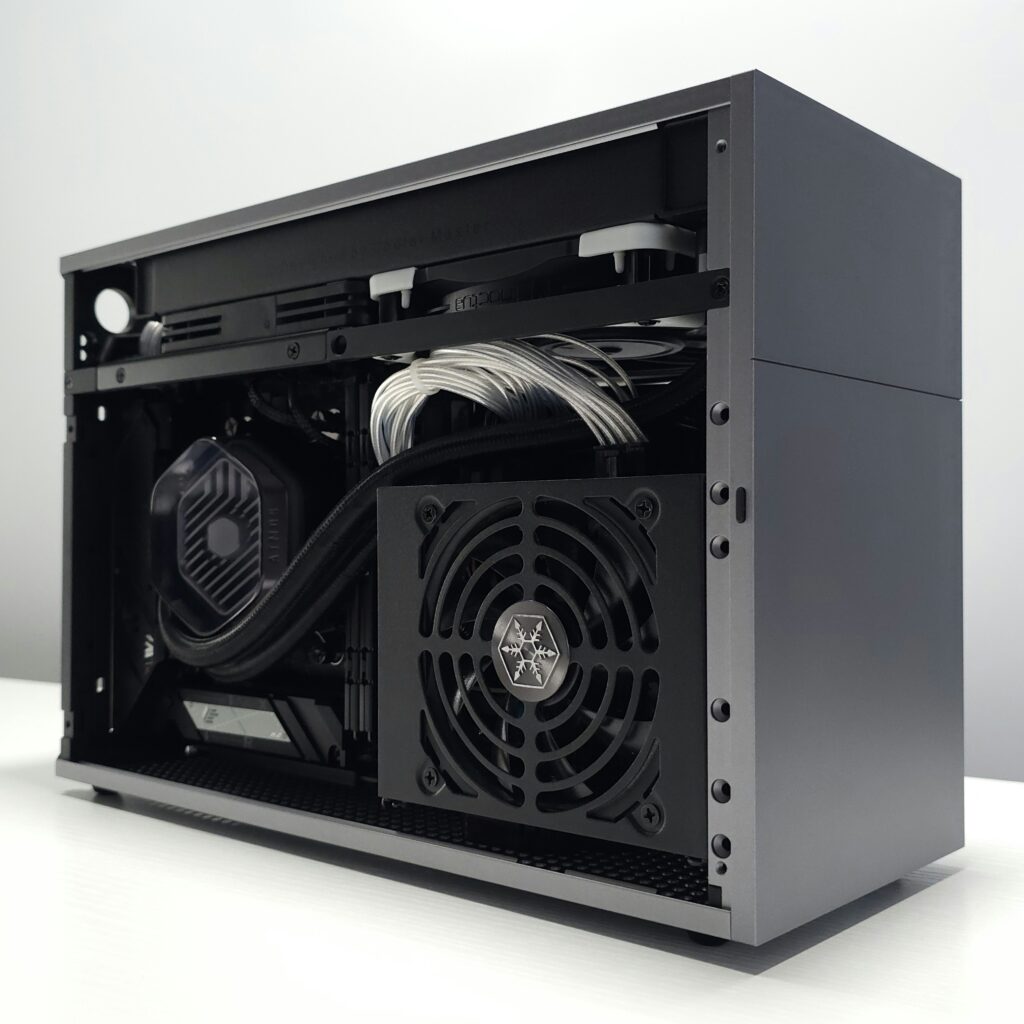

BUILD #2

MOTHERBOARDRog Strix B650E-I Gaming WiFi (paid link)
CPUR7 7800X3D (paid link)
CPU COOLERCoolerMaster Atmos 240 (paid link)
GPURTX 4080 Super FE (paid link)
PSU Extreme 850R / Corsair SF750 (paid links)
CABLESUnsleeved (CableMod)
RAM32GB Gskill S5 DDR5, 6000MHz, CL30 (paid link)
STORAGE1TB + 2TB NVME (paid links)
CASE FANSNF-A12x25 chromax.Black + NF-A12x15 chromax.Black (paid link)

For those looking to use a more powerful CPU, such as 7950X3D or 13900K. AIO will certainly be the way to go.

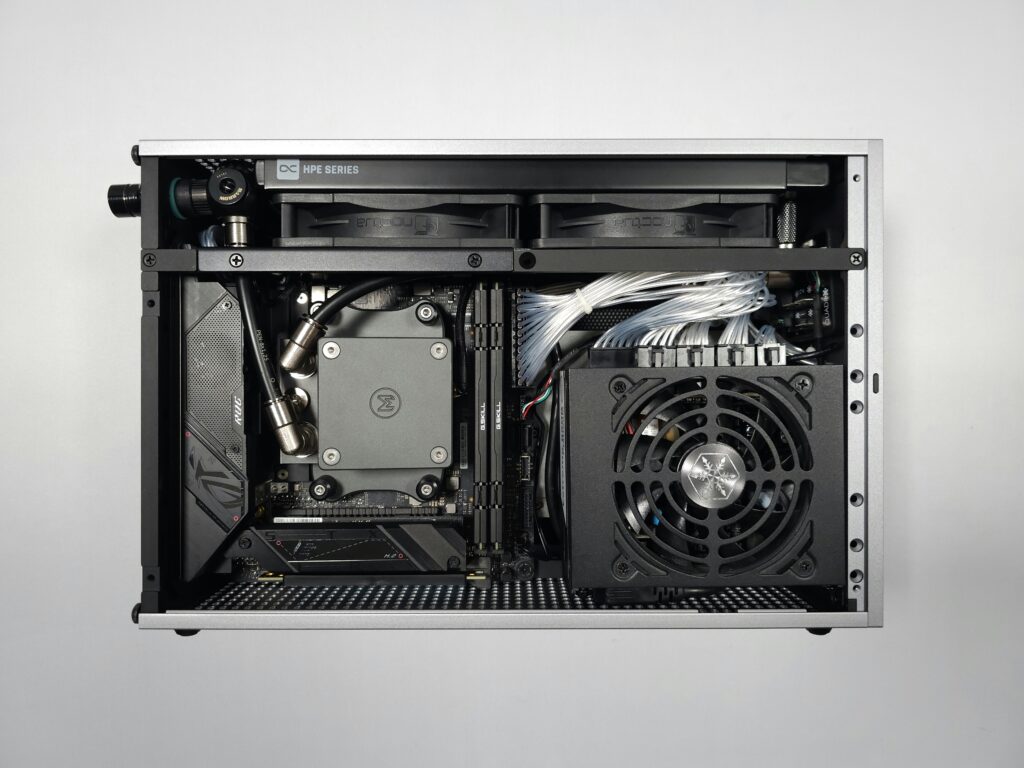

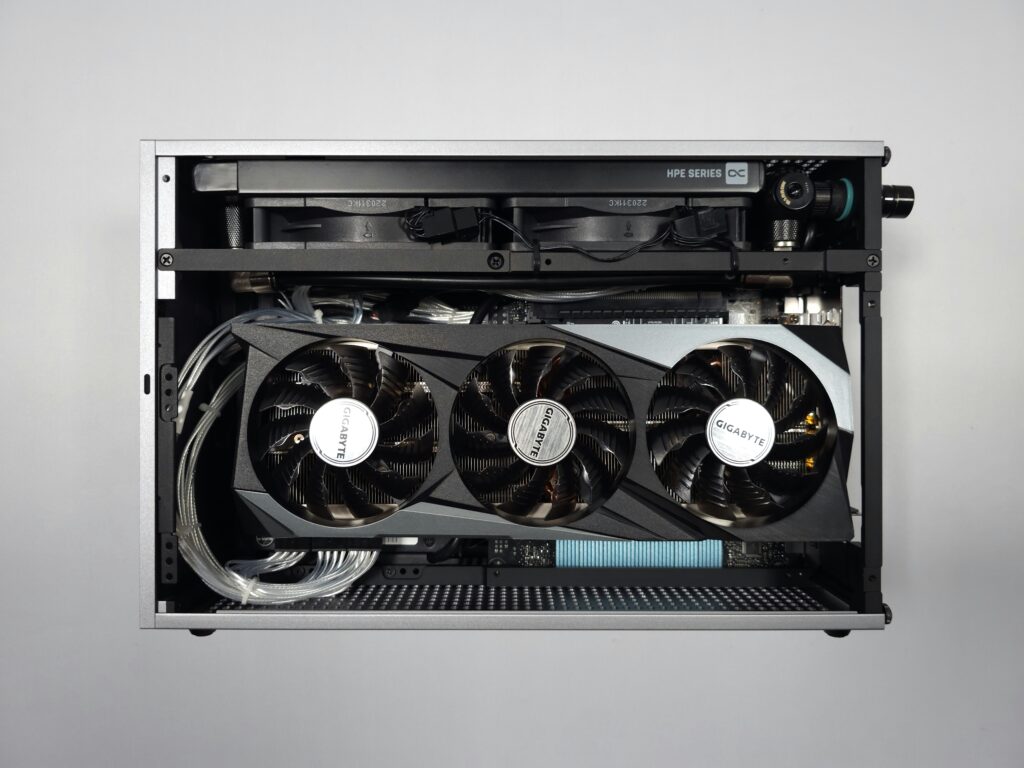

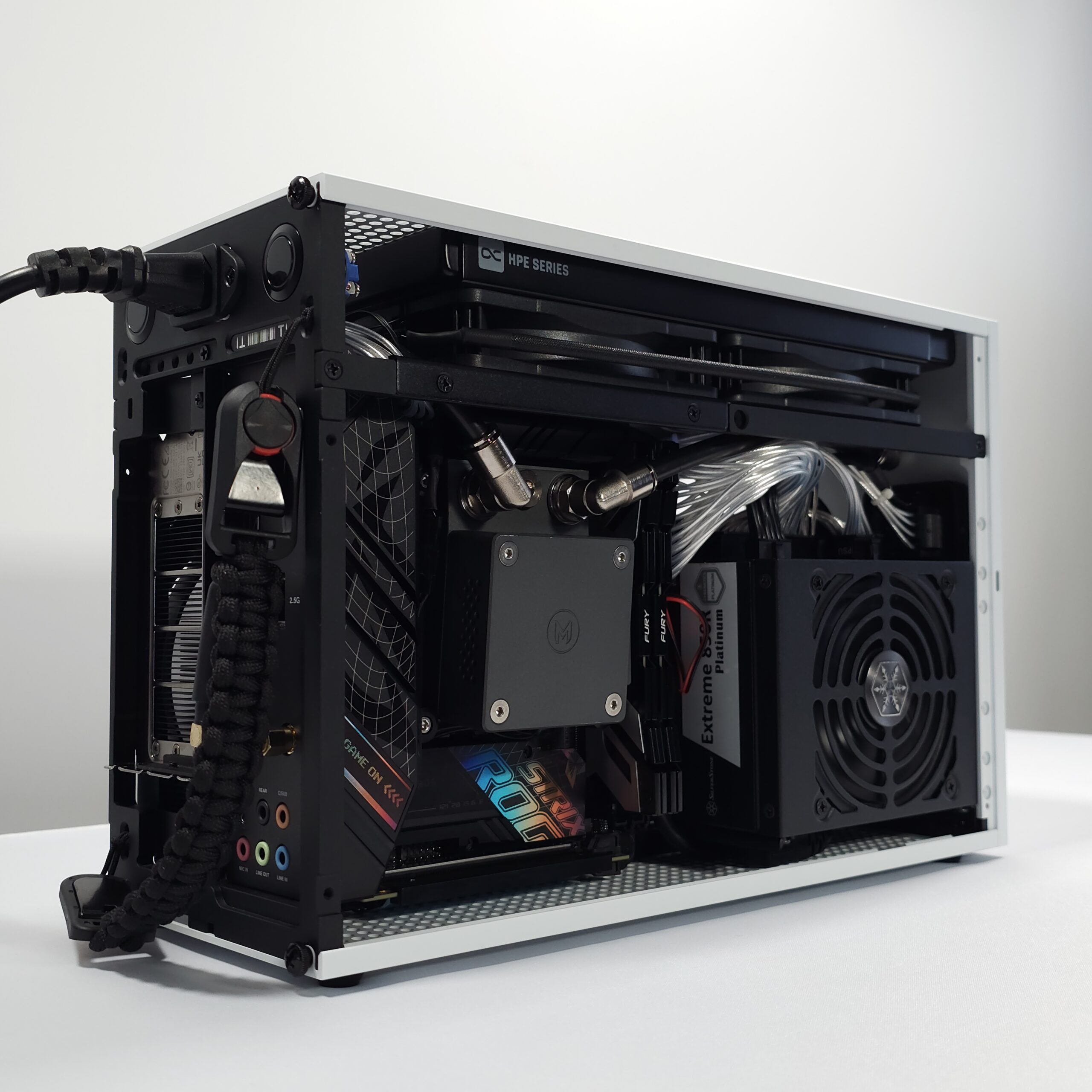

BUILD #3

MOTHERBOARDRog Strix B650E-I Gaming WiFi (paid link)
CPUR7 7800X3D (paid link)
CPU COOLERModultra LOBO + EK DDC 4.2 (paid link)
GPUGigabyte RX 6900XT Gaming OC (paid link)
PSU Extreme 850R / Corsair SF750 (paid links)
CABLESSFF Cables by CableMod
RAM32GB Gskill S5 DDR5, 6000MHz, CL30 (paid link)
STORAGE1TB + 2TB NVME (paid links)

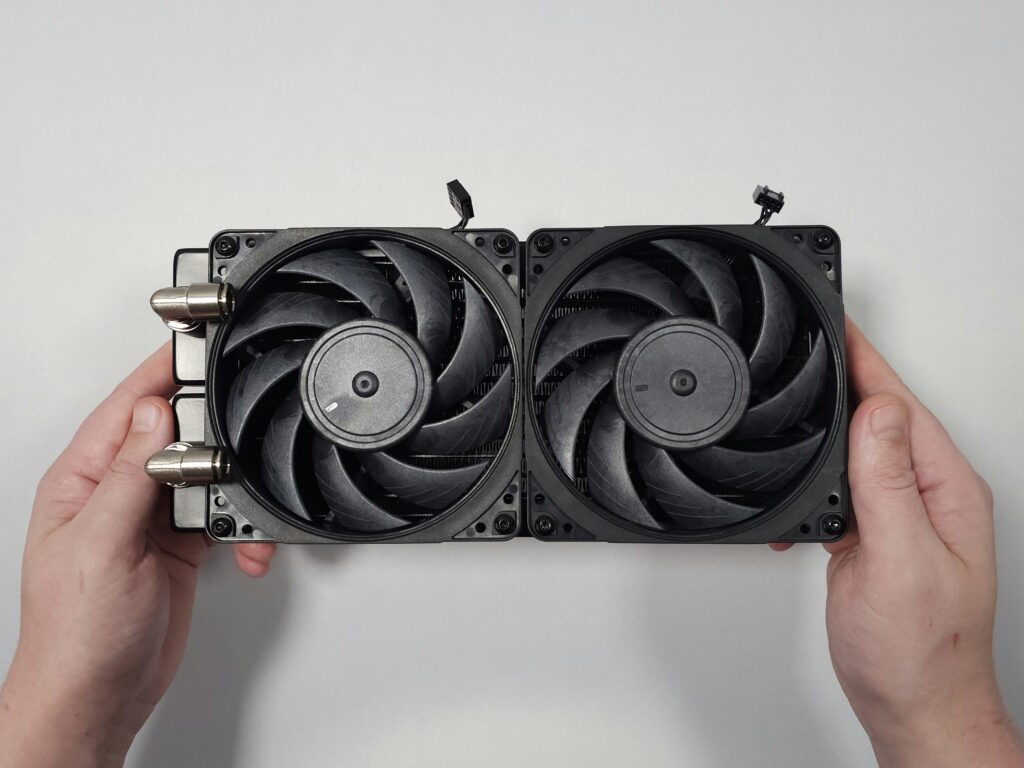

RADIATORSAlphacool 240 ST20 HPE (paid link)
FITTINGS– 5x FESTO NPQH-L-G14-Q8-P10,
– 1x FESTO
NPQH-DK-G14-Q8-P10,
2x Alphacool 20mm Extention Fittings,
1x
Alphacool 10mm Extension Fitting (paid links)

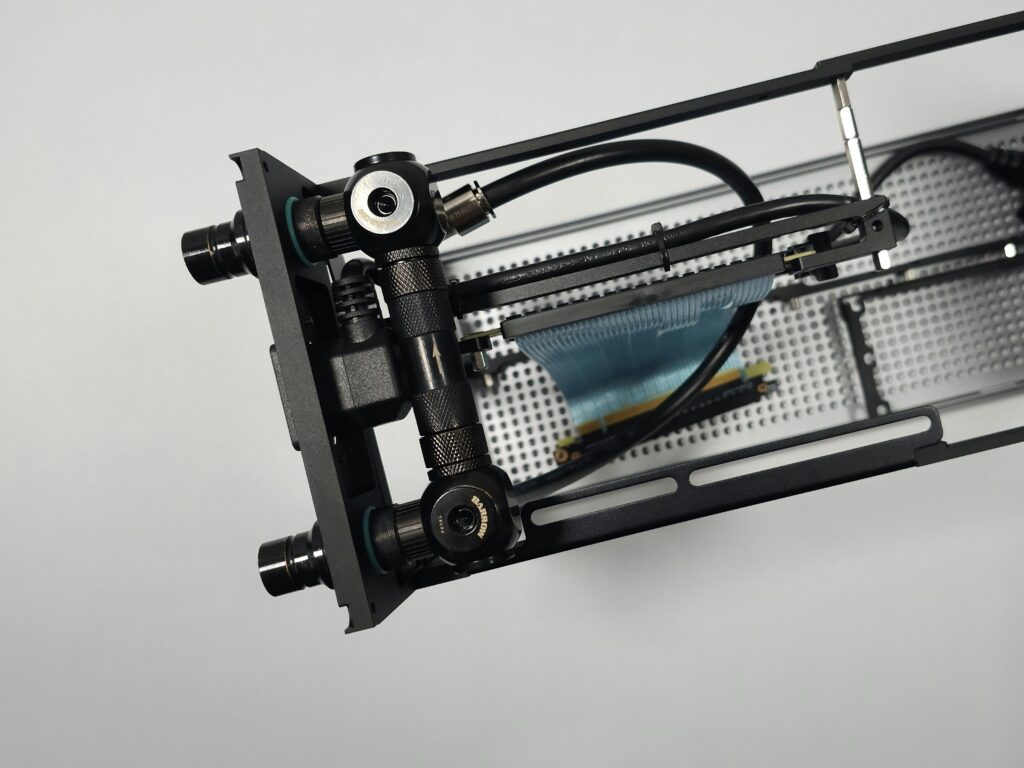

REAR QDC ASSEMBLY2x Alphacool Eiszapfen QDC kits
– 2x Barrow G1/4″ 5-Way Ball Fitting
– 4x Barrow G1/4″ Hex Blank
– 2x EK-QT Micro Ext MM 7
– 1x Alphacool Check Valve
– 2x Alphacool Double Nippel Rotary
– Barrow G1/4 – 10k Temperature Sensor
– 8x Alphacool Fitting O-Rings (included with Alphacool fittings)
TUBING 2M FESTO PUN-H-8X1,25-SW (197392)
CASE FANS2x NF-A12x25 chromax.Black (paid link)

We encountered a compatible issue between the T1 and our LOBO CPU waterblock. The LOBO mounting screws protruded too far through the motherboard backplate. This can pierce and damage the riser cable as it did with ours. Modultra has confirmed this issue with some earlier LOBO units and the current revision uses shorter mounting screws at 31.75mm. You’ll need a custom GPU side radiator bracket or cable ties when using rear QDC assemblies, due to clearance issues. FormD is working on a solution. We found zip-tying through the Noctua fans and around the case struts works very well in meantime.

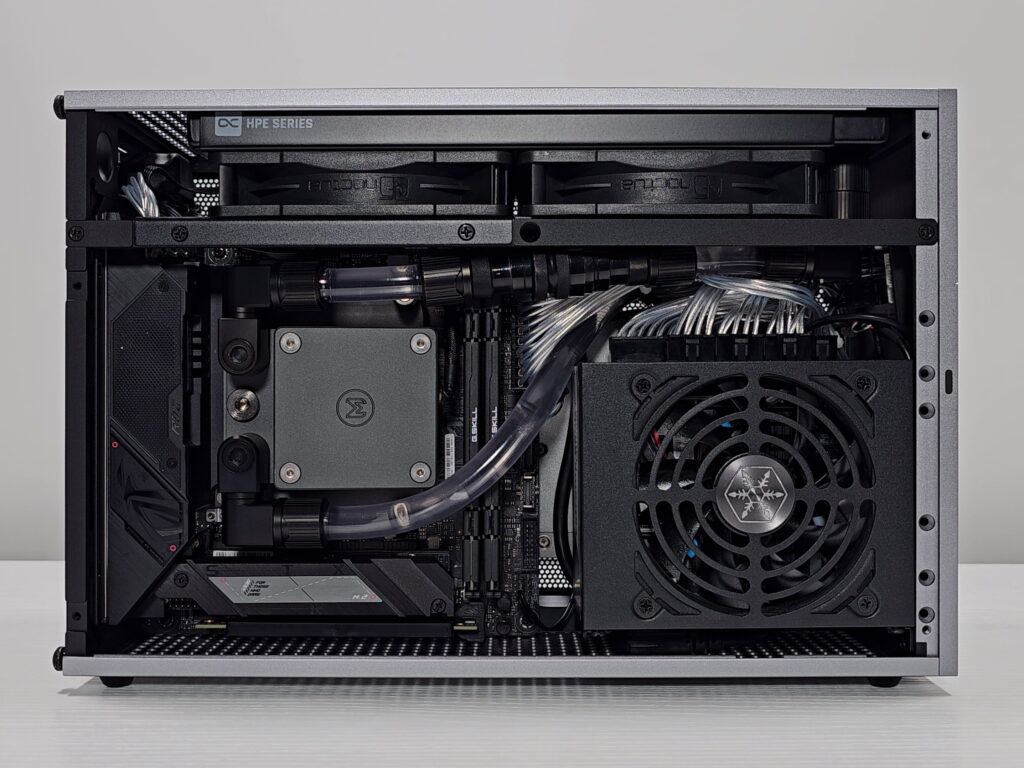

BUILD #4

MOTHERBOARDRog Strix B650E-I Gaming WiFi (paid link)
CPUR7 7800X3D (paid link)

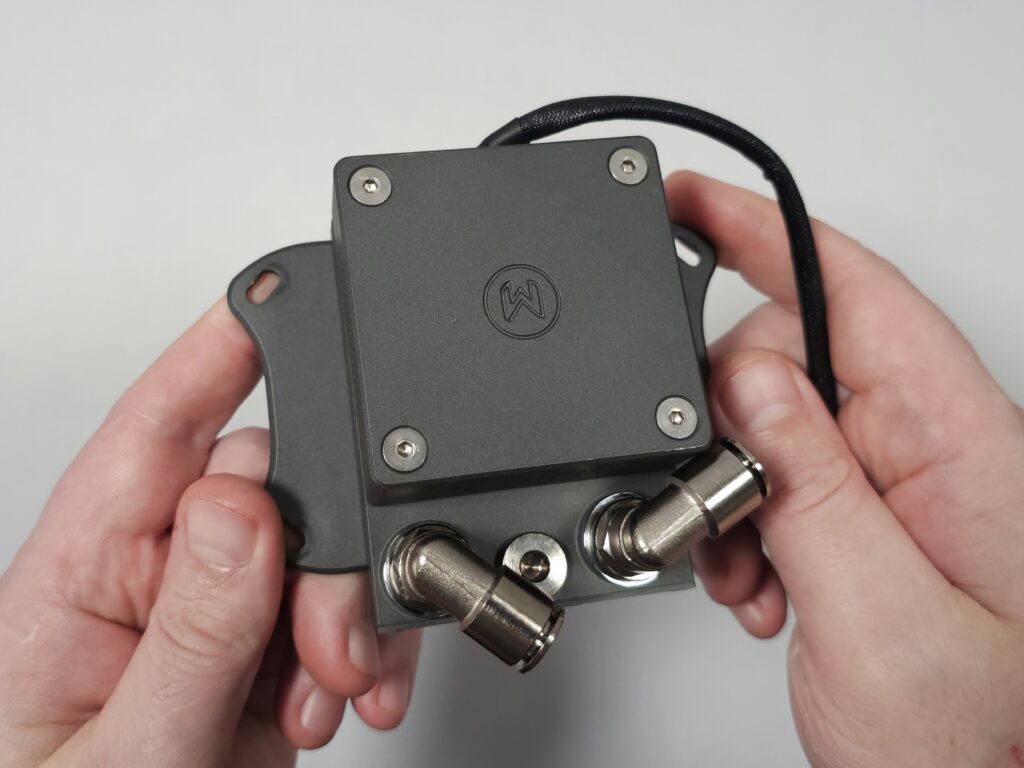

CPU COOLERModultra LOBO + EK DDC 4.2 (paid link)
GPUGigabyte RX 6900XT Gaming OC (paid link)
PSU Extreme 850R / Corsair SF750 (paid links)
CABLESSFF Cables by CableMod
RAM32GB Gskill S5 DDR5, 6000MHz, CL30 (paid link)
STORAGE1TB + 2TB NVME (paid links)
RADIATORSAlphacool 240 ST20 HPE (paid link)
FITTINGS6x EK-QT Micro Rotary 90, 6x EK-Torque STC-10/13, 4x EK-QT Extender 14, 2x Alphacool Eiszapfen QDC kits (paid links)
TUBING Mayhems 13/10 Soft Tubing (paid links)
CASE FANS2x NF-A12x25 chromax.Black (paid link)

CONCLUSIONS

FormD T1 is widely considered one of the best small ITX cases and certainly one of the most popular among enthusiasts. The case provides satisfying build experience and multiple configurations, such as AIO, air cooling and custom liquid cooling.

For those looking to take on custom liquid cooling, you should look towards Festo 8mm pneumatic fittings: NPQH-DK-G14-Q8-P10 (578377), NPQH-L-G14-Q8-P10 (578284), with 8mm tubing: PUN-H-8X1,25-SW (197392). Spacers may be required to reduce the fitting thread length for some hardware (radiator, CPU block etc), we recommend Barrow 1.5mm Mini Spacers.
