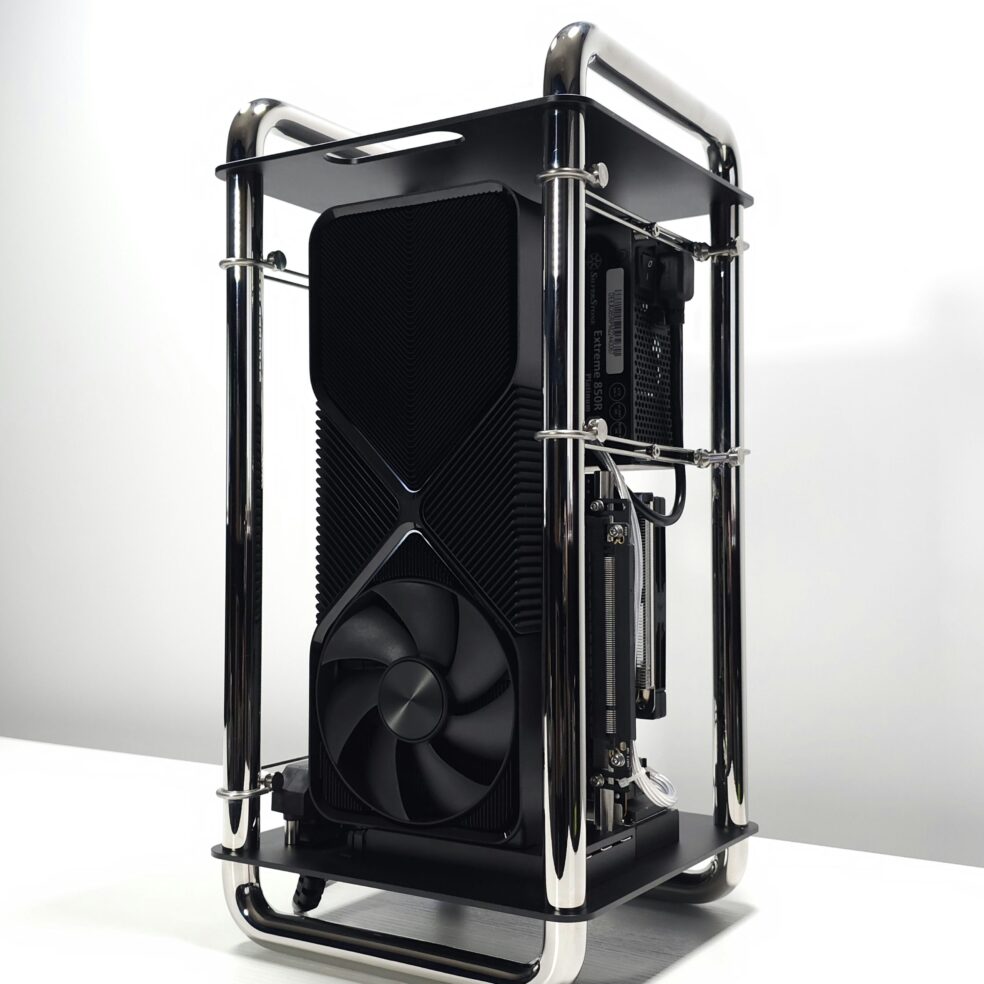

Streacom DA6

SPECIFICATIONS DA6 DA6 XL DIMENSIONS 215 x 215 x 431mm (L x W x H) 215 x 215 x 466mm (L x W x H) VOLUME 15.9 Litres 19.9L MATERIALS AL6063 (aluminium) + SS304 (stainless steel) AL6063 (aluminium) + SS304 (stainless steel) I/O USB 3.1 Gen 2 Type-C USB 3.1 Gen 2 Type-C MOTHERBOARD COMPATIBILITY Mini-ITX Mini-ITX MAX CPU COOLER HEIGHT 105mm 105mm EXPANSION SLOTS 3+ 3+ MAX GPU LENGTH 323mm 358mm MAX GPU THICKNESS 87mm 87mm RADIATORS SUPPORTED Upto: …

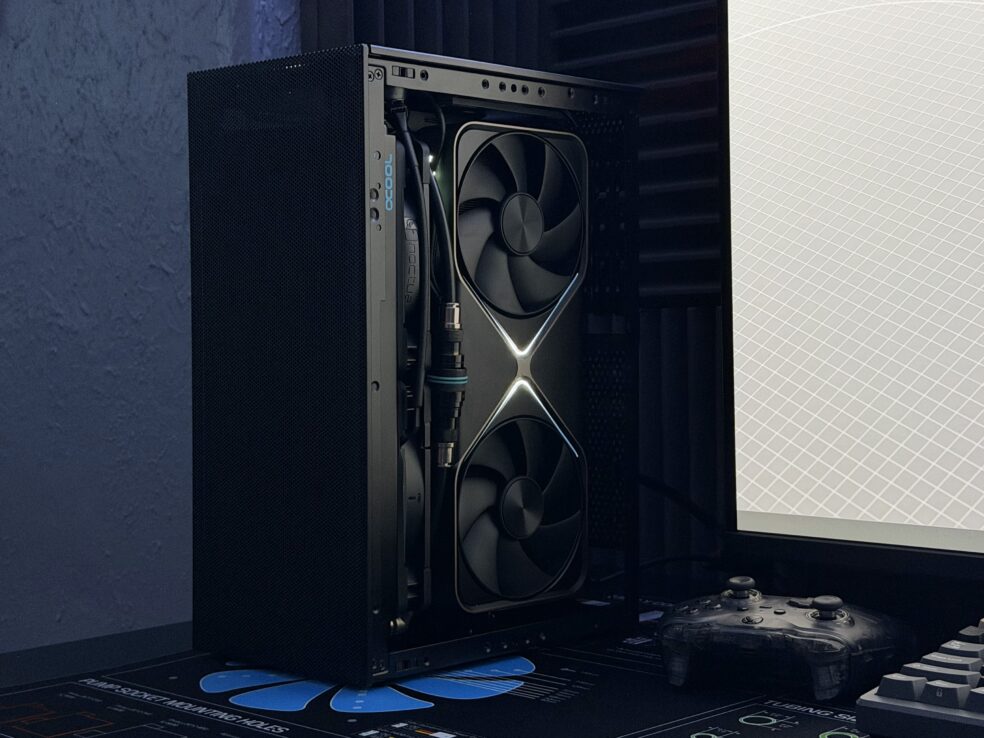

Meshroom (SSUPD)

Little is currently known about the Meshlicious (Meshroom). We can confirm the case features updated mesh panels, dual radiators support and upto ATX motherboards. MESHROOM (SSUPD) SPECIFICATIONS DIMENSIONS VOLUME Expected to be similar to the existing Meshlicious case MATERIALS Aluminium & Tempered Glass I/O MOTHERBOARD COMPATIBILITY Mini-ITX / Micro-ATX, ATX MAX CPU COOLER HEIGHT EXPANSION SLOTS 3 MAX GPU LENGTH MAX GPU THICKNESS RADIATORS SUPPORTED Front: upto 280mm Side: ??? (custom water cooling only) POWER SUPPLY COMPATIBILITY SFX / SFX-L …

P-ATX v3 (SFFtime)

The P-ATX v3 features invertible layout, fully ventilated side panels, USB Type-C front I/O, symmetrical front panel & PCIe 4.0 riser cable. SPECIFICATIONS DIMENSIONS 326 x 140 x 244mm (L x W x H) VOLUME 10.8 Litres MATERIALS Aluminium I/O USB 3.1 Type-C MOTHERBOARD COMPATIBILITY Mini-ITX / Mini-DTX / mATX / ATX MAX CPU COOLER HEIGHT 59mm EXPANSION SLOTS 3 MAX GPU LENGTH 370mm MAX GPU THICKNESS 62mm (triple slot) RADIATORS SUPPORTED 120mm RADIATOR COMPATIBILITY 55mm thickness (radiator + fan) …

XPROTO-ATX

The XPROTO-ATX is an anodised aluminium open air ATX case at 16.5L in volume. The case is priced at US$185 (excluding delivery / import taxes) SPECS DIMENSIONS 284mm x 170mm x 340mm (L x W x H) VOLUME 16.5 Liters (240 AIO and no more than 280mm GPU) MATERIALS Aluminium (CNC) I/O N MOTHERBOARD COMPATIBILITY ATX / Micro-ATX / Mini-ITX MAX CPU COOLER HEIGHT NO LIMIT EXPANSION SLOTS 6 MAX GPU LENGTH NO LIMIT RADIATORS SUPPORTED Back & Side: 240 …

JONSBO VR3 (China Only)

JONSBO VR3 SPECIFICATIONS DIMENSIONS 204 x 255 x 382mm (L x W x H) VOLUME 19 Litres MATERIALS Steel I/O USB Type-C (20Pin) + USB 3.0 Type-A MOTHERBOARD COMPATIBILITY Mini-ITX MAX CPU COOLER HEIGHT 70mm EXPANSION SLOTS 3 MAX GPU LENGTH 325mm MAX GPU THICKNESS 60mm RADIATORS SUPPORTED 240 / 280mm POWER SUPPLY COMPATIBILITY SFX / SFX-L / ATX (140mm) CASE FANS SUPPORTED Front: 2x 120 / 140mm (replaces AIO) 2.5 / 3.5” DRIVES SUPPORTED 2x 2.5” / 2x 2.5 …

ACAT X2

ACAT X2 is SFF aluminium mATX case at 14.2L in volume. The case can be found on AliExpress and Taobao, priced between £200~£250 (excluding import taxes / delivery charges). This is the most expensive small form factor mATX case currently available. DIMENSIONS 328 x 164 x 264mm (L x W x H) VOLUME 14.2 Litres MATERIALS Aluminium I/O N MOTHERBOARD COMPATIBILITY Mini-ITX / mATX MAX CPU COOLER HEIGHT 137mm EXPANSION SLOTS 4 MAX GPU LENGTH 313mm RADIATORS SUPPORTED 240 / …

SilverStone SG16

The SilverStone SG16 (SUGO 16) is 13L cube chassis with all steel construction. This is the updated version of the popular SG13 Mini-ITX case. The SUGO 16 can be purchased via Amazon UK / Amazon US (paid links). DIMENSIONS 280 x 200 x 232mm (L x W x H) VOLUME 13 Litres MATERIALS Steel I/O HD Audio2x USB 3.0 Type-A MOTHERBOARD COMPATIBILITY Mini-ITX / Mini-DTX MAX CPU COOLER HEIGHT 85~172mm (air coolers above 85mm are restricted to SFX PSUs only) …

Sirius T80

DIMENSIONS 331 x 150 x 216mm (L x W x H) VOLUME 10.72 Litres MATERIALS Aluminium (CNC) I/O N MOTHERBOARD COMPATIBILITY Mini-ITX MAX CPU COOLER HEIGHT 64mm EXPANSION SLOTS 2 MAX GPU LENGTH 325mm MAX GPU THICKNESS 61mm POWER SUPPLY COMPATIBILITY SFX / SFX-L CASE FANS SUPPORTED Top: 2x 120mm, Bottom: 1x 120x15mm 2.5 / 3.5” DRIVES SUPPORTED 4x 2.5″ / 2x 3.5″

XTIA XPROTO-N

Xtia Xproto-N is the new edition of Xtia’s open air Mini-ITX cases, featuring flow through design for 30 series GPUs and the ability to add water cooling support through an additional mounting bracket. The Xproto-N is priced at US$118 for the base version which excludes the PCIe riser cable. The case can also be configured with LINKUP GEN 4 PCIe riser. DIMENSIONS 160 x 190 x 345mm (L x W x H) VOLUME 10.5 Litres MATERIALS Aluminium (CNC) I/O N …

IQUNIX ZX-1

IQUNIX ZX-1 is SFF Mini-ITX case at 9.2L in volume for the air cooling version and 10.6L for the water cooling version. The ZX-1 price starts at US$219 exc VAT / taxes / delivery. Use our affiliate link and code ITX-l91 at checkout for $20 discount. COMPARISON AIR COOLED WATER COOLED DIMENSIONS 217 x 149 x 330mm (L x W x H) 250 x 149 x 330mm (L x W x H) VOLUME 9.2 Litres 10.7 Litres MATERIALS Steel & …
