// COMMUNITY BUILD

FormD Starter Pack

BY L91L91 2026-10-21T08:01:52+00:00 FormD T1 Sandwich V2.1

VIEW CASE DB ↗VIEW CASE IN 3D ↗ALL BUILDS
CASEFormD T1 Sandwich V2.1
COLOURTitanium
LAYOUT / MODE3.00-Slot Mode
BUILDER-REPORTED FITStandard Fit
FROM THE USER

BUILD NOTES

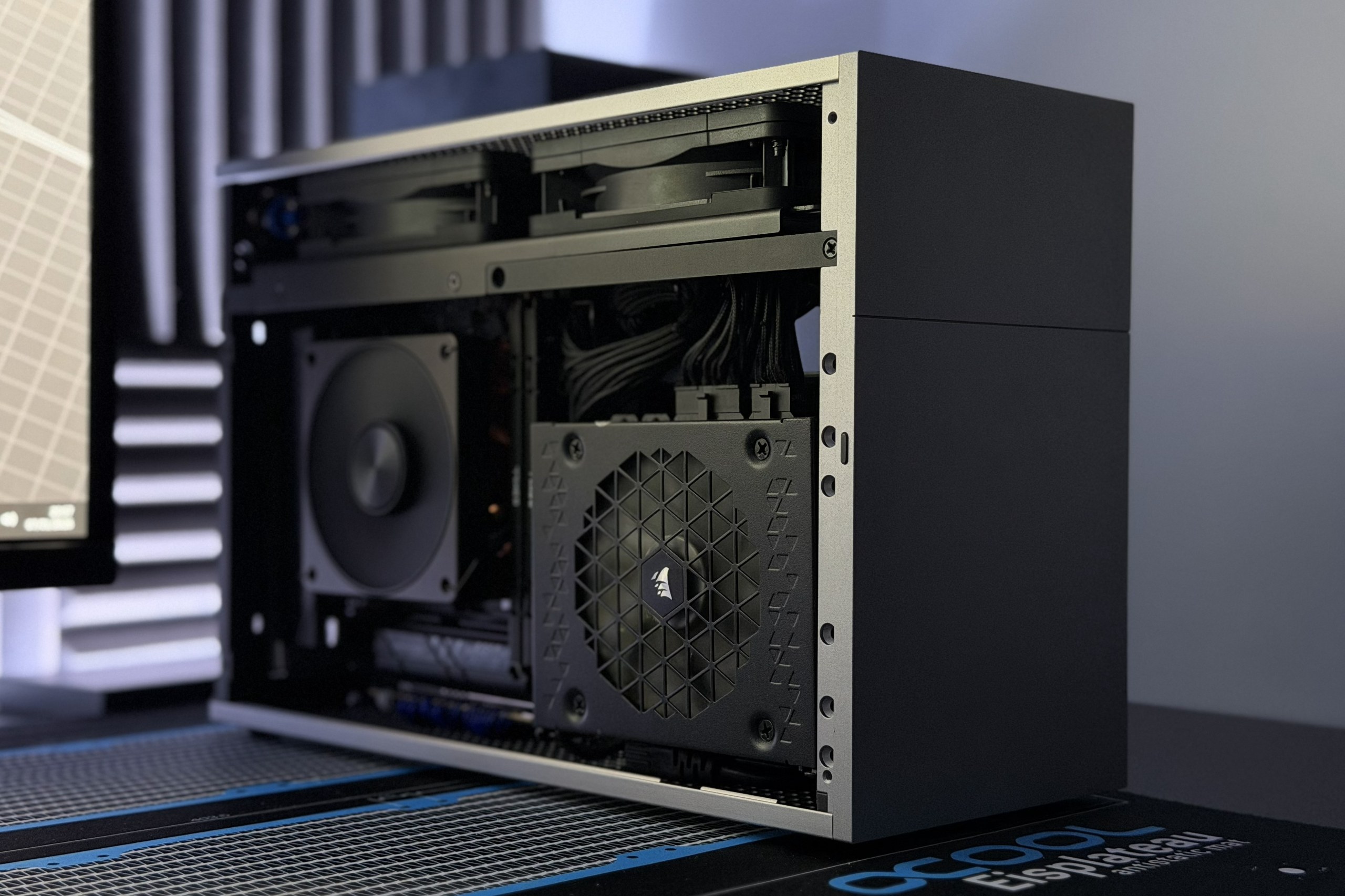

RTX 5080 FE build running in 3 slot mode in T1 v2.1 with 20mm GPU offset. 43DB(A) under stress test conditions and about same during gaming. R7 7800X3D is optimised at 75W with negative 20 curve offset, which provides full performance at reduced thermal output. The RTX 5080 FE is running out of box settings. RTX 4070 FE CNC is running as 2100RPM, with 2x NF-A12 case fans at 50%. Corsair SF1000 2024 is using stock / included cables.
SUBMITTED CONFIGURATION

HARDWARE

MOTHERBOARDASRock B850I Lightning WiFi [ITX] (AM5)
MEMORY (RAM)G.Skill Flare X5
GRAPHICS CARDNvidia RTX 5080 16GB GDDR7 Founders Edition
PROCESSORAMD 7800X3D (AM5)

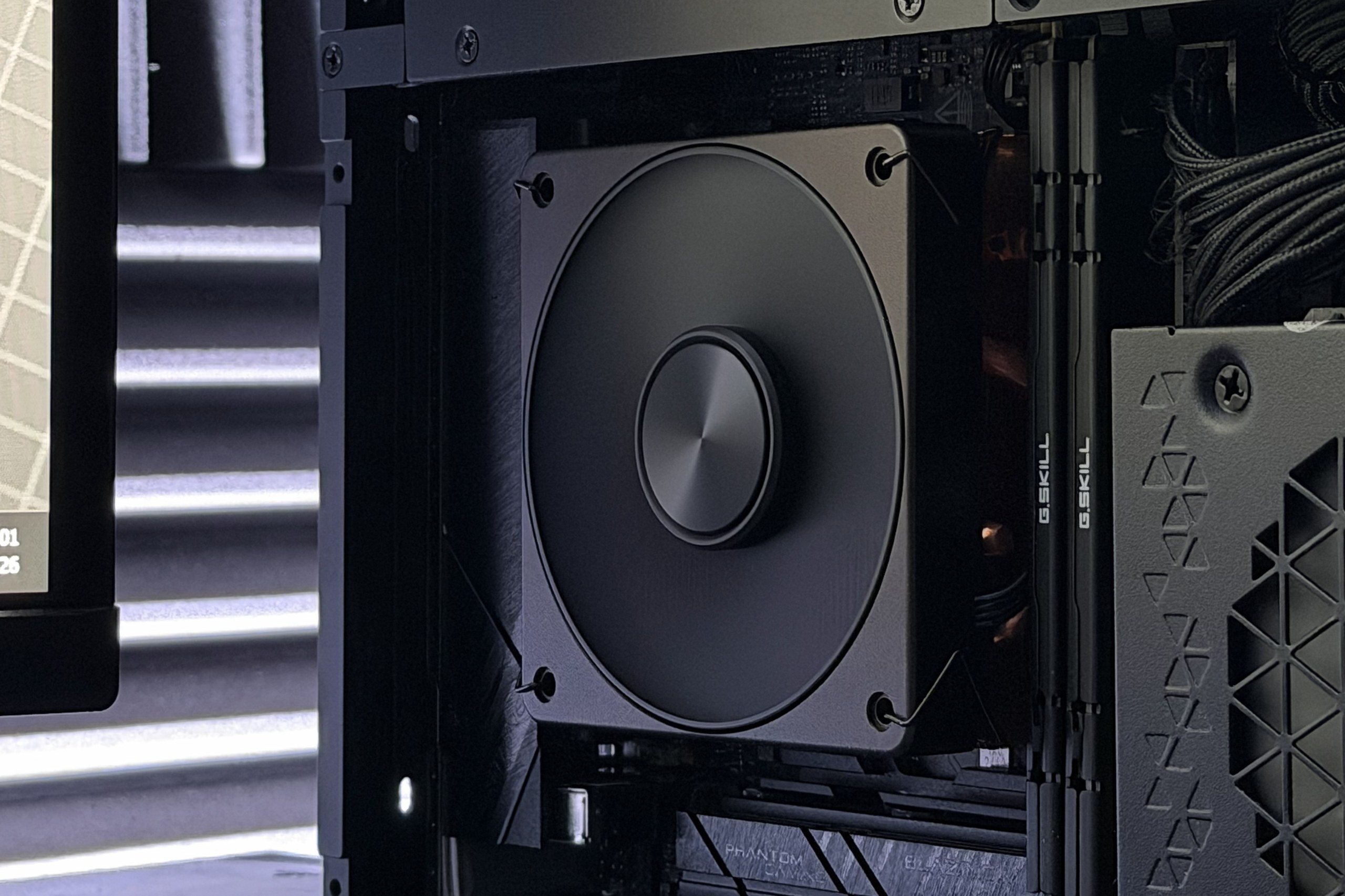

CPU COOLERThermalright AXP90-X47 FULL
AIO / RADIATORSNONE

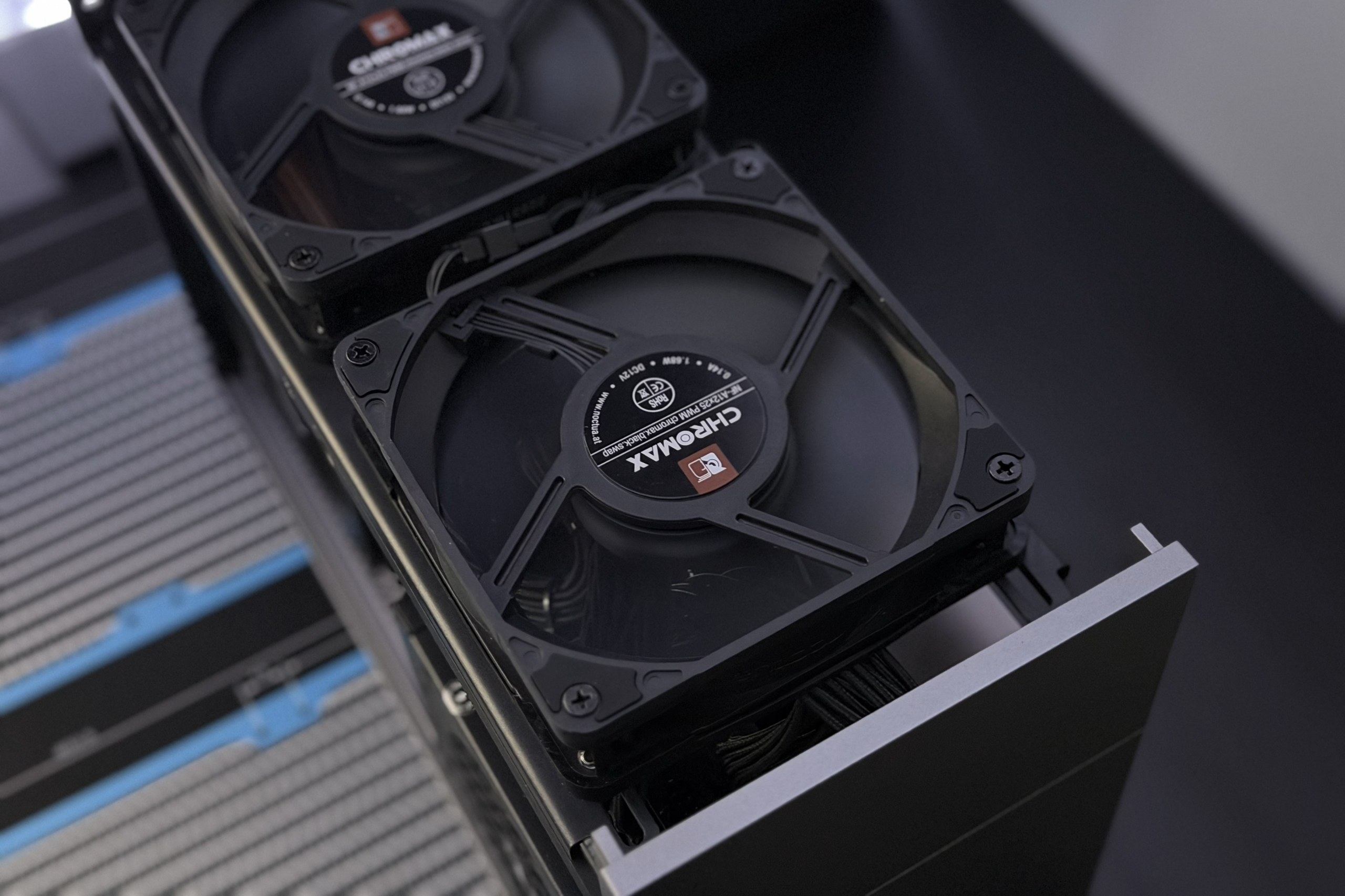

CASE FANS2x Noctua NF-A12 Chromax.Black

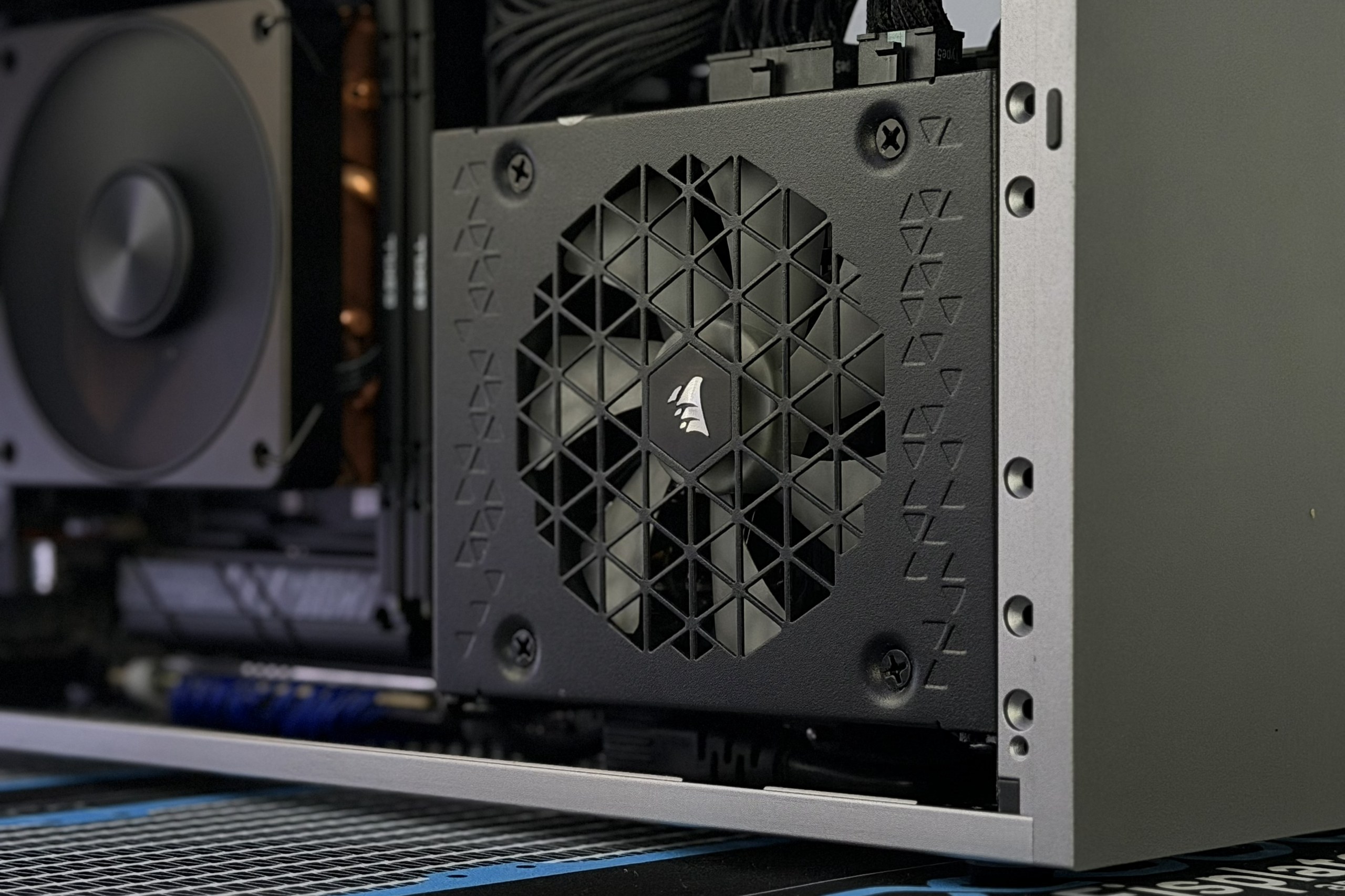

POWER SUPPLYCorsair SF1000 Platinum ATX 3.1 (1000W)
BUILDER EXPERIENCE

FITMENT

BUILDER SUPPLIED
REPORTED OUTCOMEStandard Fit
AFFECTED AREAS
GPU / SIDE PANEL — GPU POWER — PSU CABLING — CPU COOLER — AIO / RADIATOR — MOTHERBOARD — RAM / COOLER — CASE CONNECTOR — RISER — MOUNTING — OTHER —

Reported from this completed Build. Community evidence is advisory and does not replace published component or case specifications.
