NFC S5M
''Still small. Still unapologetically premium.
But this time, a little more muscle...
A little more modular... A lot more airflow!''
View Gallery

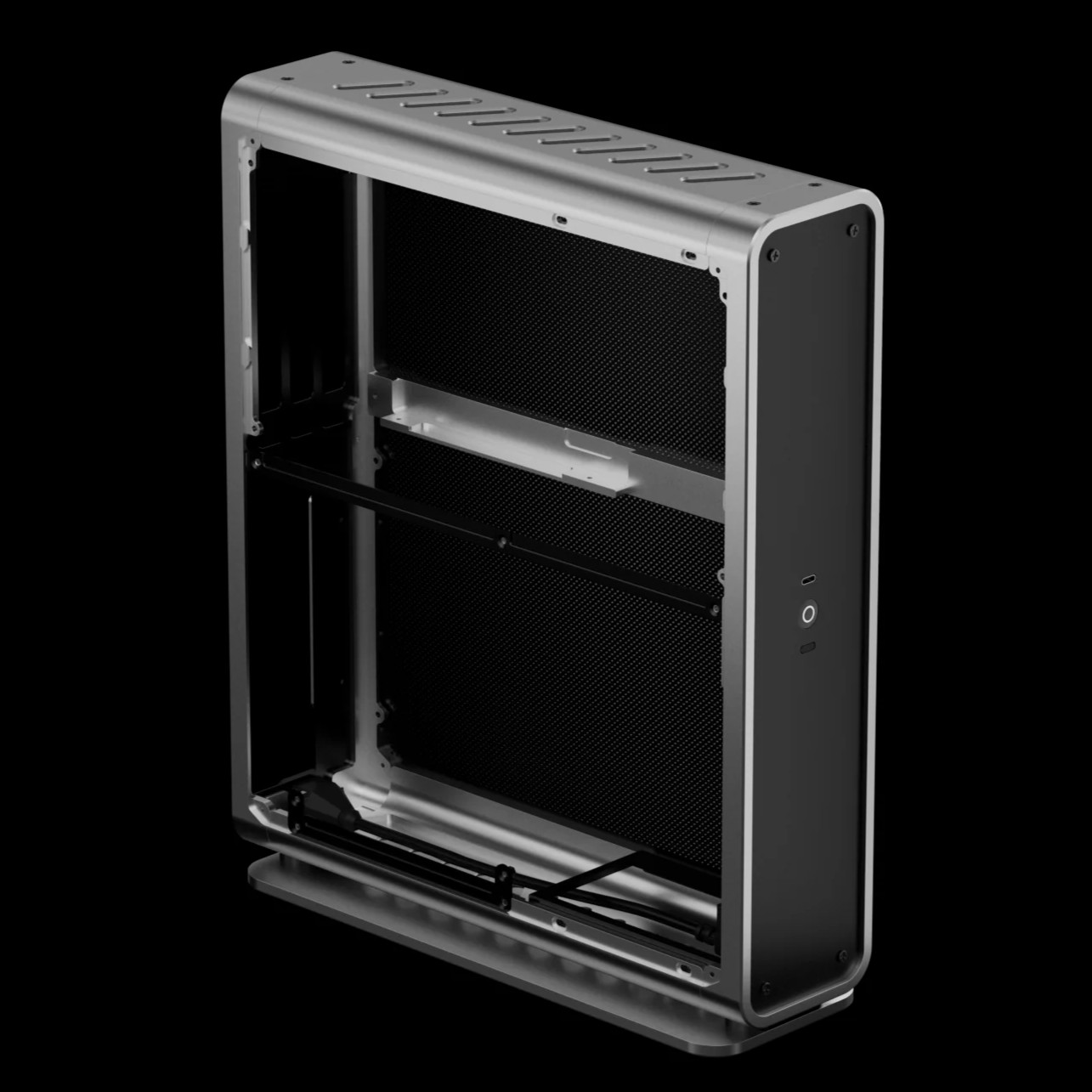

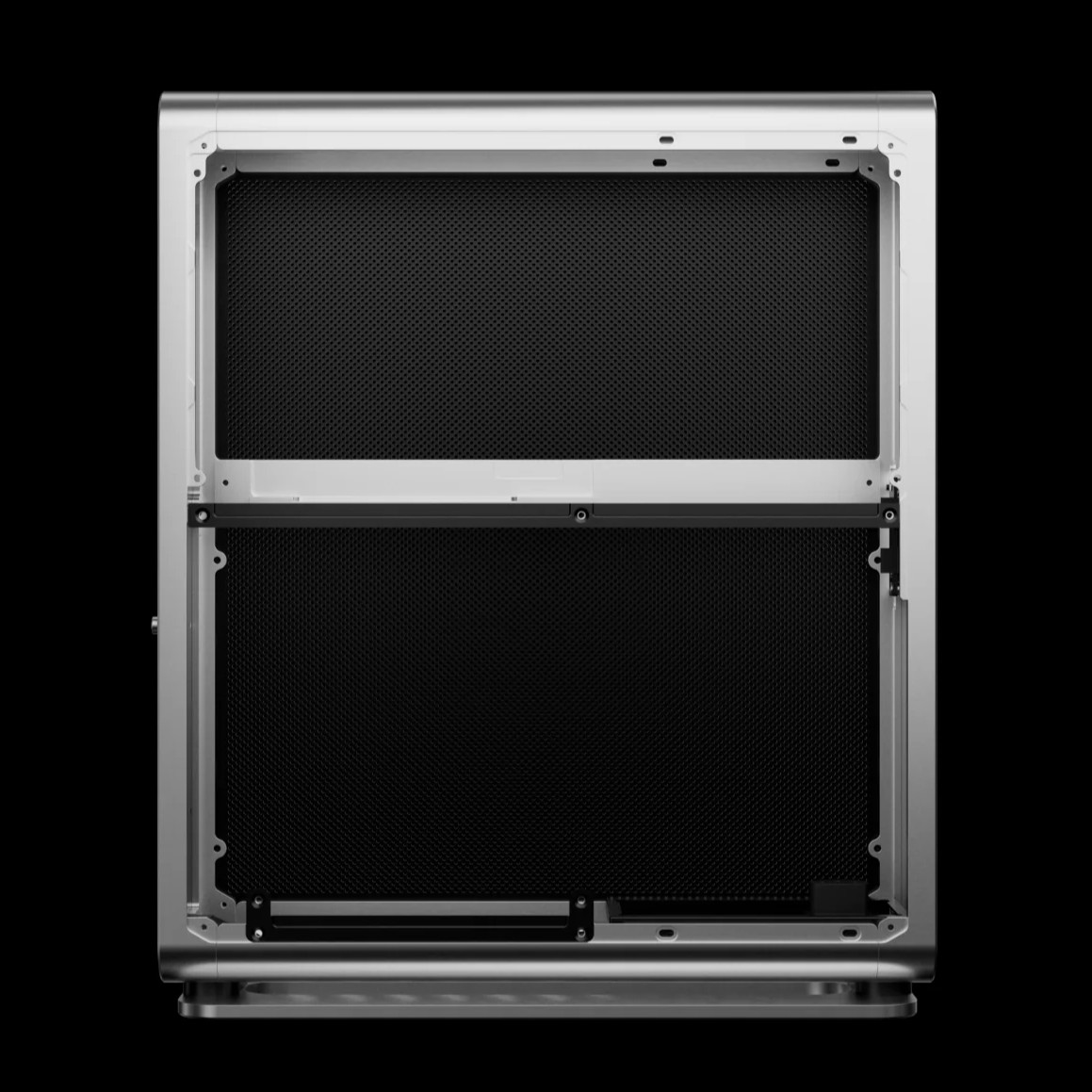

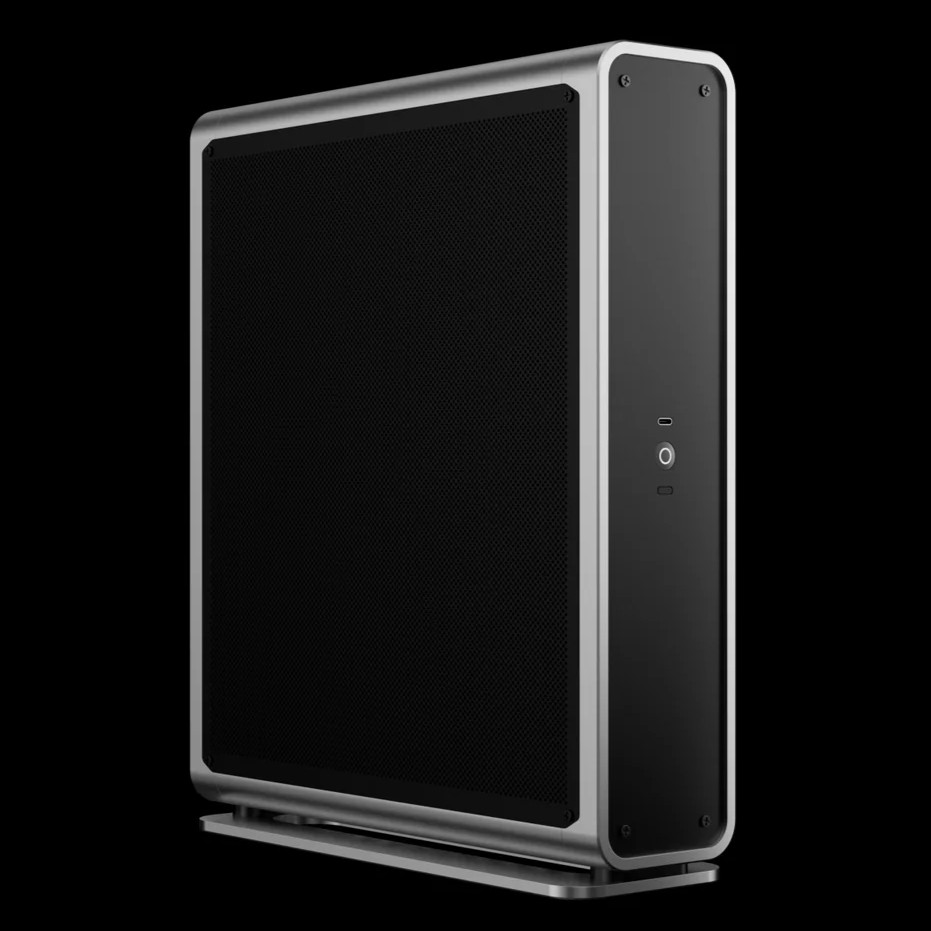

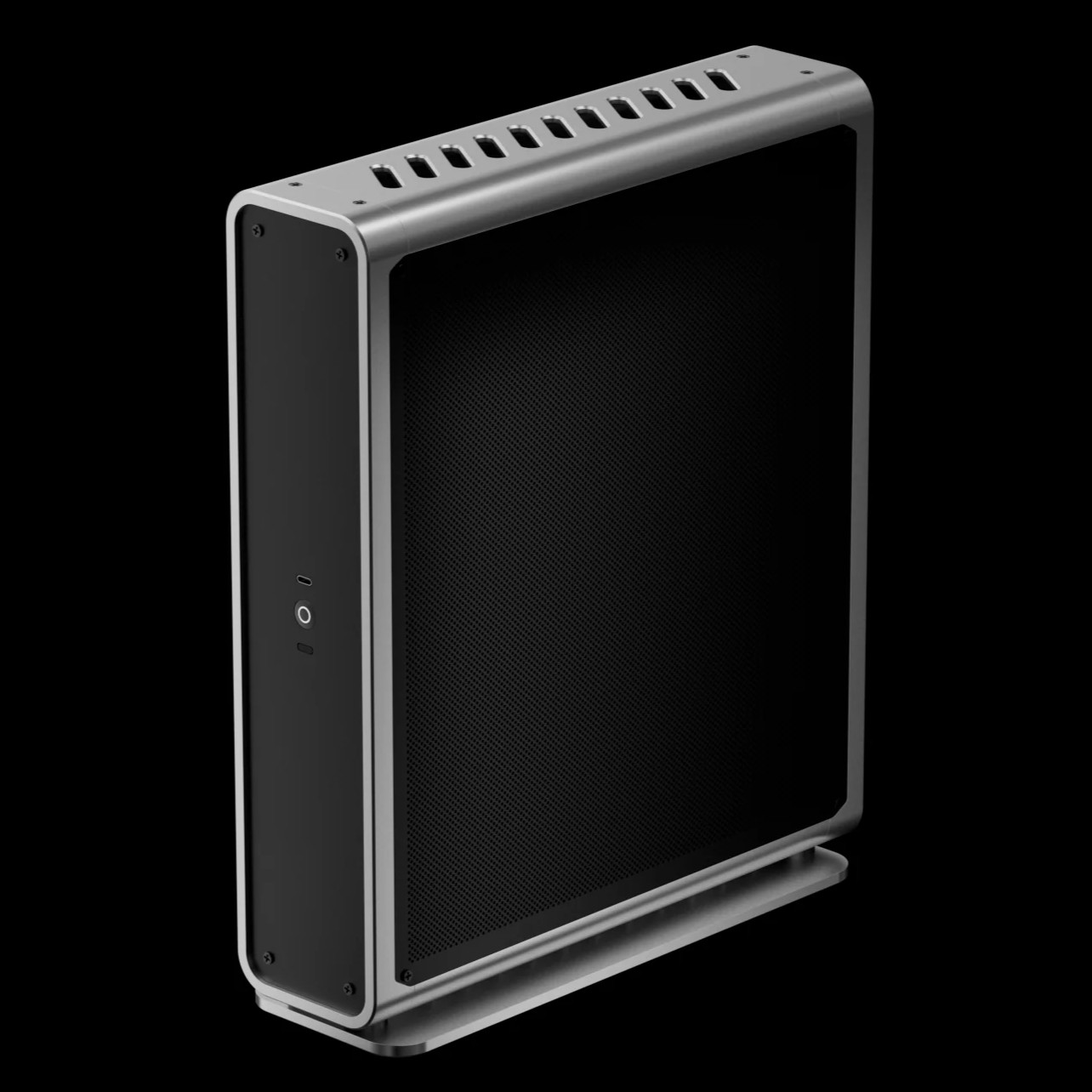

Skyreach 5 MINI is NFC Systems successor to Skyreach 4 MINI. Not From Concentrate have partnered with NCASE for manufacturing. Full case specifications are now available on ncased.com. The S5M is 10L case optimised for RTX 5080/90 FE graphics cards. Other GPU's are also supported upto 304mm long, 123mm tall & 3-Slots wide. CPU coolers upto 66mm in height are also supported. Case pricing is between $225-$255 USD as per NCASE product page.
SPECIFICATIONS
MATERIALS
Chassis: 3.5-25mm Aluminum, CNC Machined and Anodized
Fan Bracket: 1.0mm Steel, Powder Coated
Side Panels: 1.5mm Aluminum, Powder Coated
DIMENSIONS
318×86x368mm
(L×W×H without stand/protrusions/screws)
VOLUME
10 Litres
(without stand/protrusions/screws)
CASE I/O
Power Button, 1x USB Type-C
MOTHERBOARD SUPPORT
Mini-ITX
CPU COOLER CLEARANCE
66mm
GRAPHHICS CARD COMPATIBILITY
3 slot, 304mm length & 123mm height
LIQUID COOLING SUPPORT
NONE
CASE FANS SUPPORTED
2x 120mm (requires seperate fan bracket not included)
POWER SUPPLY COMPATIBILITY
SFX / SFX-L
2.5 / 3.5” DRIVES SUPPORTED
1x 2.5" (based on components)
COLOURS
Black, Silver & Gunmetal

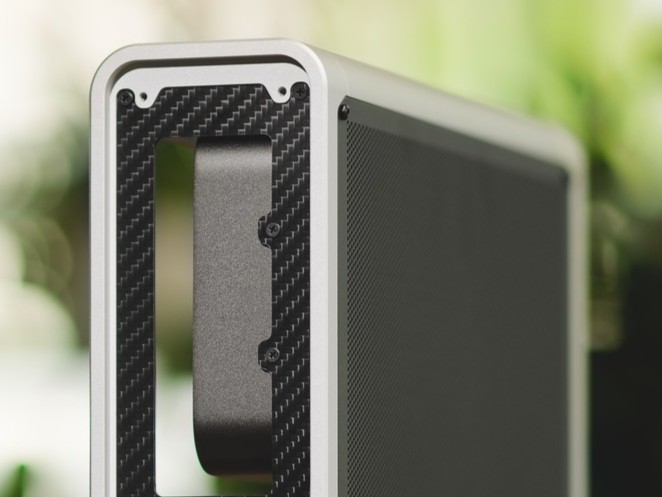

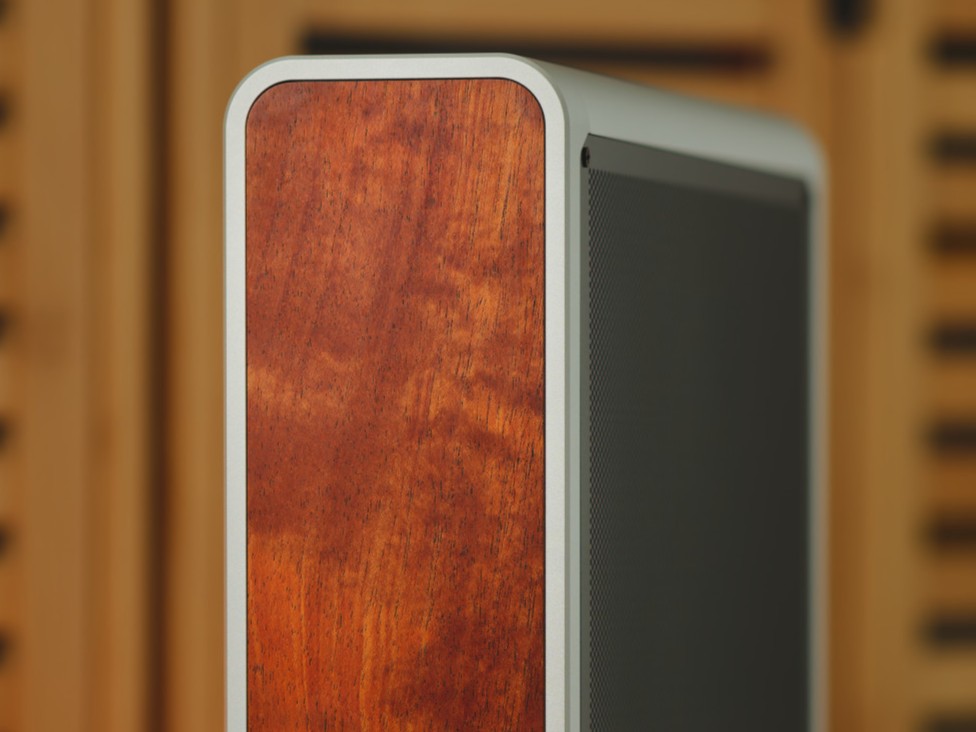

There are some areas of note with the S5M. There is no mounting for 120mm case fans on GPU side as no fan bracket is included or available despite stated in case specifications. S5M does not use countersunk mounting for external case screws causing the screws to protrude on the front faceplate and side panels. The default faceplate is somewhat recessed into the case causing noticeable faceplate bezel. This can be addressed with custom faceplate and power button for those interested in customising the Skyreach 5 Mini.
