Densium 4 v2

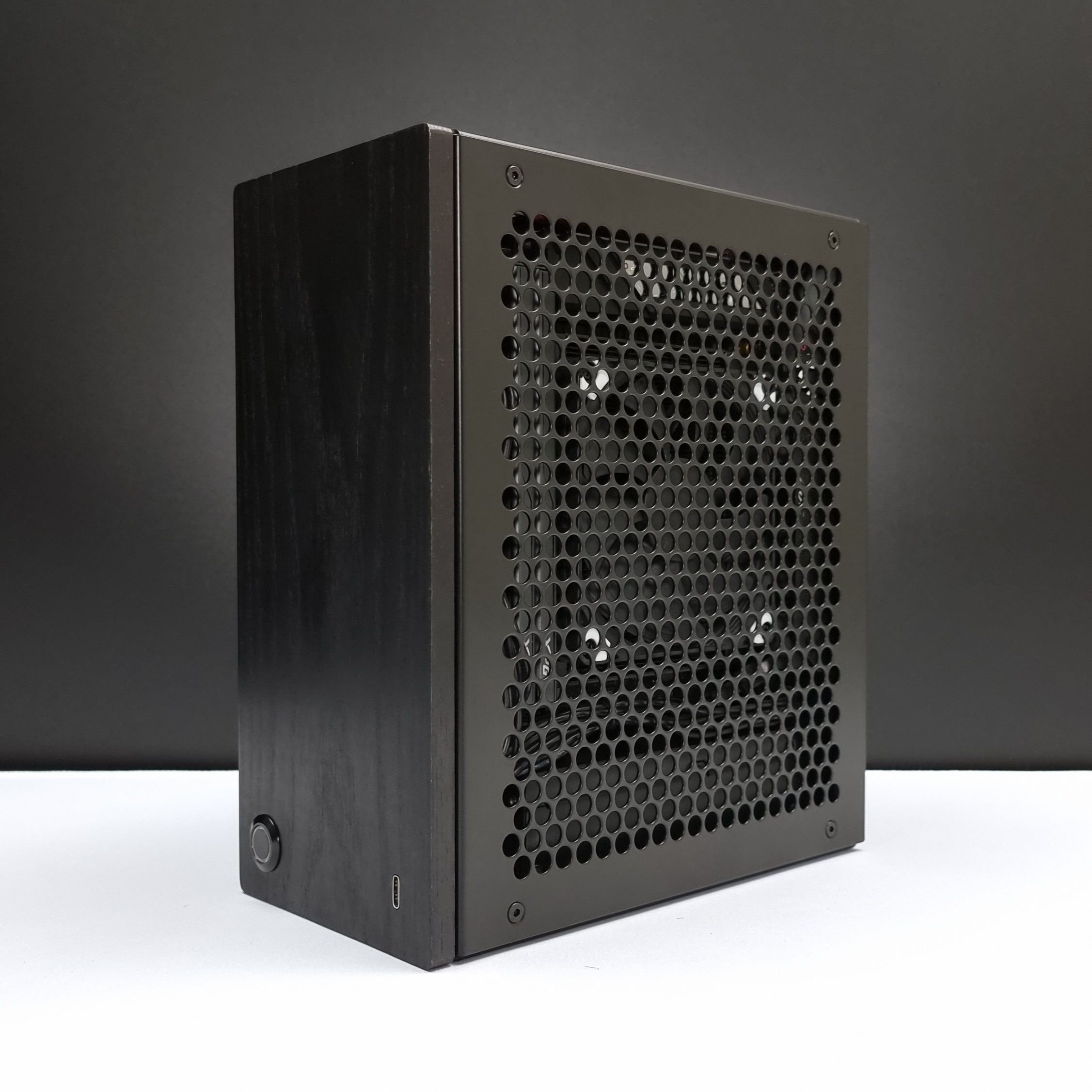

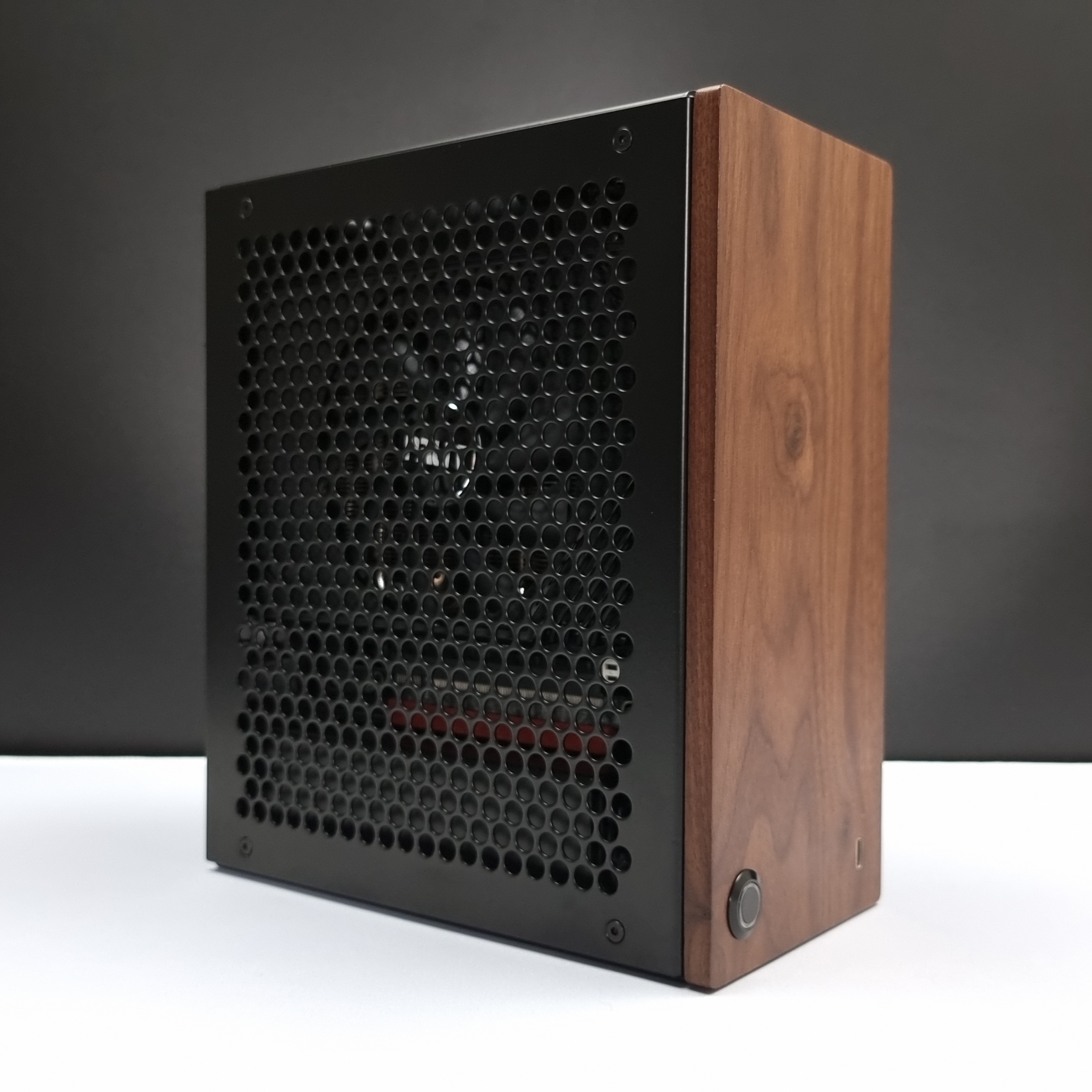

Densium 4 is 4.5L Mini-ITX case that comes with selected wood grain front panels. The Densium 4 V1 model has been discontinued. The Densium 4 v2 is available for purchase on Densium.net

SPECIFICATIONS

CASEDensium 4 v2
DIMENSIONS193 x 103 x 225mm (L x W x H)
VOLUME 4.47 Litres
MATERIALSAluminium, Stainless Steel, Wood Grain
I/OUSB 3.1 Type-C Gen 2 (10Gb/s)
MOTHERBOARD COMPATIBILITYMini-ITX
MAX CPU COOLER HEIGHT39mm
EXPANSION SLOTS2
MAX GPU LENGTH175mm
MAX GPU THICKNESS43mm
RISER CABLE195mm Double Reverse (sold separately)
POWER SUPPLY COMPATIBILITYFlex ATX (170 x 80 x 40mm)
2.5″ / 3.5″ DRIVES SUPPORTEDN

FEET INSTALLATION

The four included rubber feet are detachable and can be placed in any holes on the bottom of the chassis.


FRONT PANEL MOUNTING


LINKUP PCIe 4.0 ITX RISER CABLE COMPATIBILITY

You’ll require the 200mm cable for use with Densium 4 cases. We were unable to secure the LINKUP riser cable on both side to the case out of the box due to the fixed red plastic shroud on the riser cable being slightly to tall. This is does not affect performance, and the GPU is still very secure thanks to two additional contact points with the case.

We opted to use fine sandpaper to reduce the red plastic shroud on the LINKUP riser cable for perfect fit. You won’t have such issues if you purchase a riser cable directly from Densium. Just thought this was noteworthy.

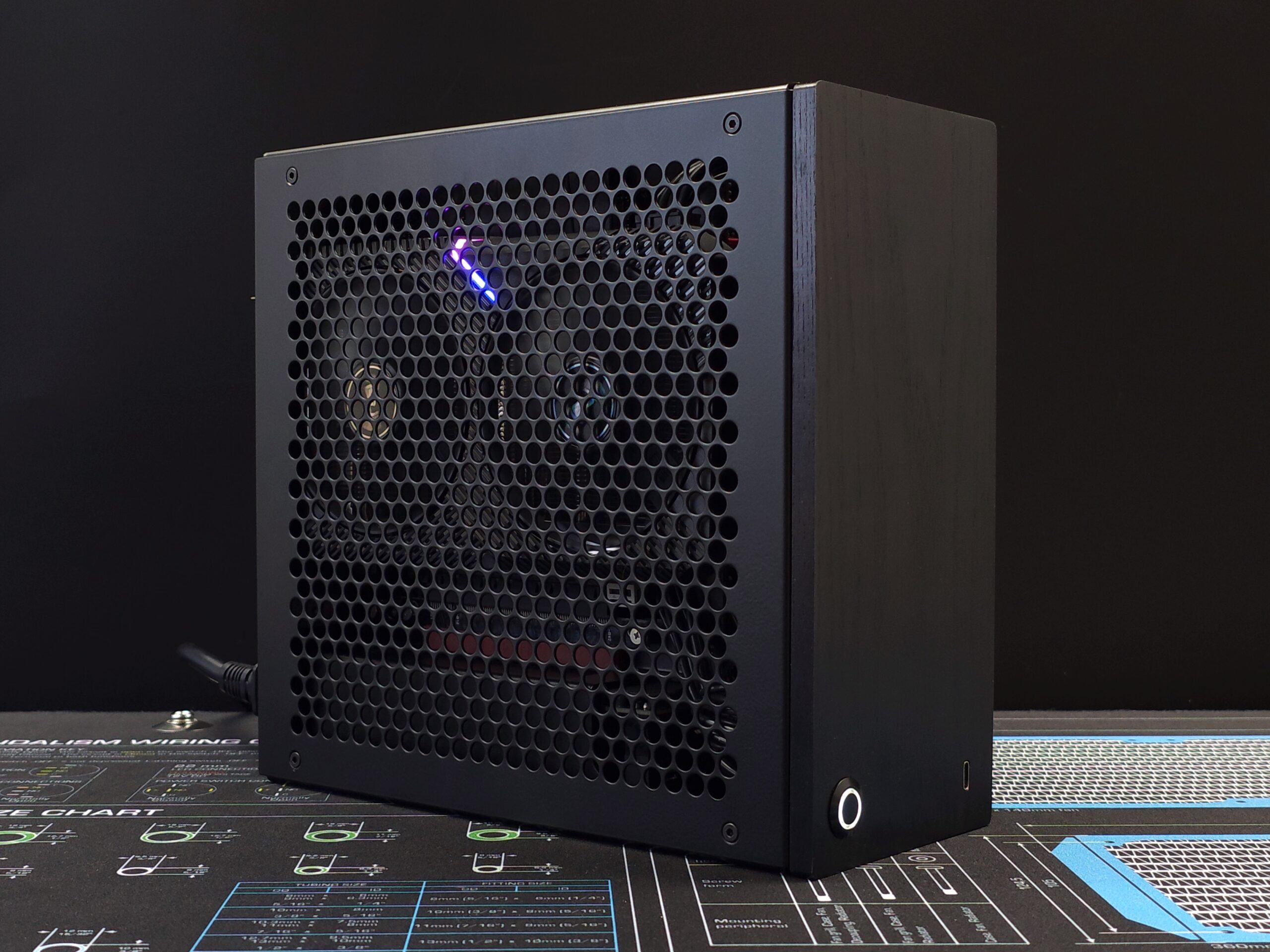

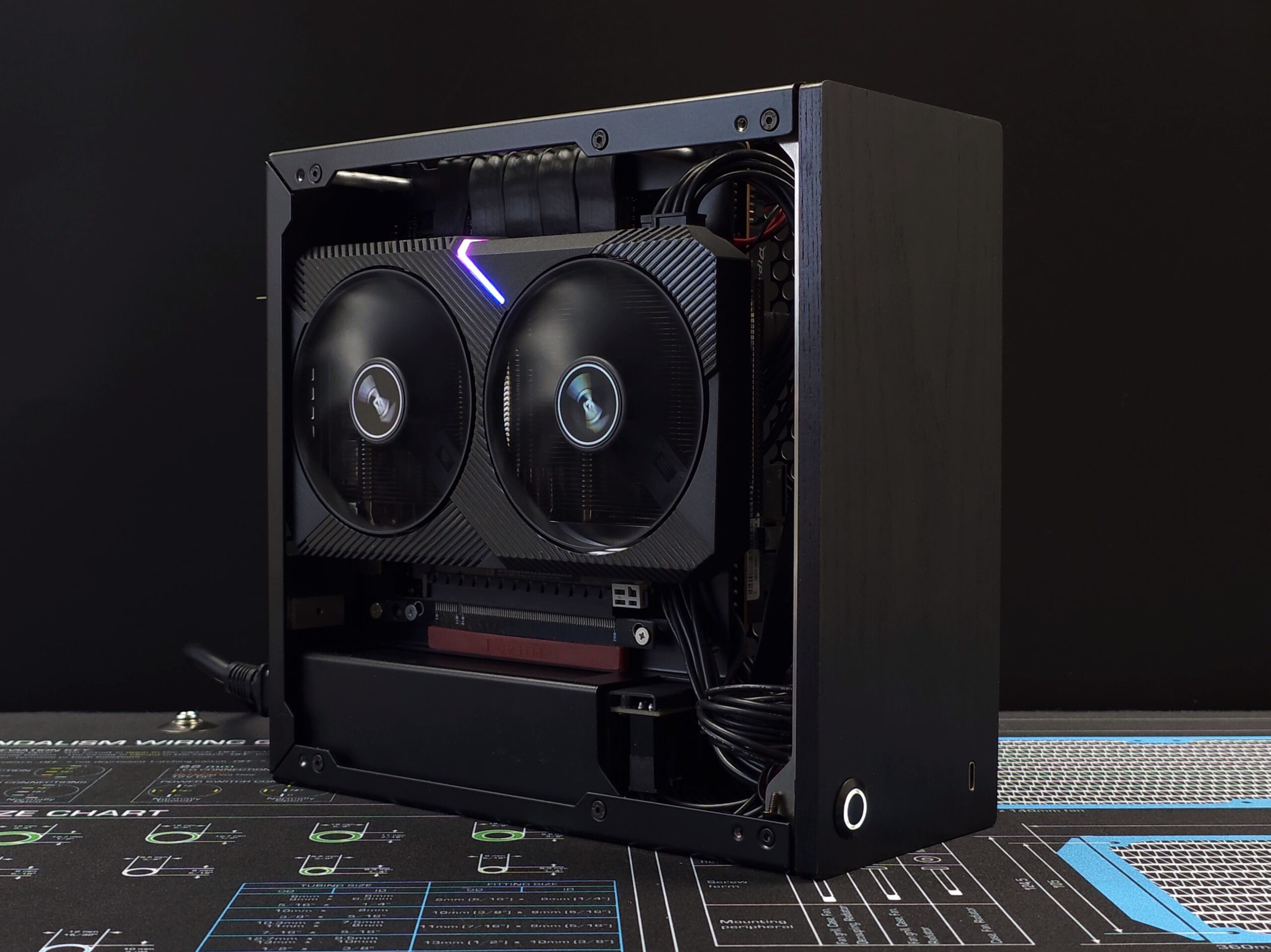

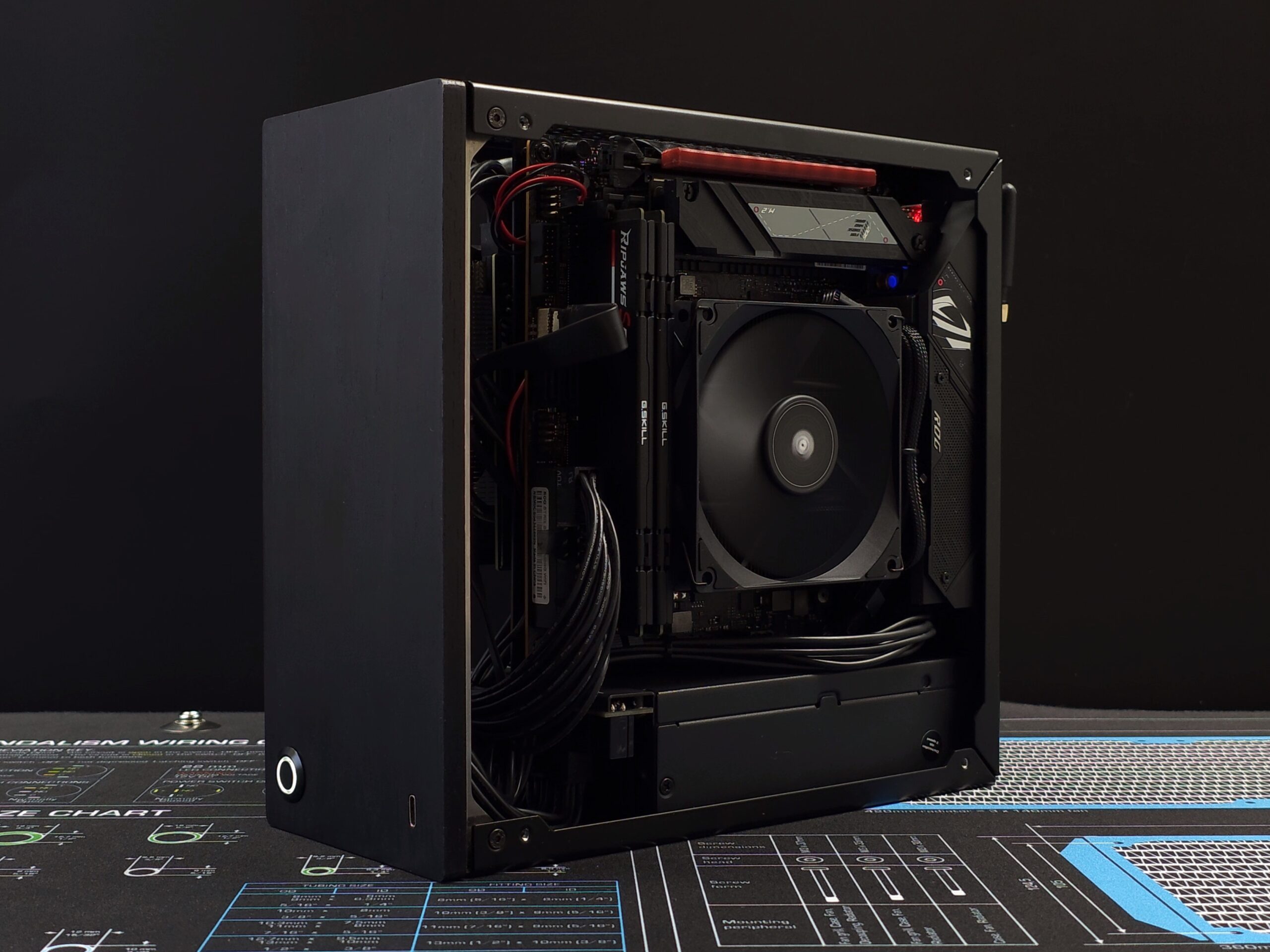

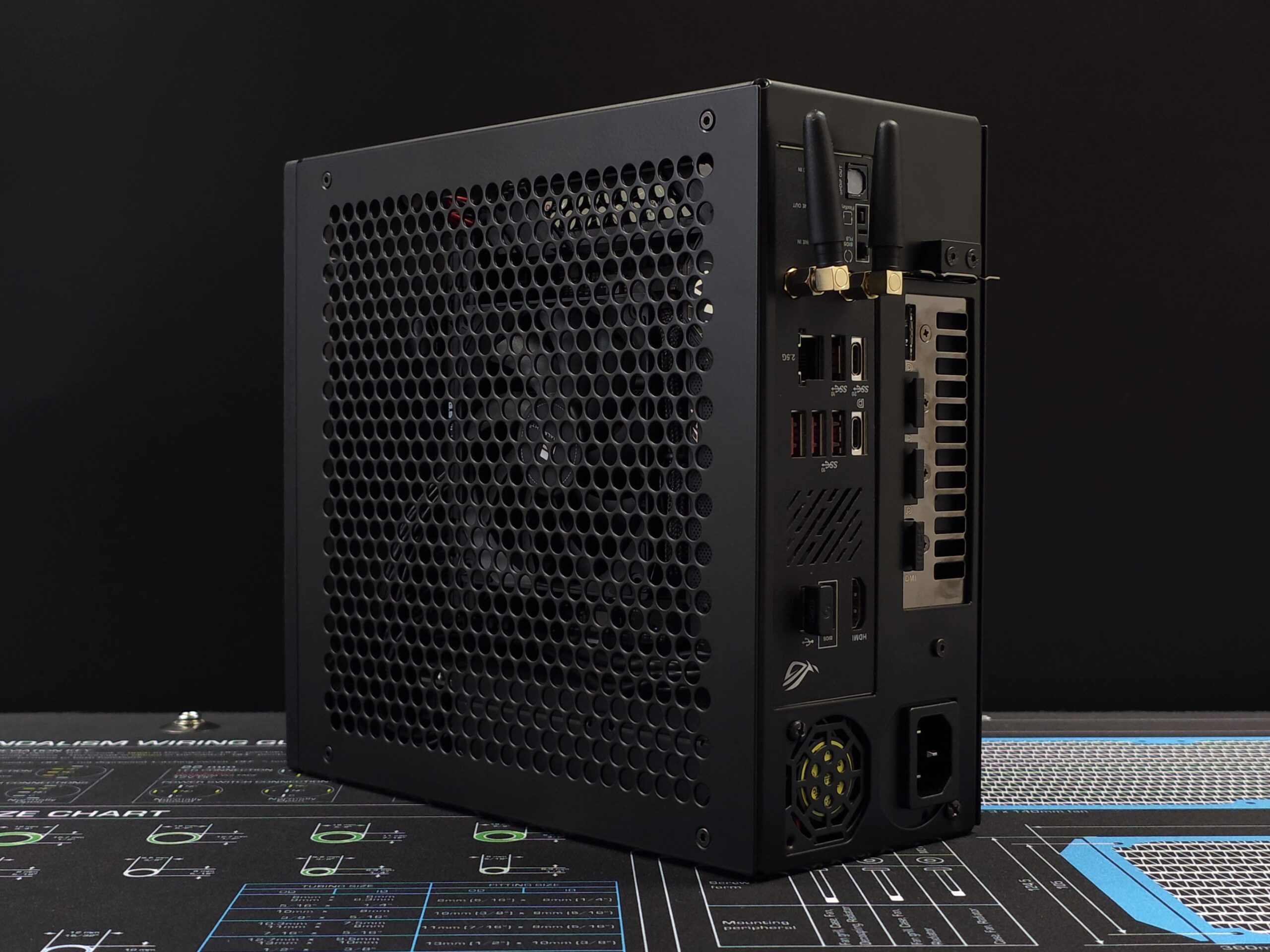

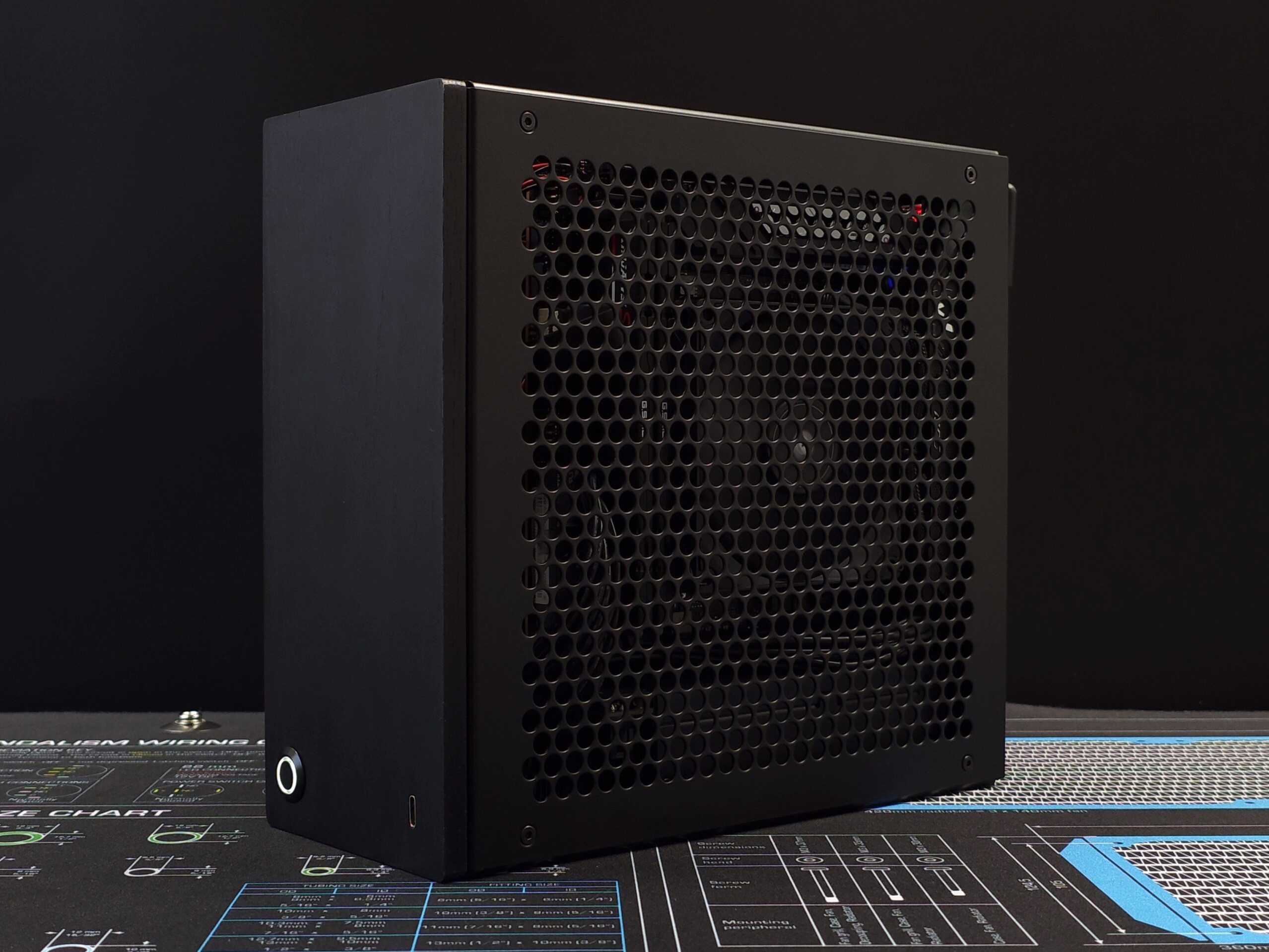

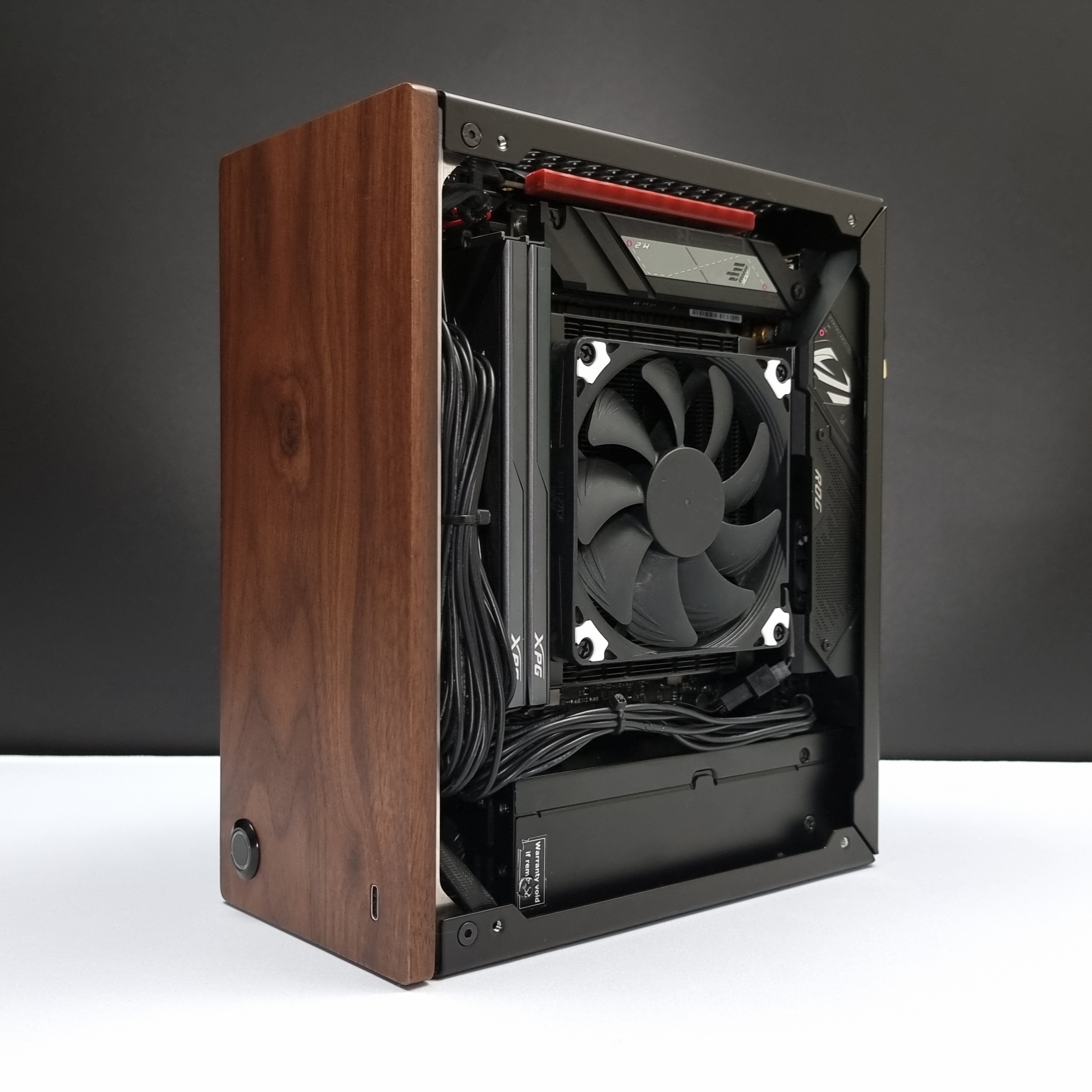

BUILD

THERMAL BENCHMARKS
