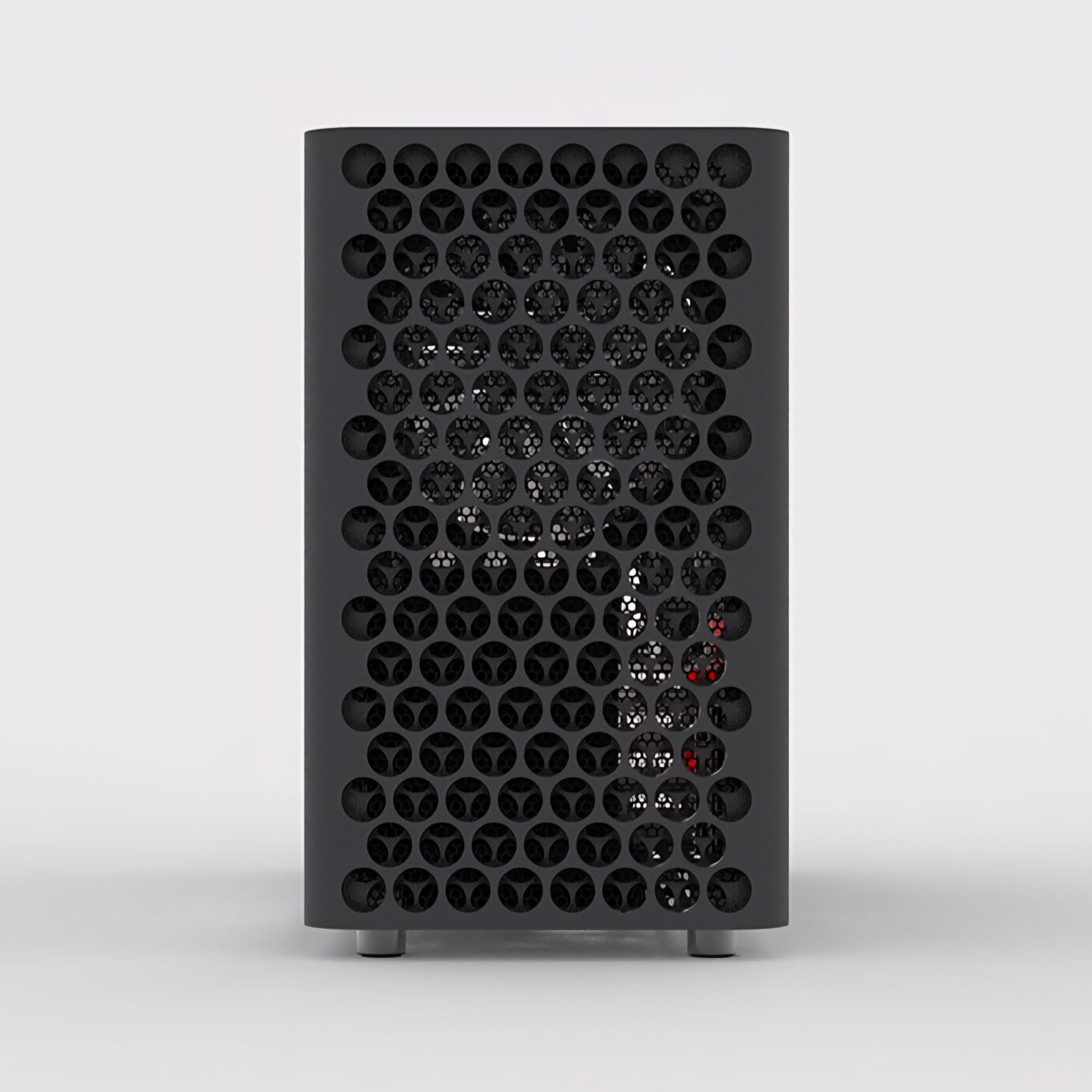

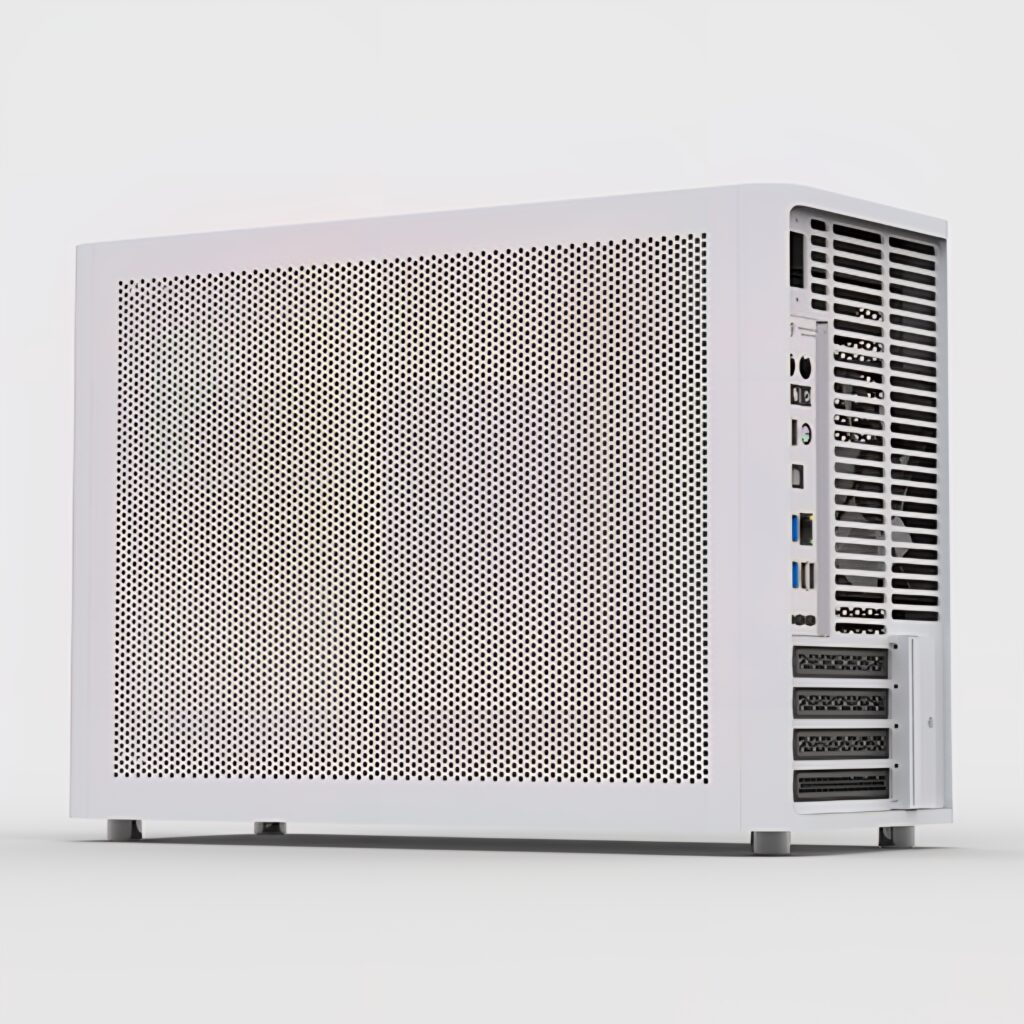

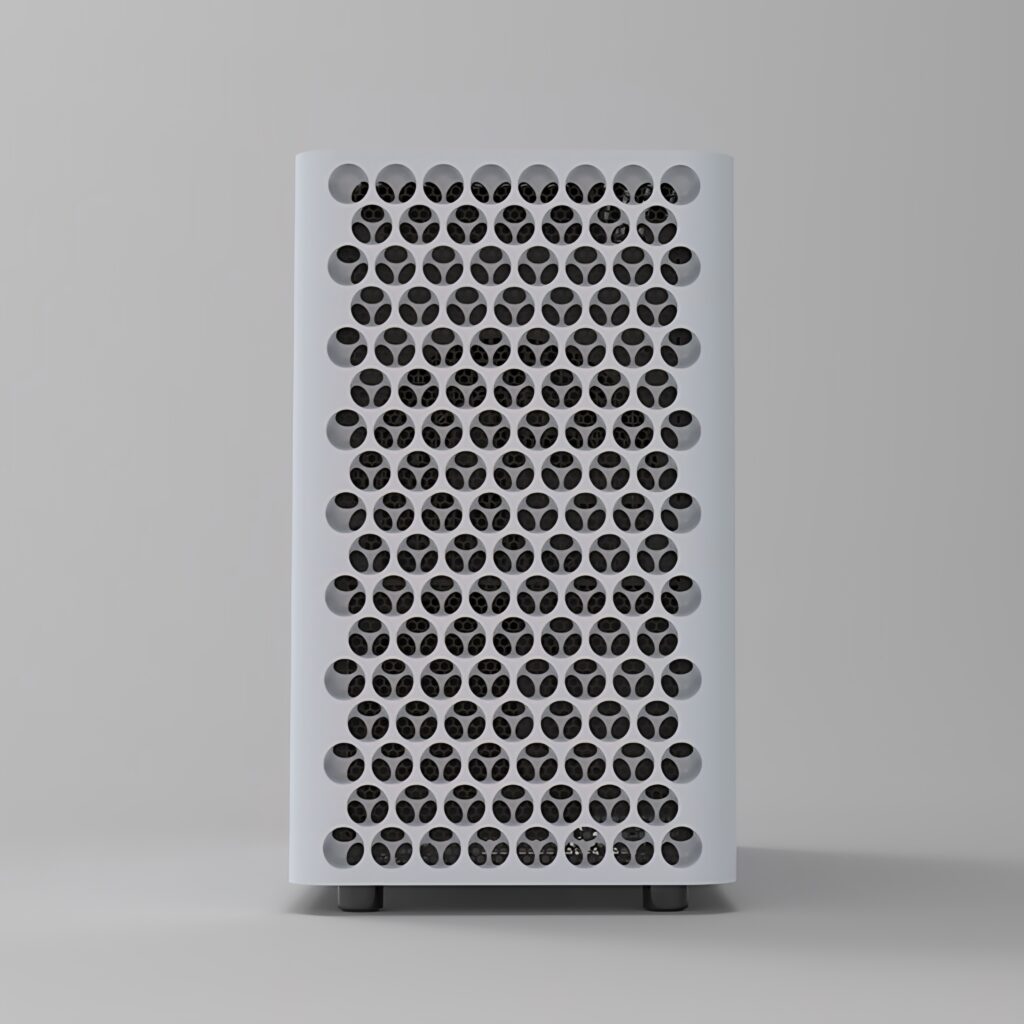

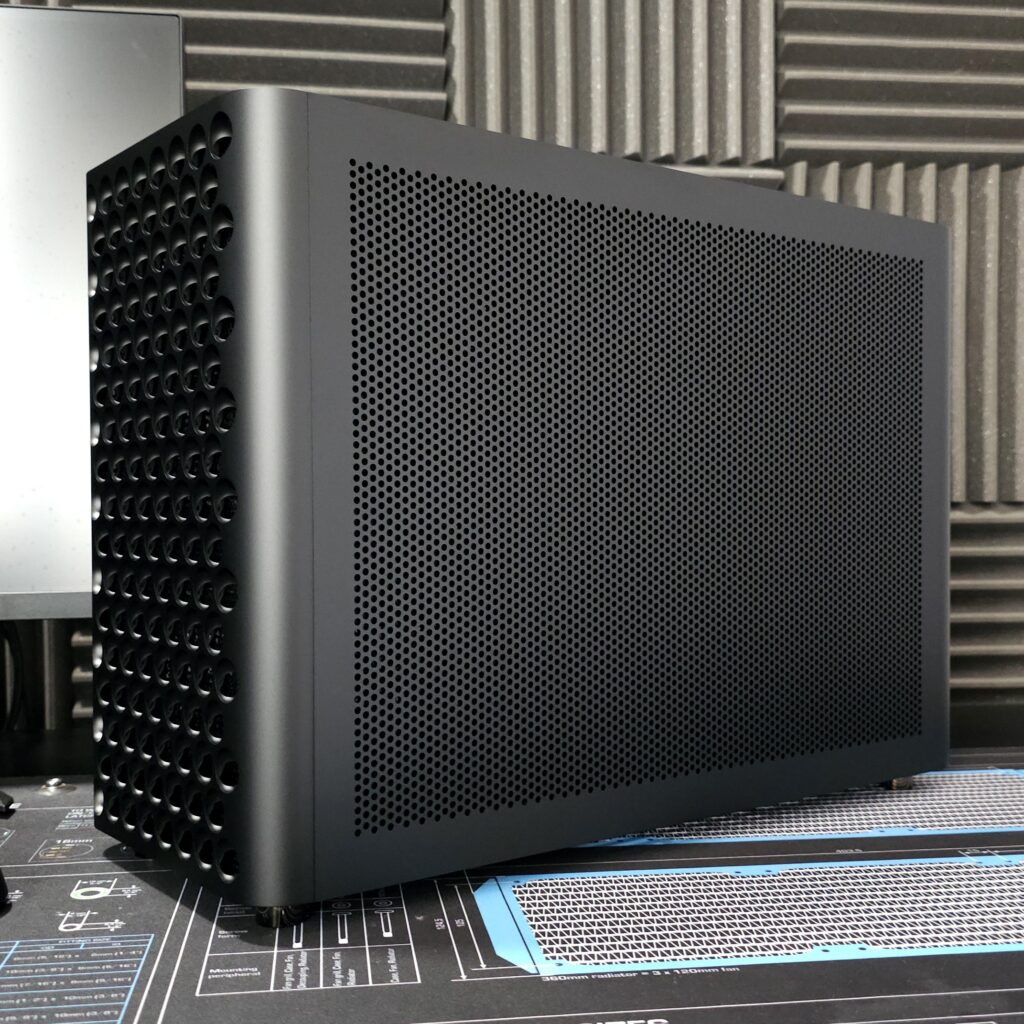

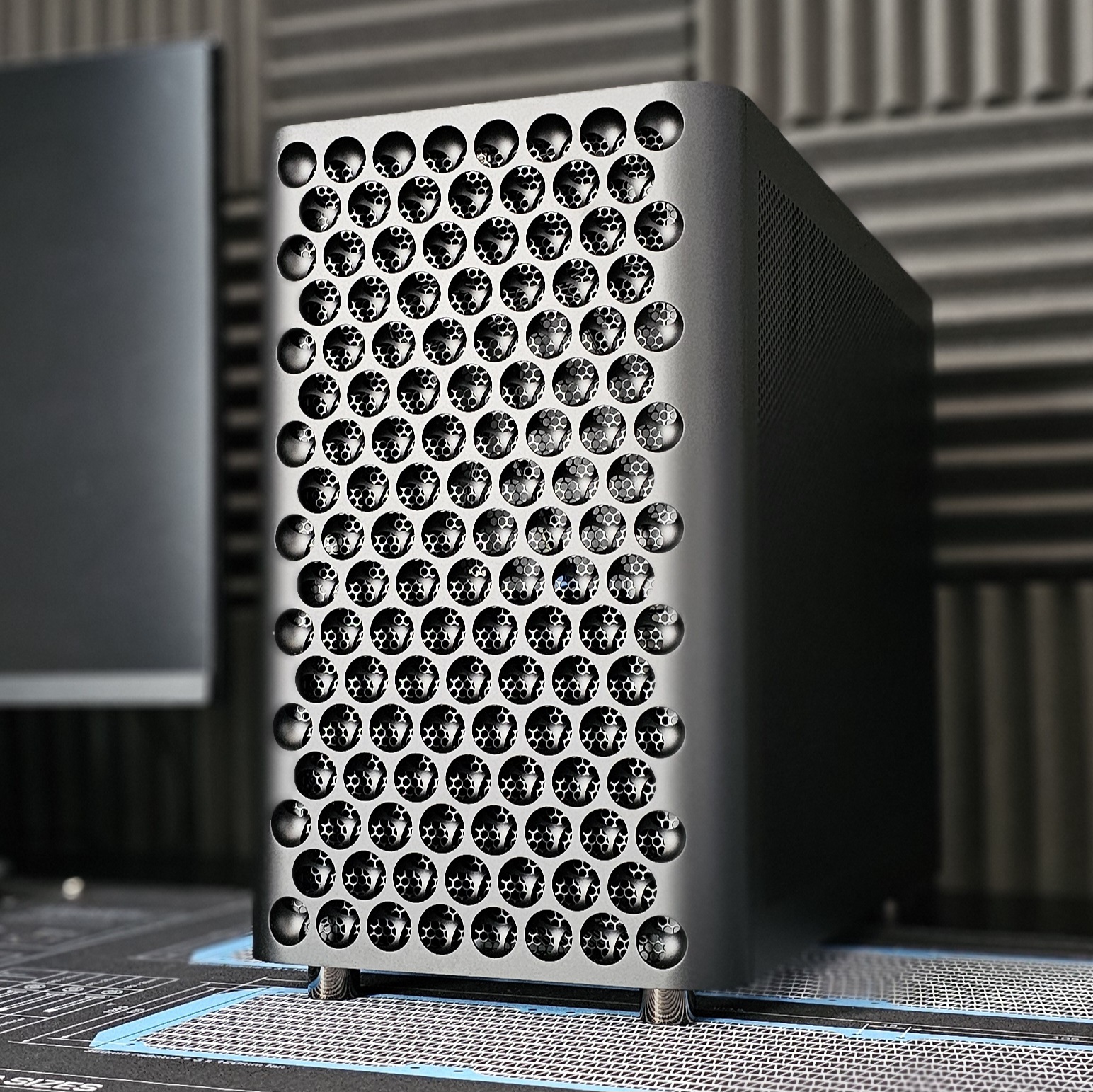

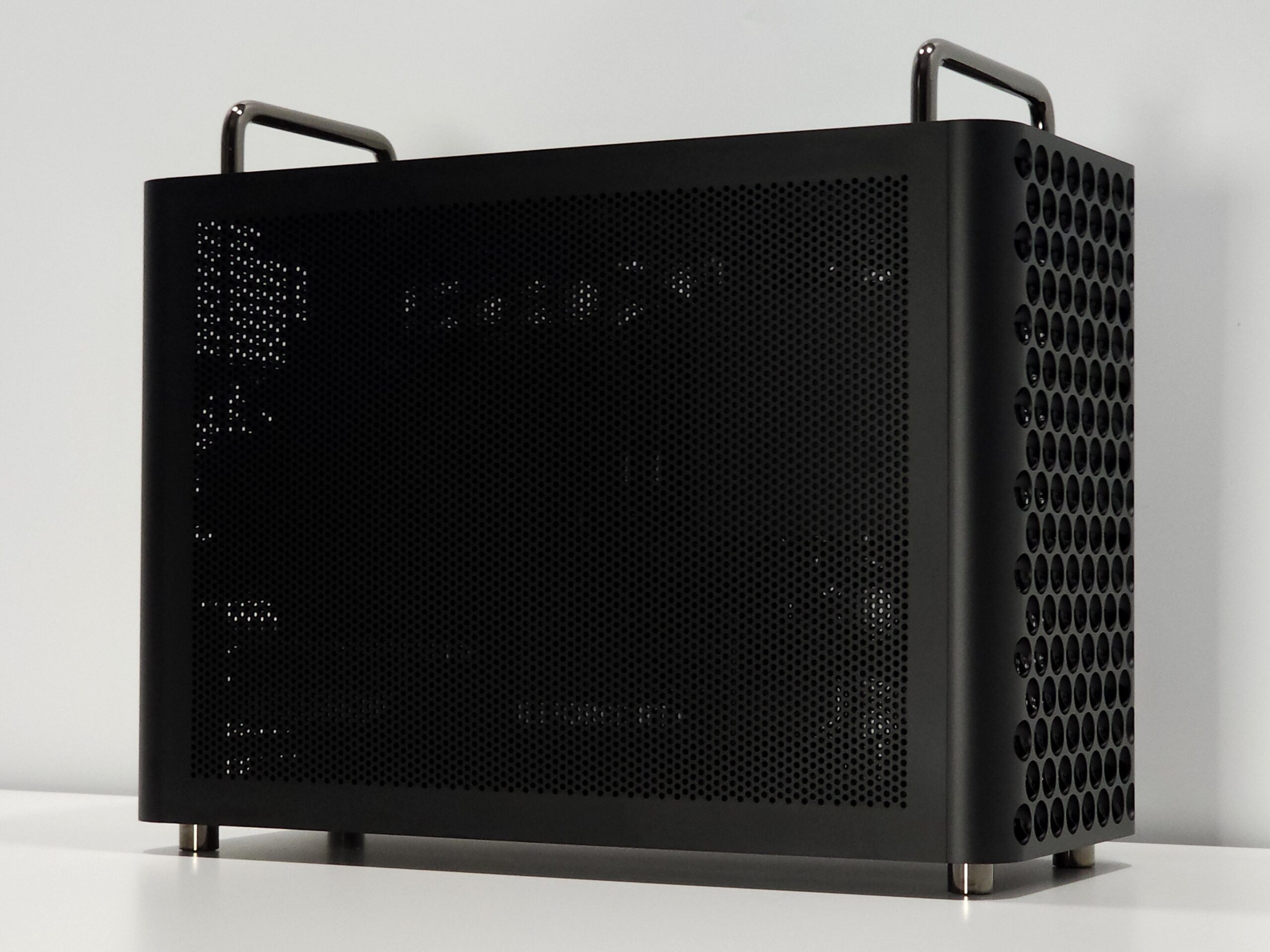

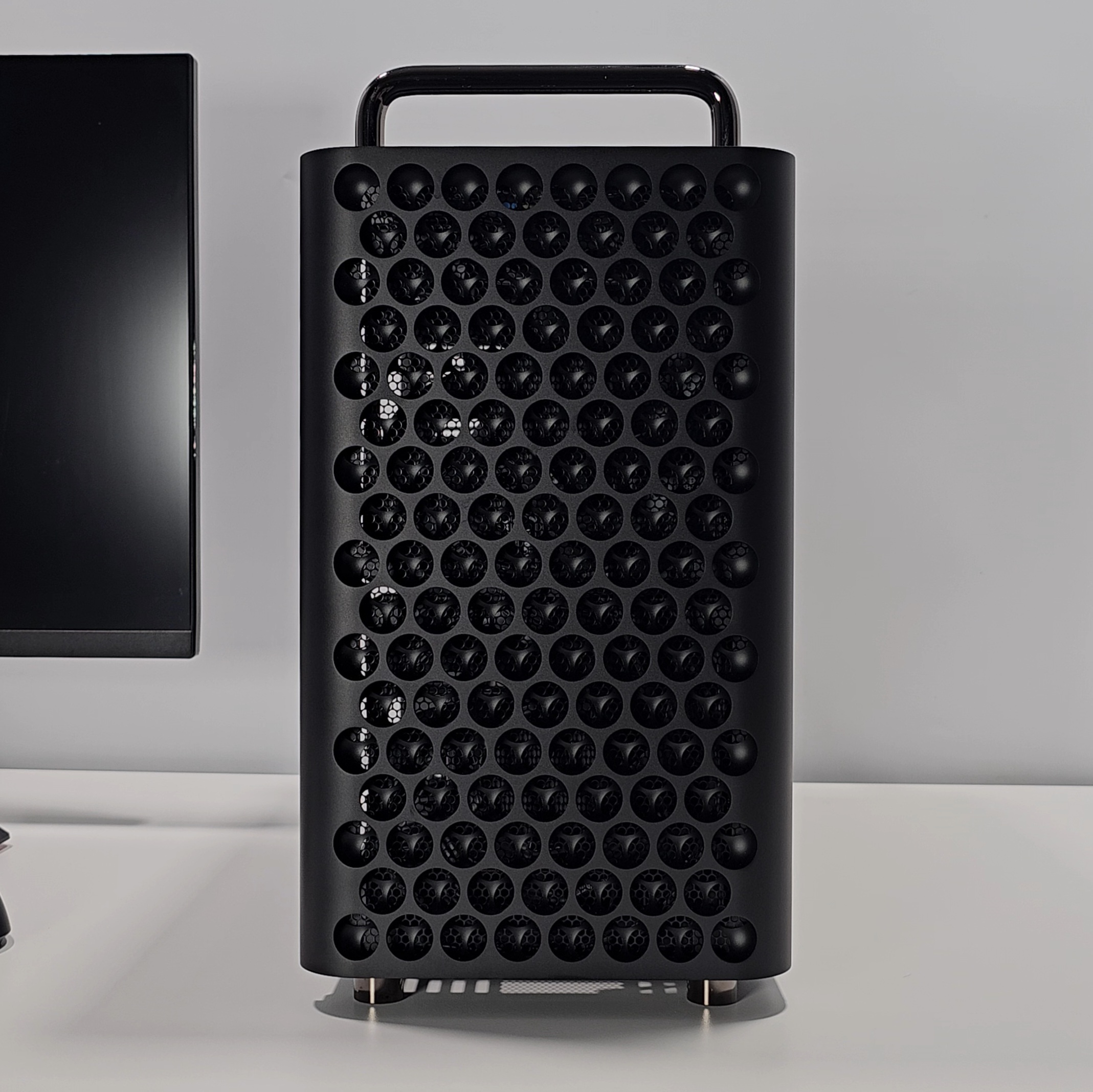

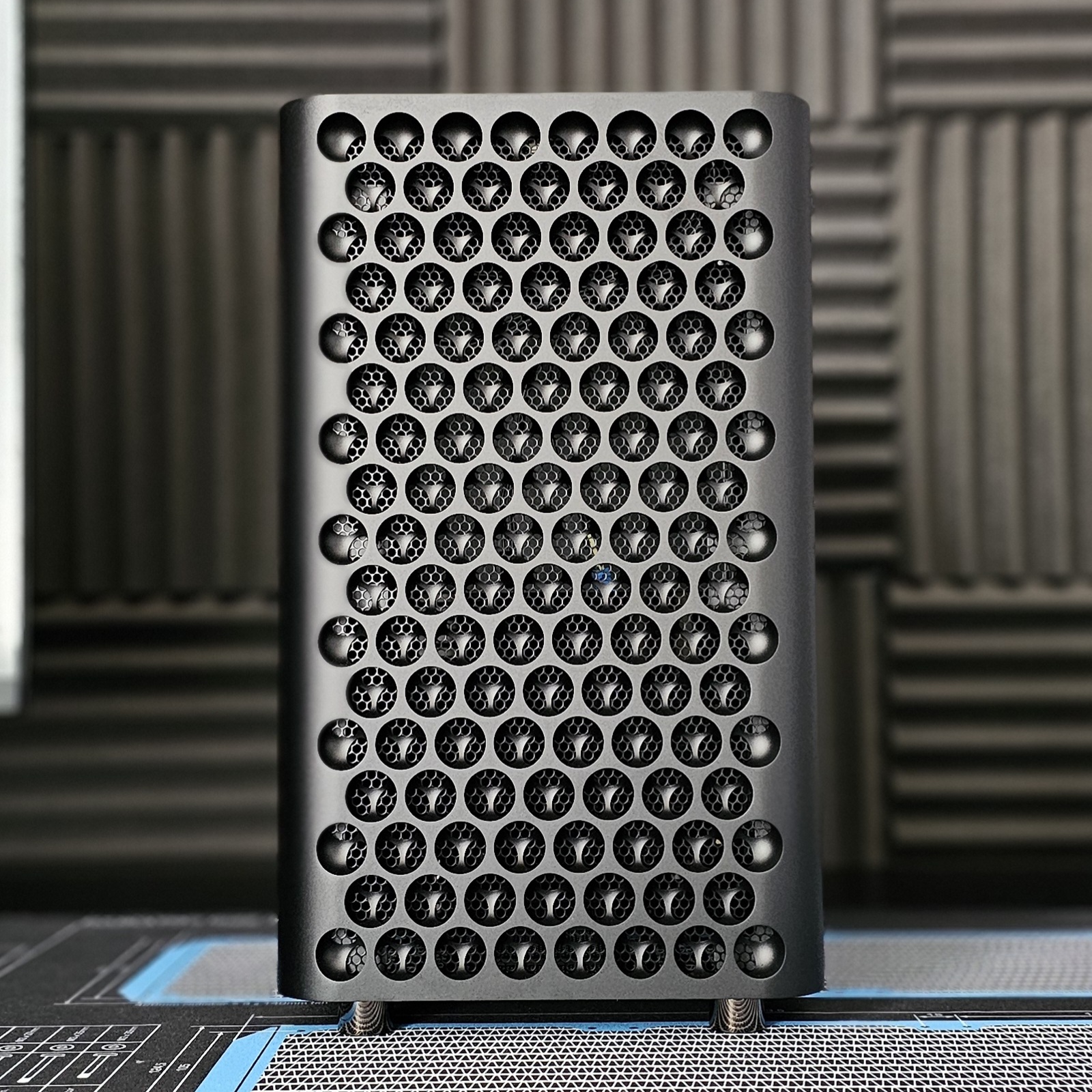

Apollo S Ultra

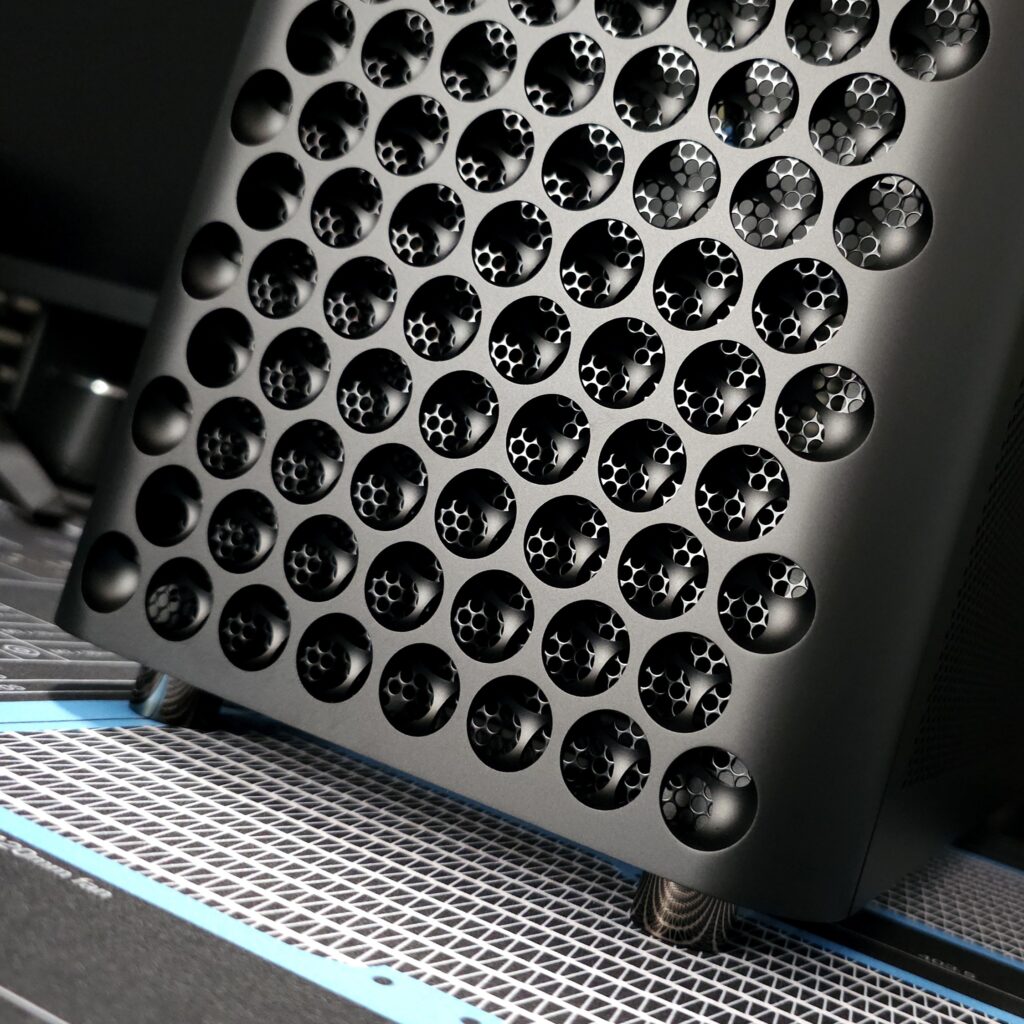

The Apollo S Ultra is m-ATX focused take on MCPRUE’s popular Apollo S SFF Case. Apollo S Ultra is priced at $549 (including shipping) and is available in space black or silver. $49 optional accessory pack is available including case handle and alternate case feet.

SPECIFICATIONS

MODELApollo S Ultra

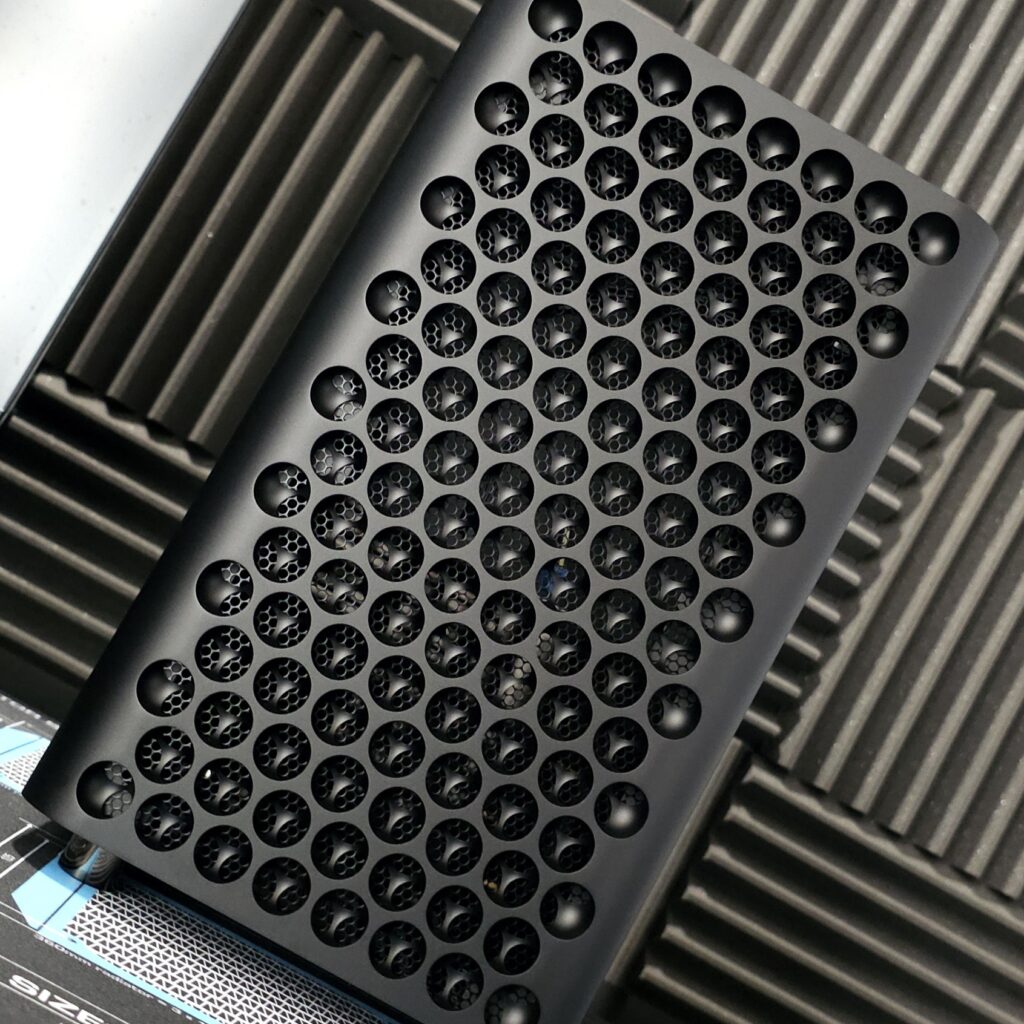

MATERIALST6063 Aluminium (CNC, Anodised)
VOLUME28.9L (excluding case feet, handle)
DIMENSIONS466×195×318mm (L×W×H)
FORM FACTORMFF (Traditional Layout)

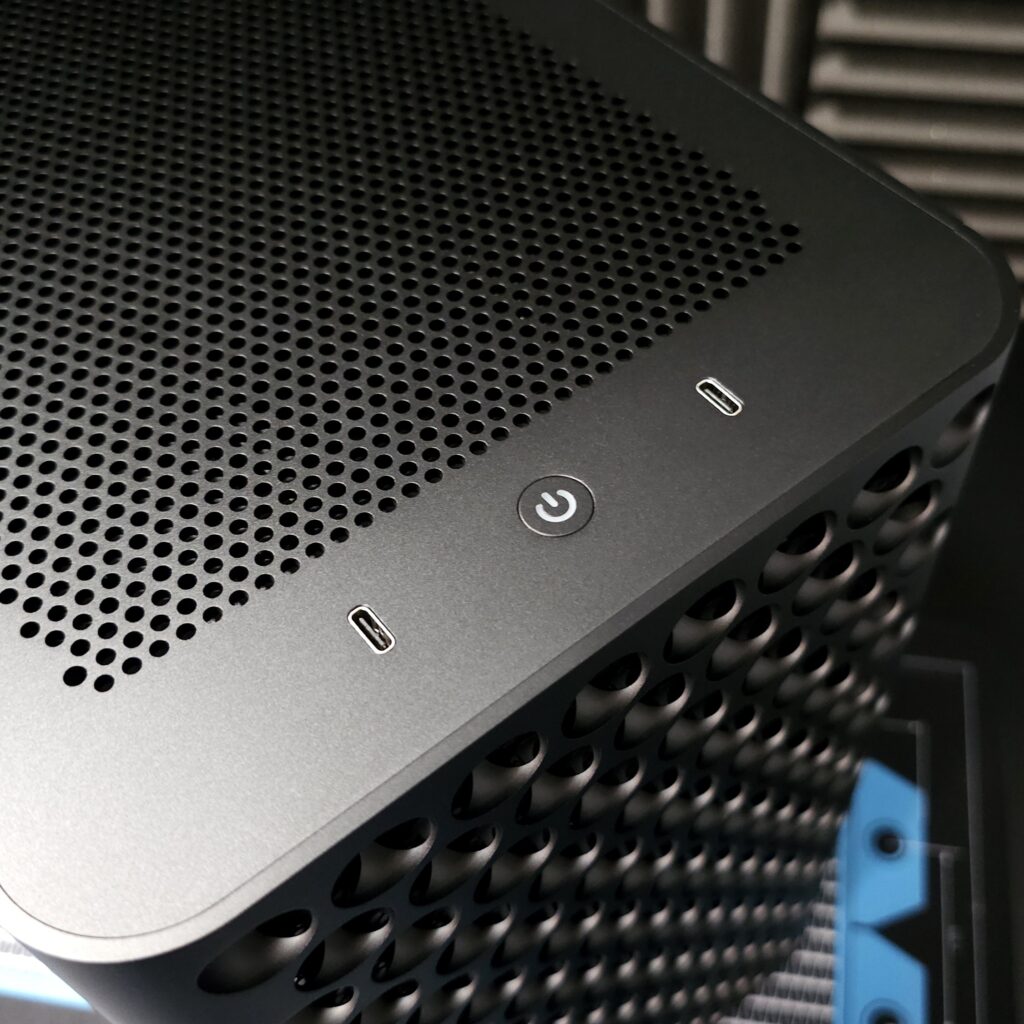

CASE I/OPower Button, USB 3.2 Type-C (Type-E Male), USB 3.0 Type-C (USB 3 20pin)

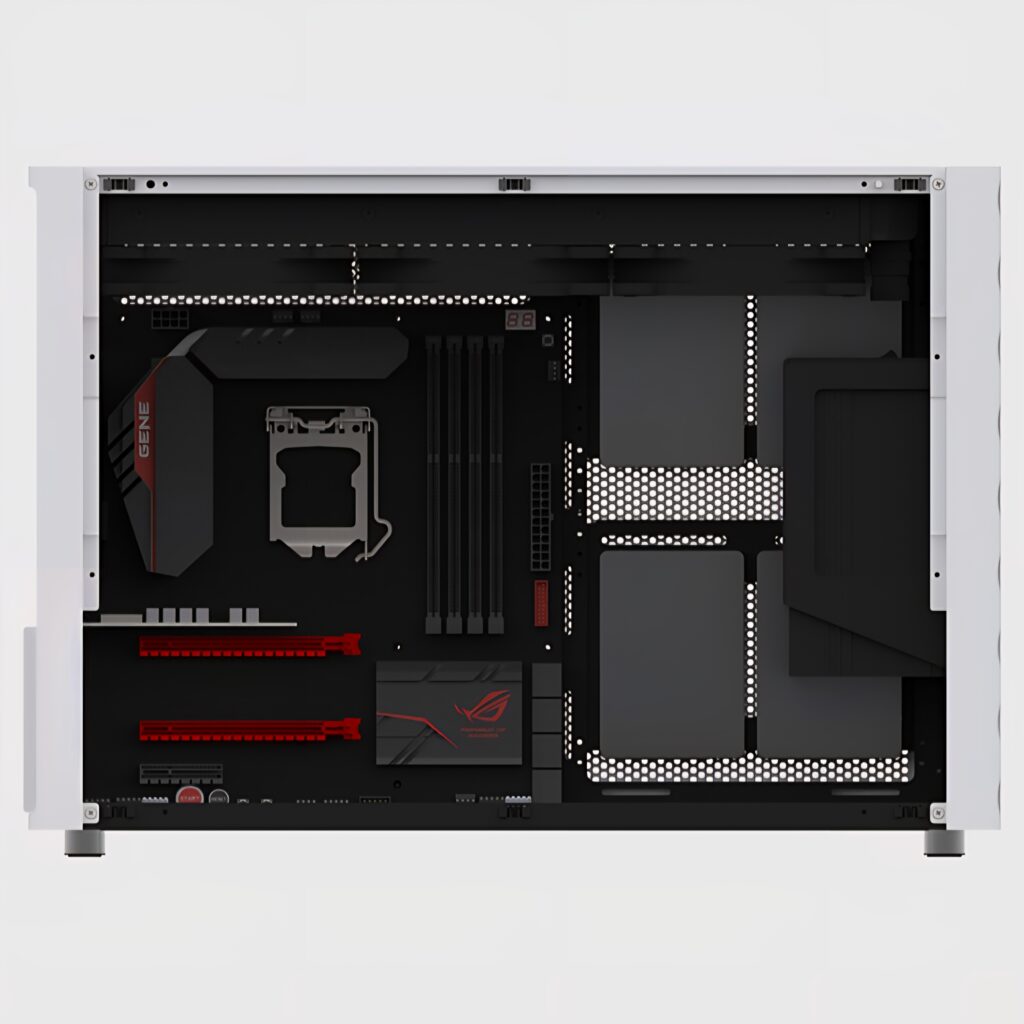

MOTHERBOARD SUPPORTMini-ITX / Deep-ITX / Mini-DTX / Micro-ATX
PCIE EXPANSION SLOTS4
RISER CABLEN/A
COOLER CLEARANCE168mm
GRAPHICS CARD COMPATIBILITY
343×85×165mm (ATX PSU)
365×85×165mm (SFX PSU)

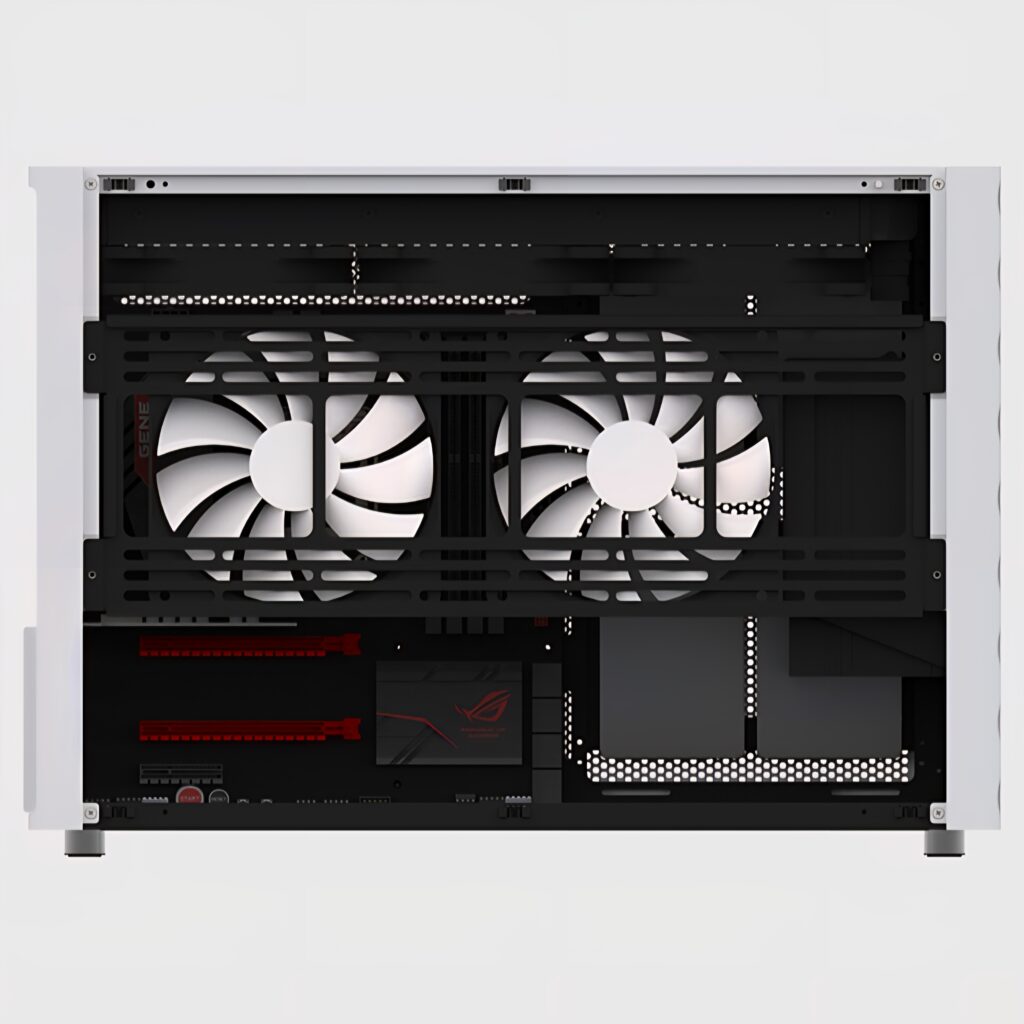

CASE FANS SUPPORTEDTop: 3x 120mm
Front: 2x 140mm
Side: 3x 120mm
Rear: 1x 120mm
Bottom: 3x 120 or 2x 140mm (fans limited to thickness of 15mm, if GPU thickness exceeds 62mm)
LIQUID COOLINGTop: Upto 360
Side: Upto 360 (PSU must be installed on back)
Bottom: Upto 360 (slim radiators may be compatible in fully liquid cooled system)
POWER SUPPLY SUPPORTSFX / SFX-L / ATX

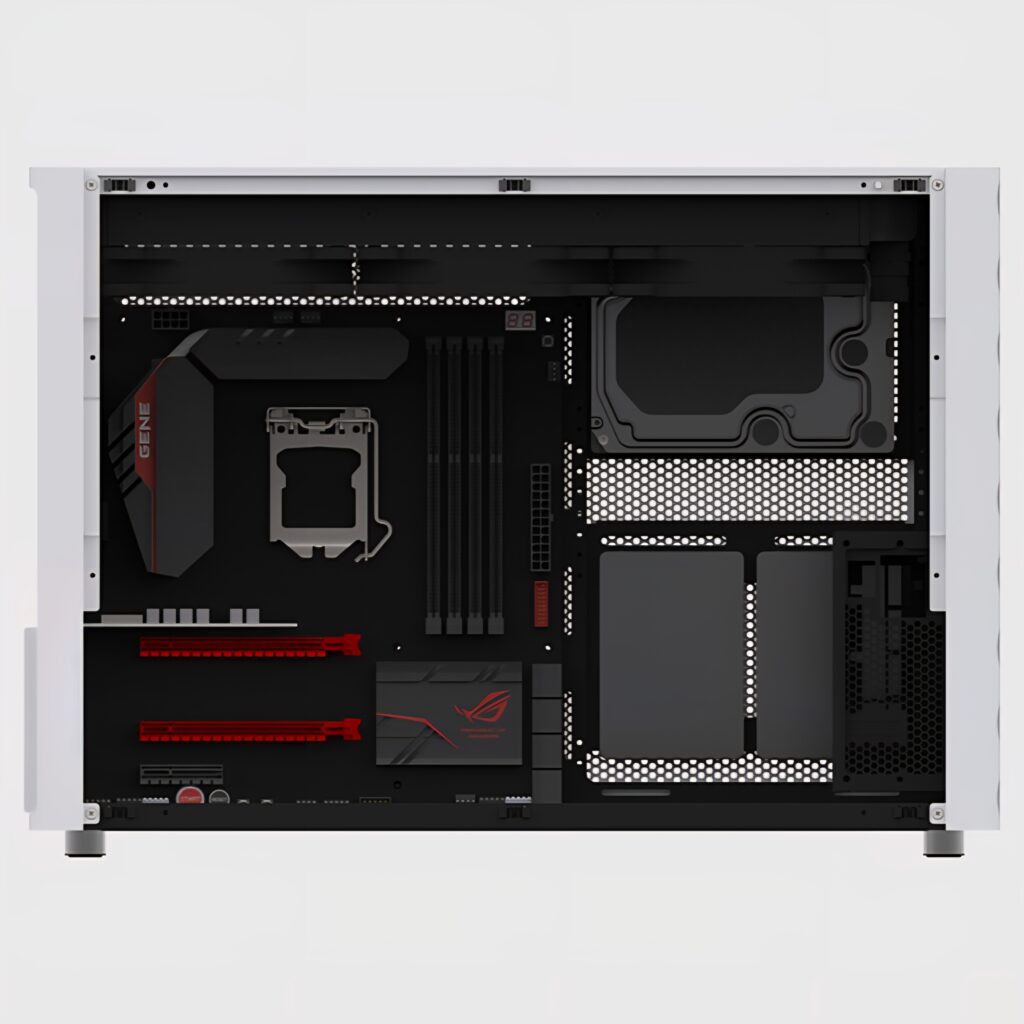

DRIVES SUPPORTED1x 3.5″ + 2x 2.5″ or 4x 2.5″ (based on PSU configuration)
MANUALN

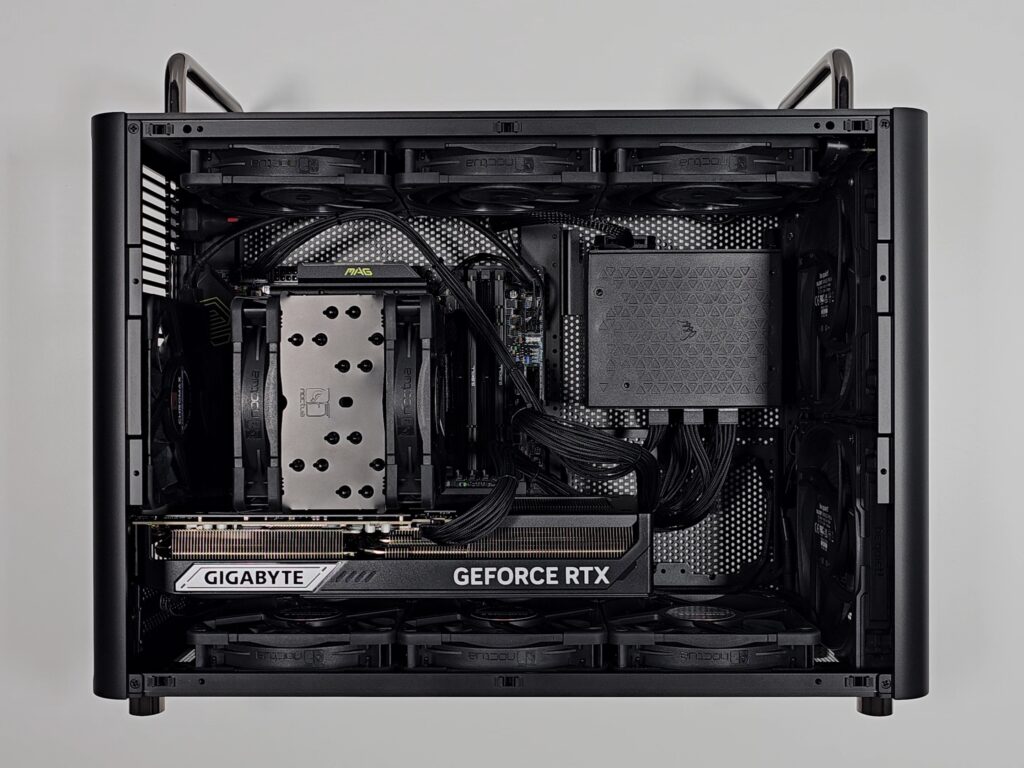

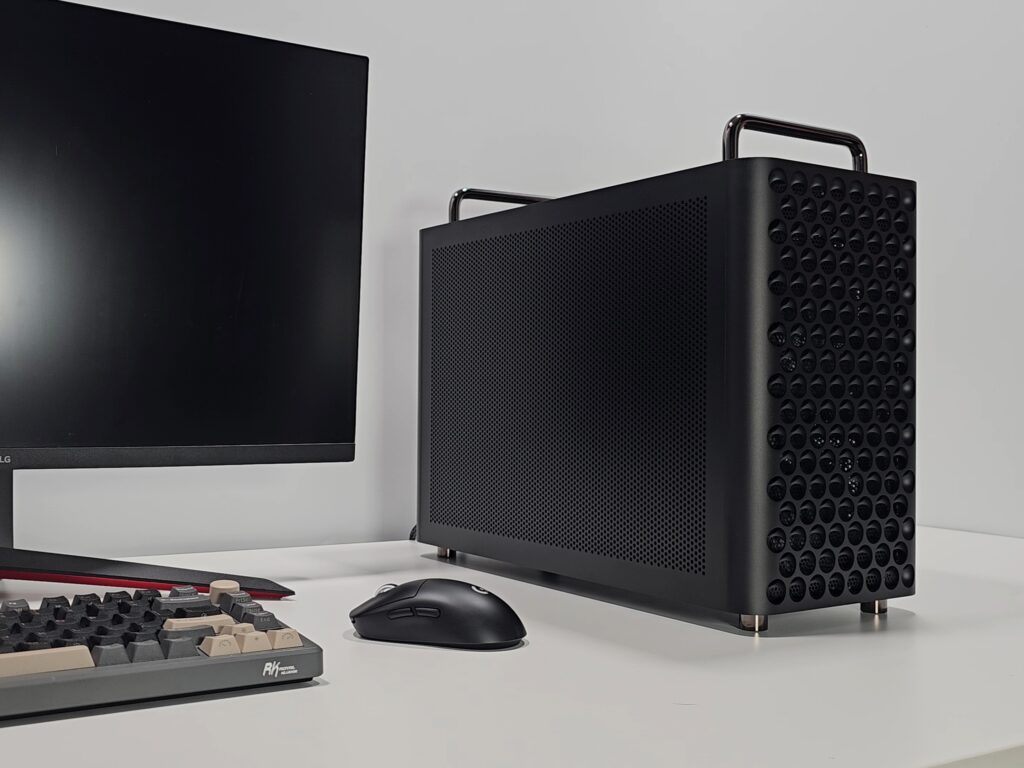

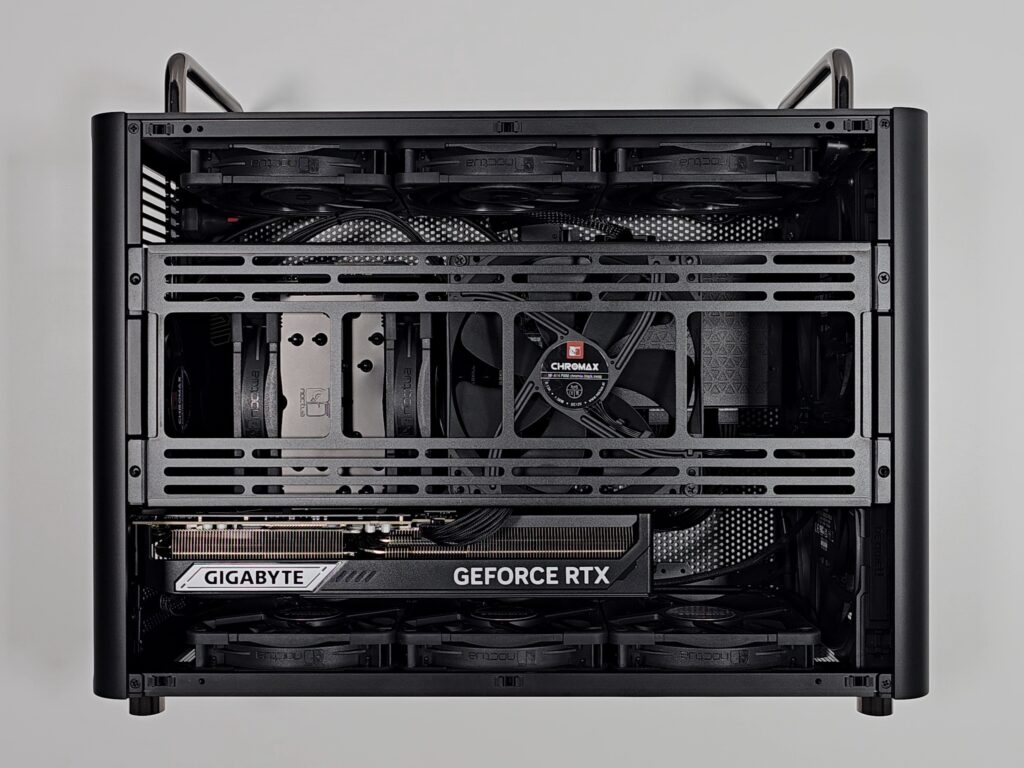

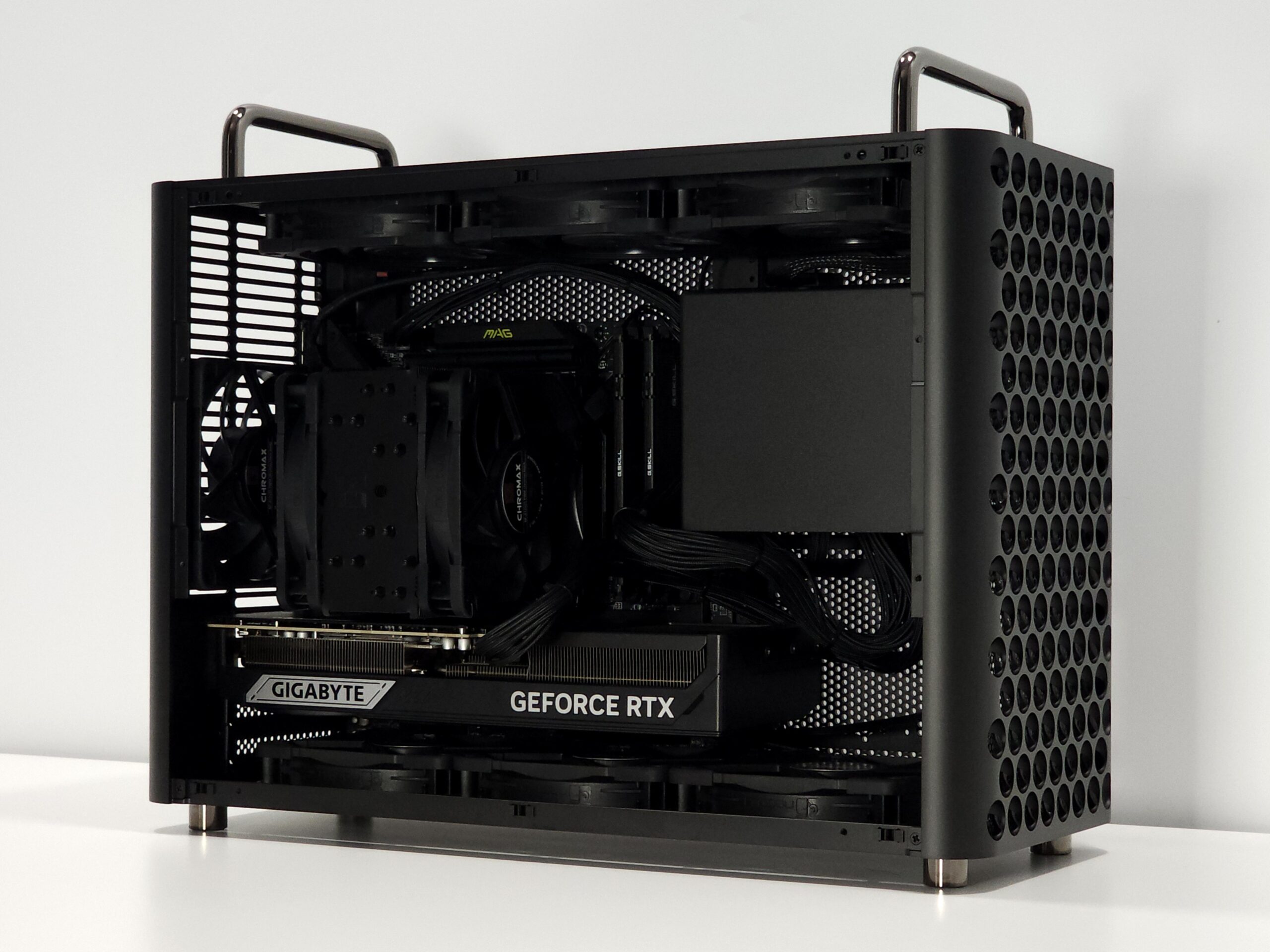

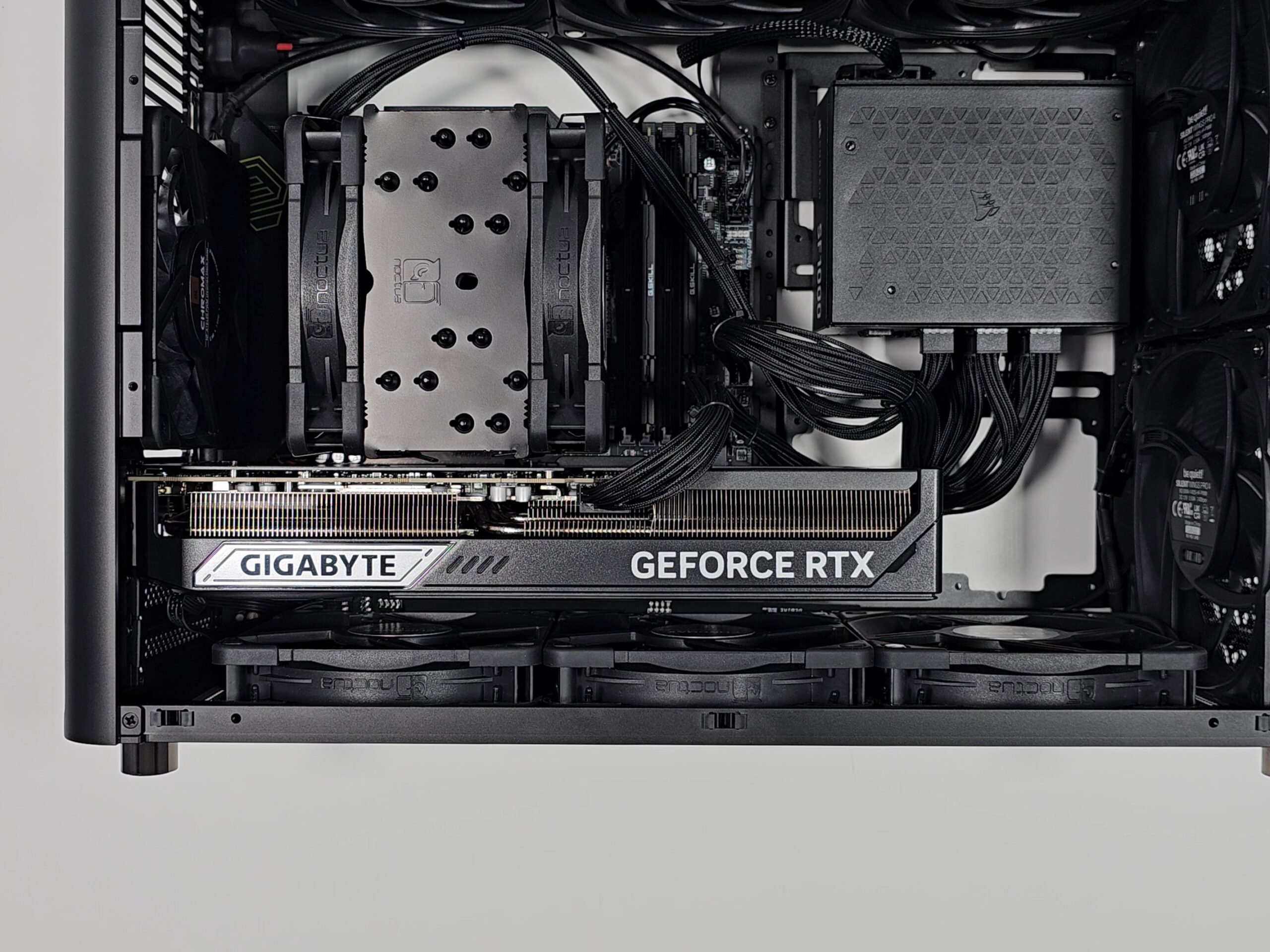

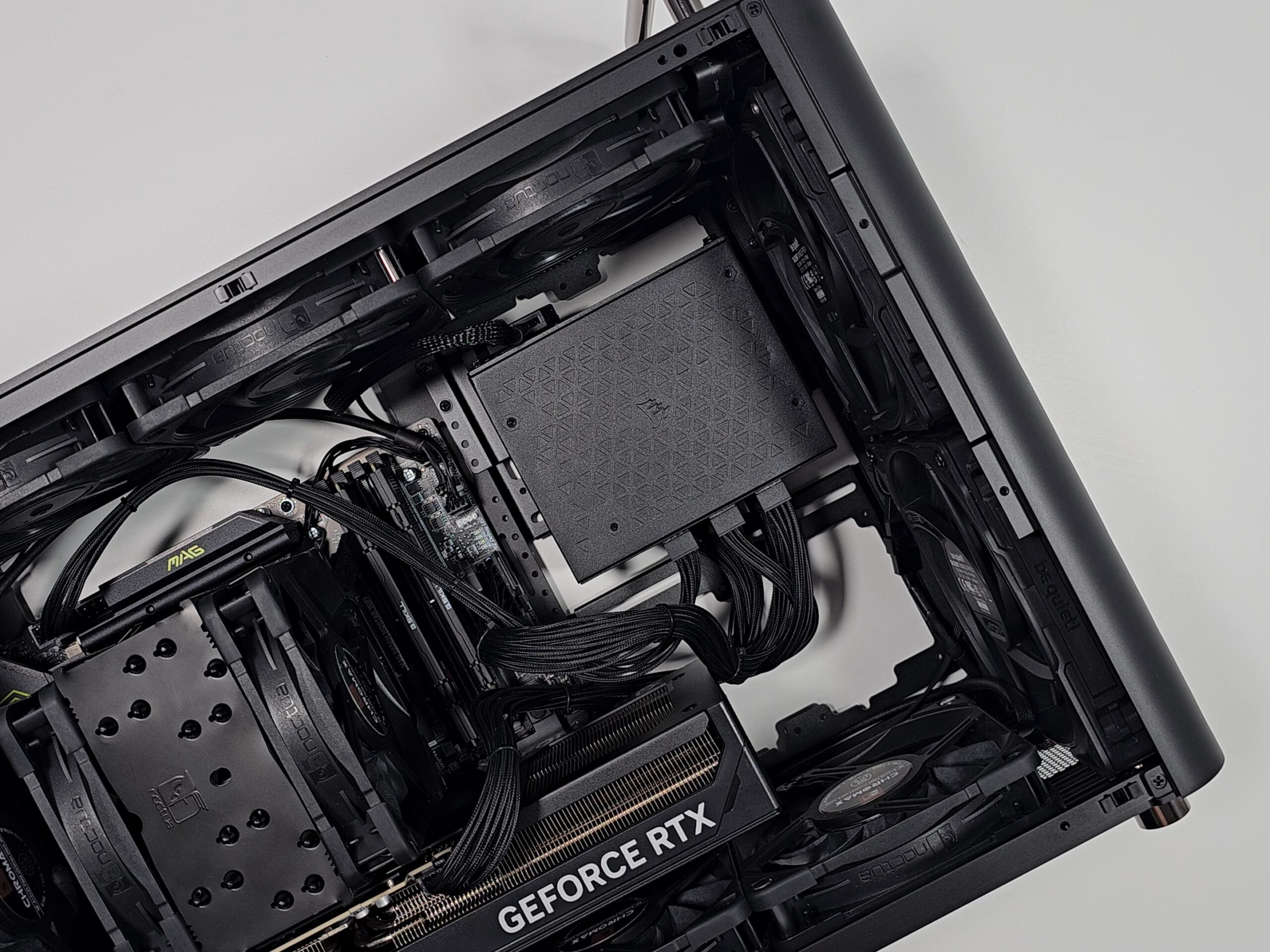

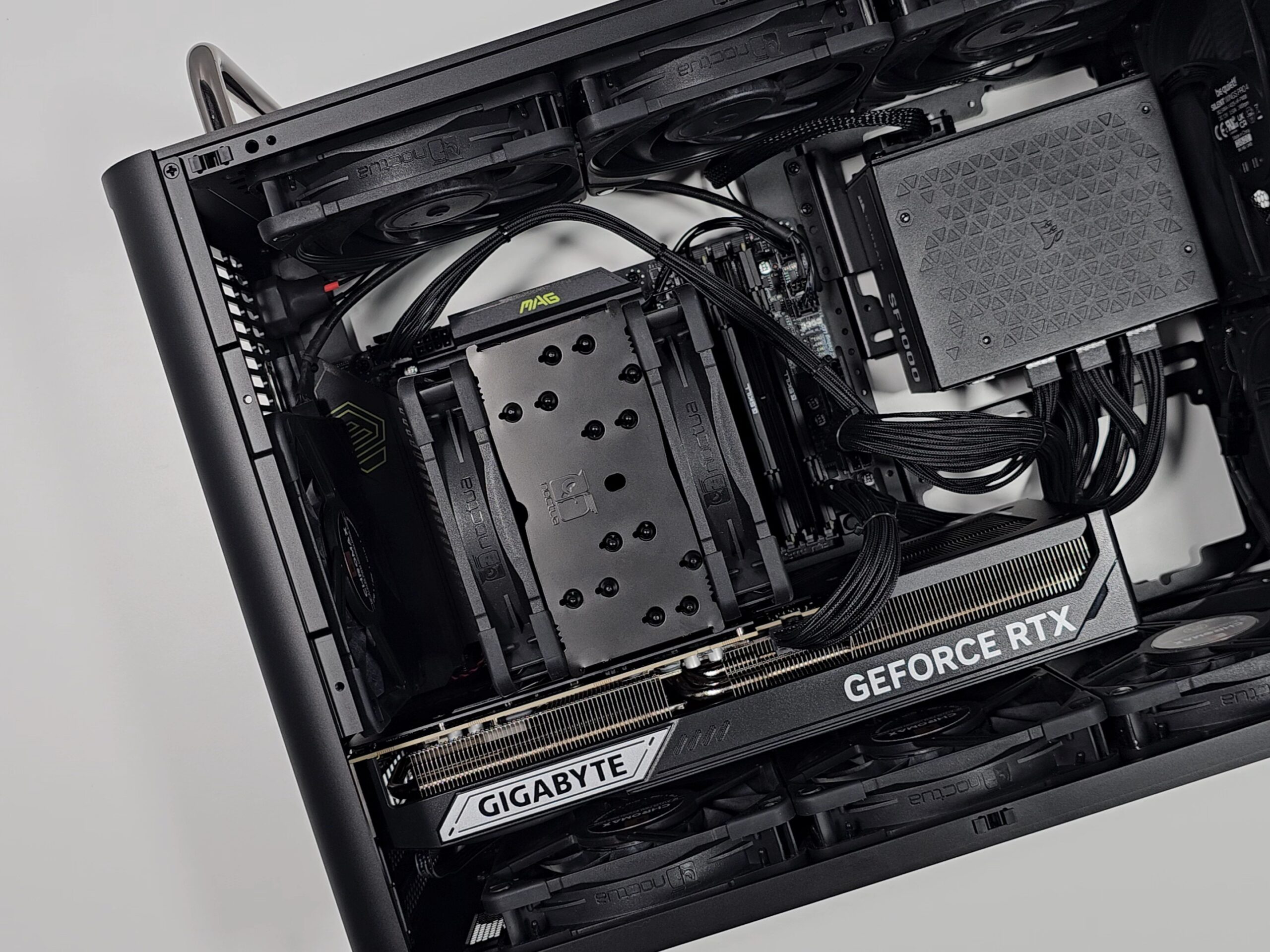

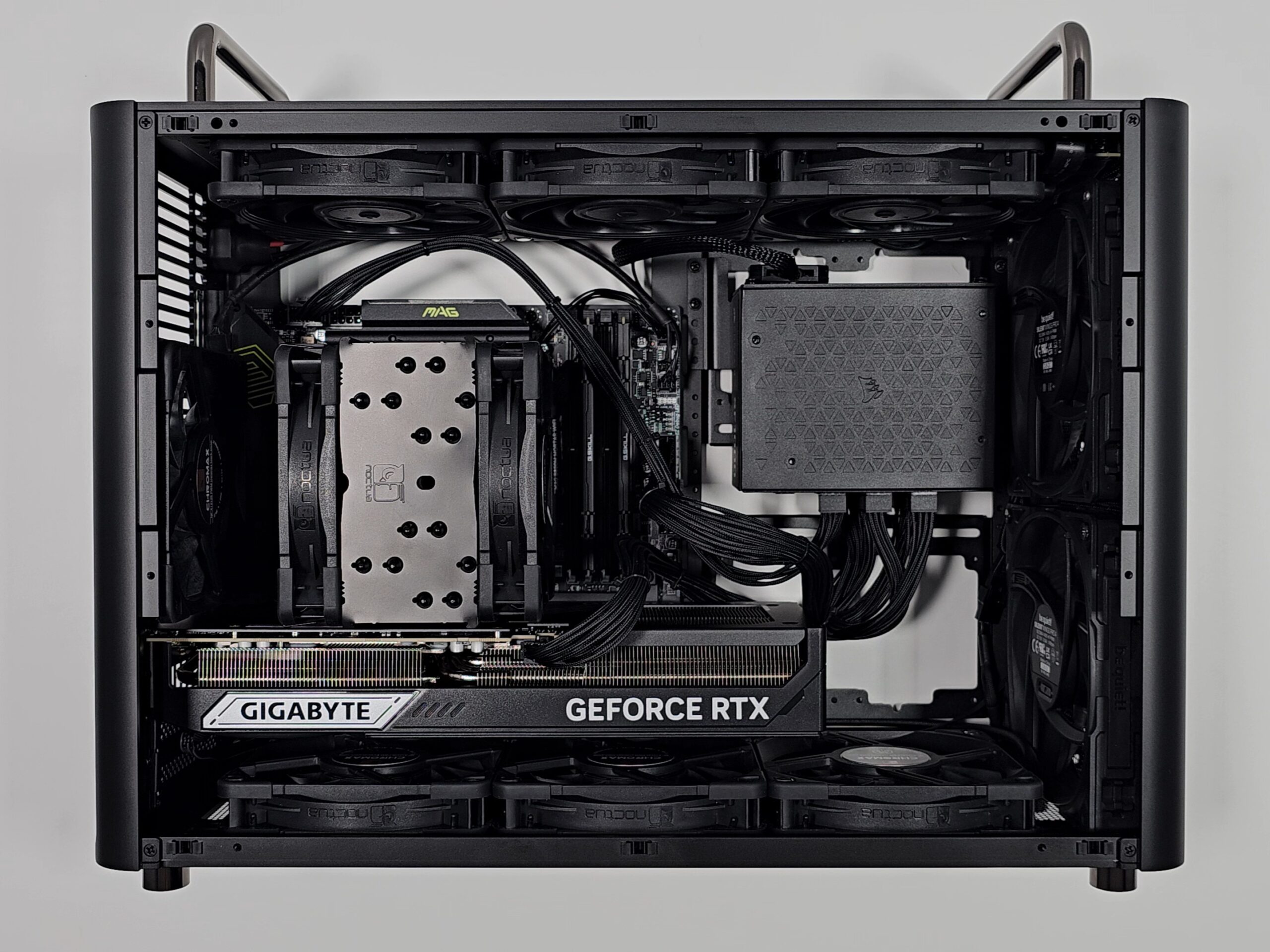

BULD #1

MOTHERBOARDMSI B850M Mortor WiFi (paid link)
CPUR7 7800X3D (paid link)
CPU COOLERNoctua NH-U12A chromax.Black (paid links)
GPURTX 5070 Ti (paid link)
RAM32GB Gskill S5 DDR5, 6000MHz, CL30 (paid link)

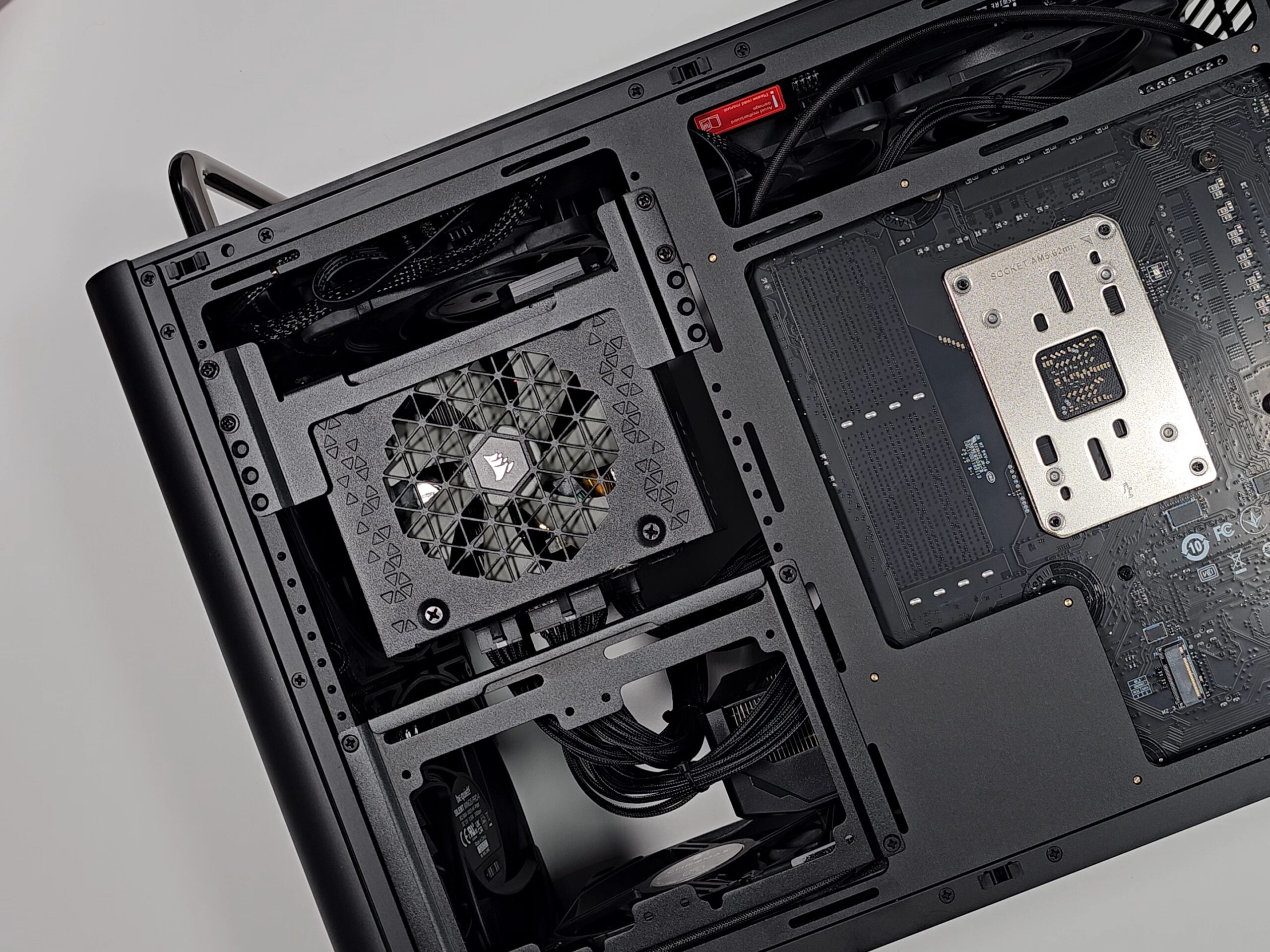

PSU Corsair SF1000 (paid link)
CUSTOM CABLESN/A
STORAGE1TB + 2TB NVME (paid links)
CASE FANSTop Exhaust: 3x NF-A12 (paid link)
Rear Intake: 1x NF-A12 (paid link)
Bottom Intake: 3x NF-A12 (paid link)
Side Exhaust: 1x NF-A14 (optional)
Front Intake: 2x NF-A14 (optional)

CONCLUSIONS

Okay, so where to start… Case design, build quality and tolerances is top notch with few caveats which we’ll get to. No surprise there and is really to be expected for $500 case. Building in the case can be little faffy, as you must install parts in specific order and getting to some screws can be troublesome. Most case fans, AIO and handle/feet accessories must be installed first. Swapping out the top case fans means removing the GPU, PSU and motherboard, only PSU needs removed for front fans. I found it a little cumbersome imo. This isn’t abnormal for small builds, but felt particularly noticeable with Apollo S Ultra. The case supports upto 10 case fans with an air coolers depending on GPU configuration. Hardware cooling isn’t going to be a problem and means you can run case fans at low static speeds. We suggest max of 30/40% fan speeds so things run nice and quiet 🤫.
