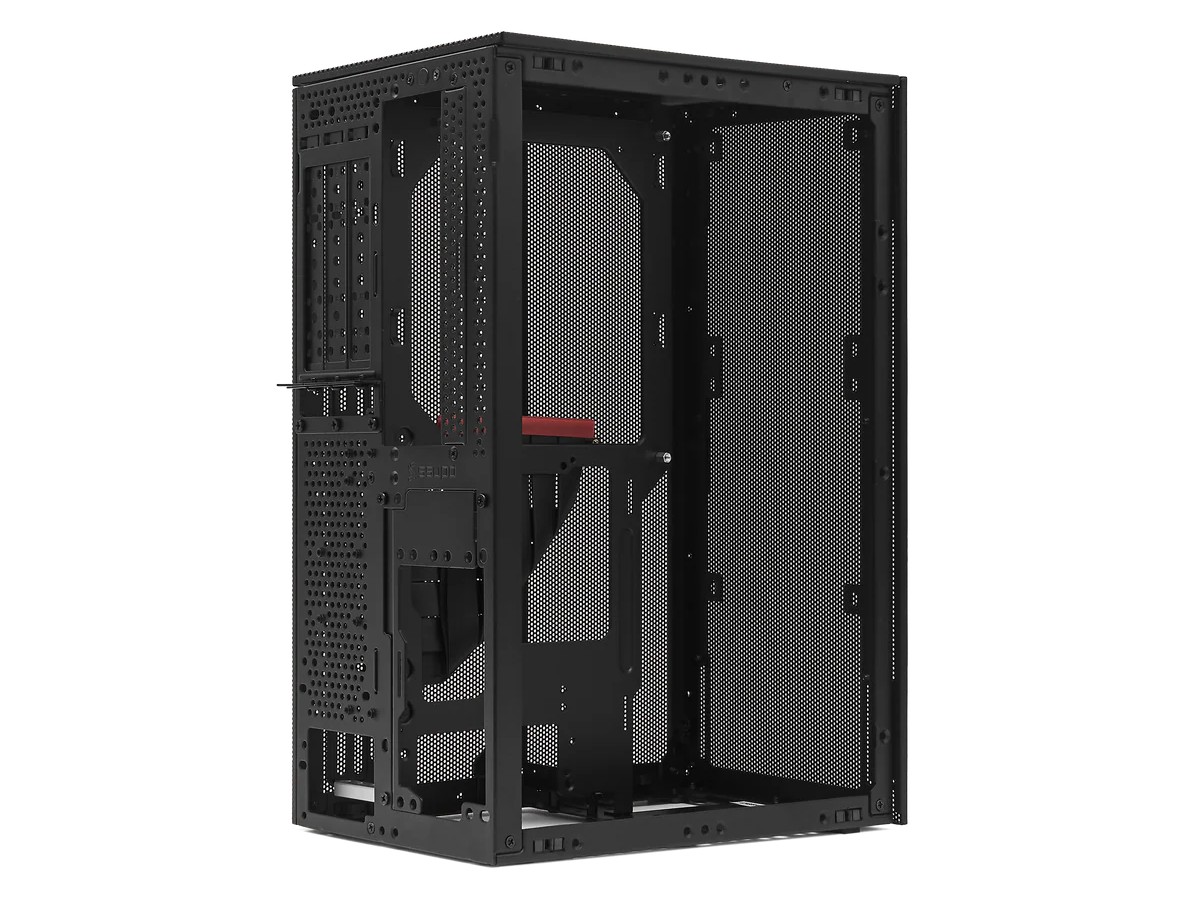

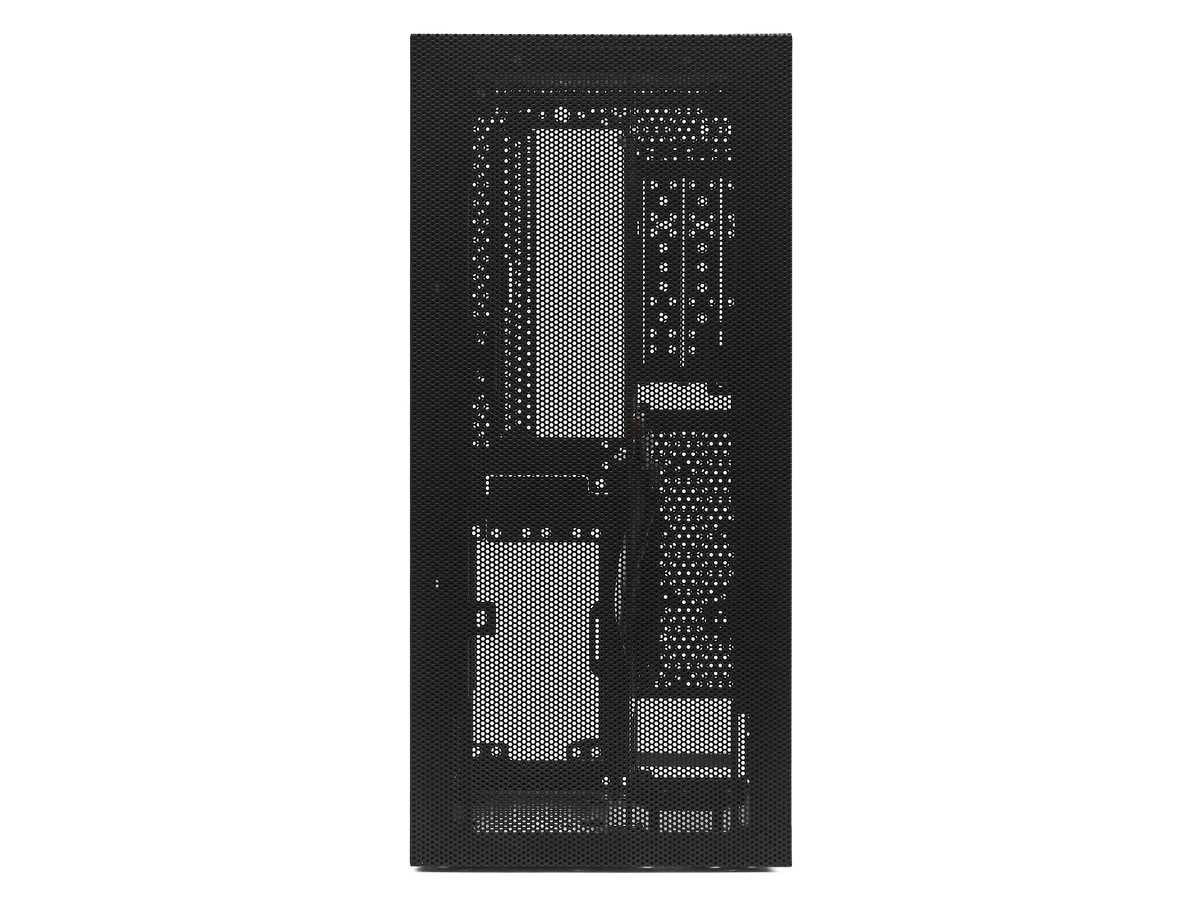

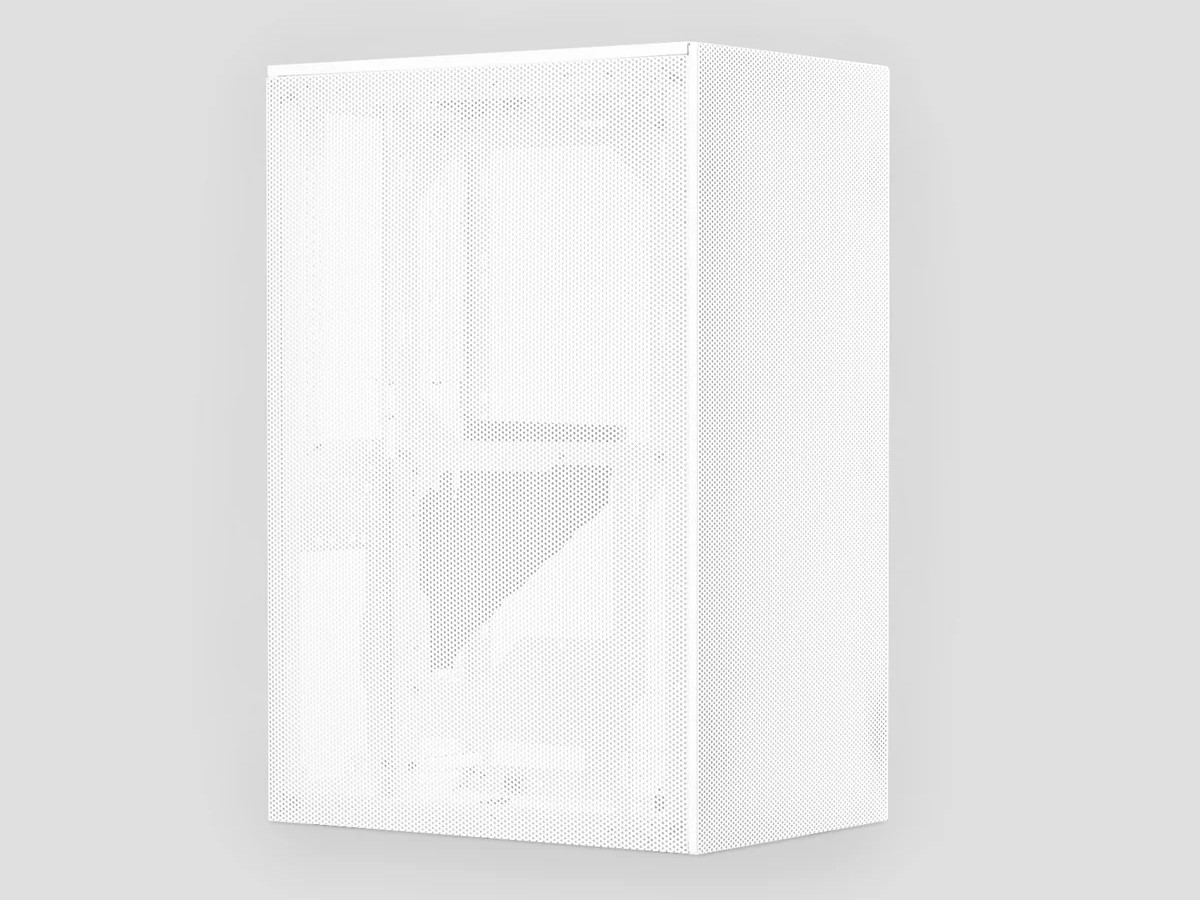

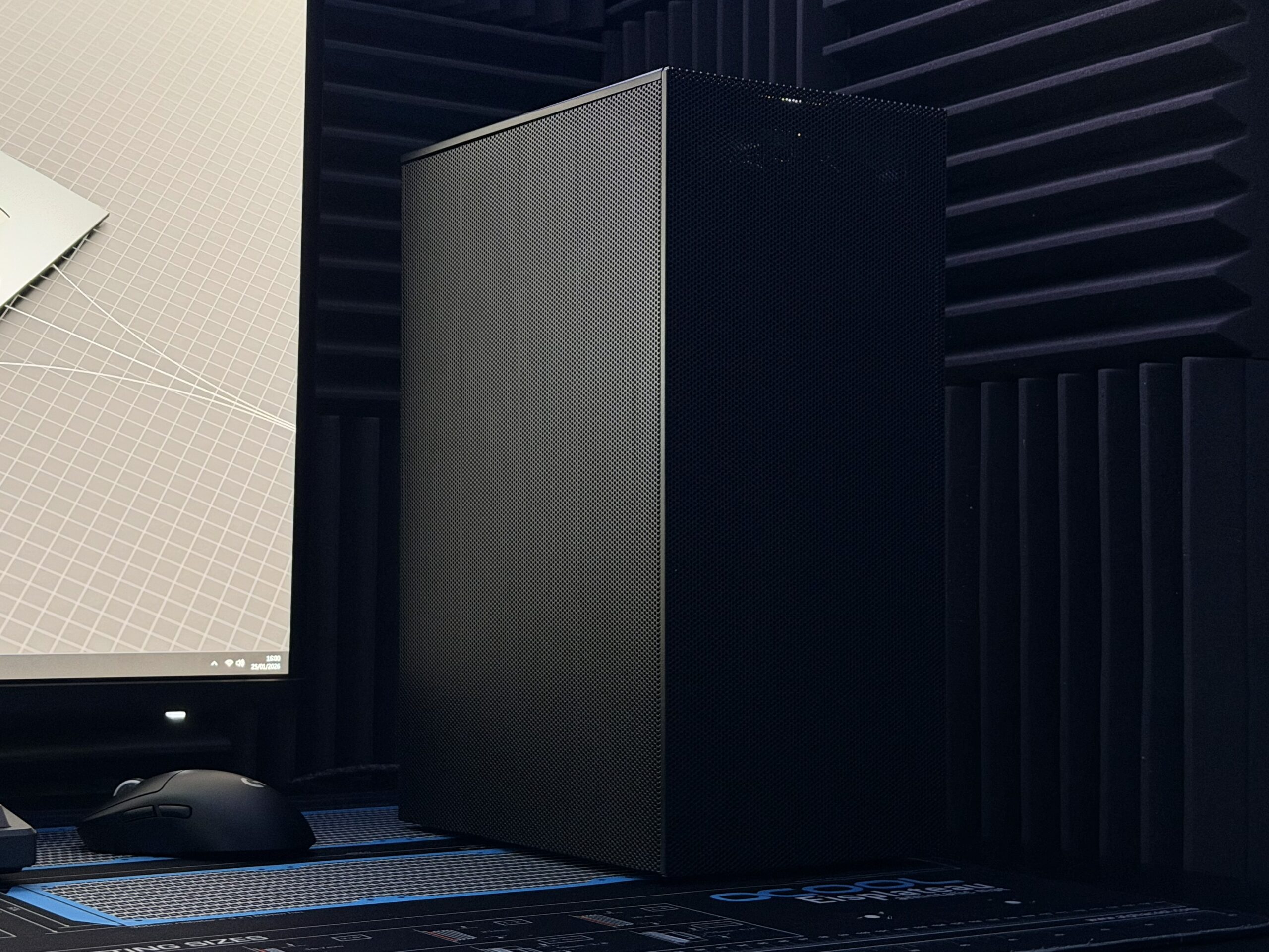

Meshroom S (SSUPD)

Meshroom S is available for purchase on CaseKing.de, Overclockers UK & Newegg.

SPECIFICATIONS

CASEMeshroom S
DIMENSIONS247 x 167 x 362mm (L x W x H)
VOLUME 14.93L
MATERIALSSGCC Steel

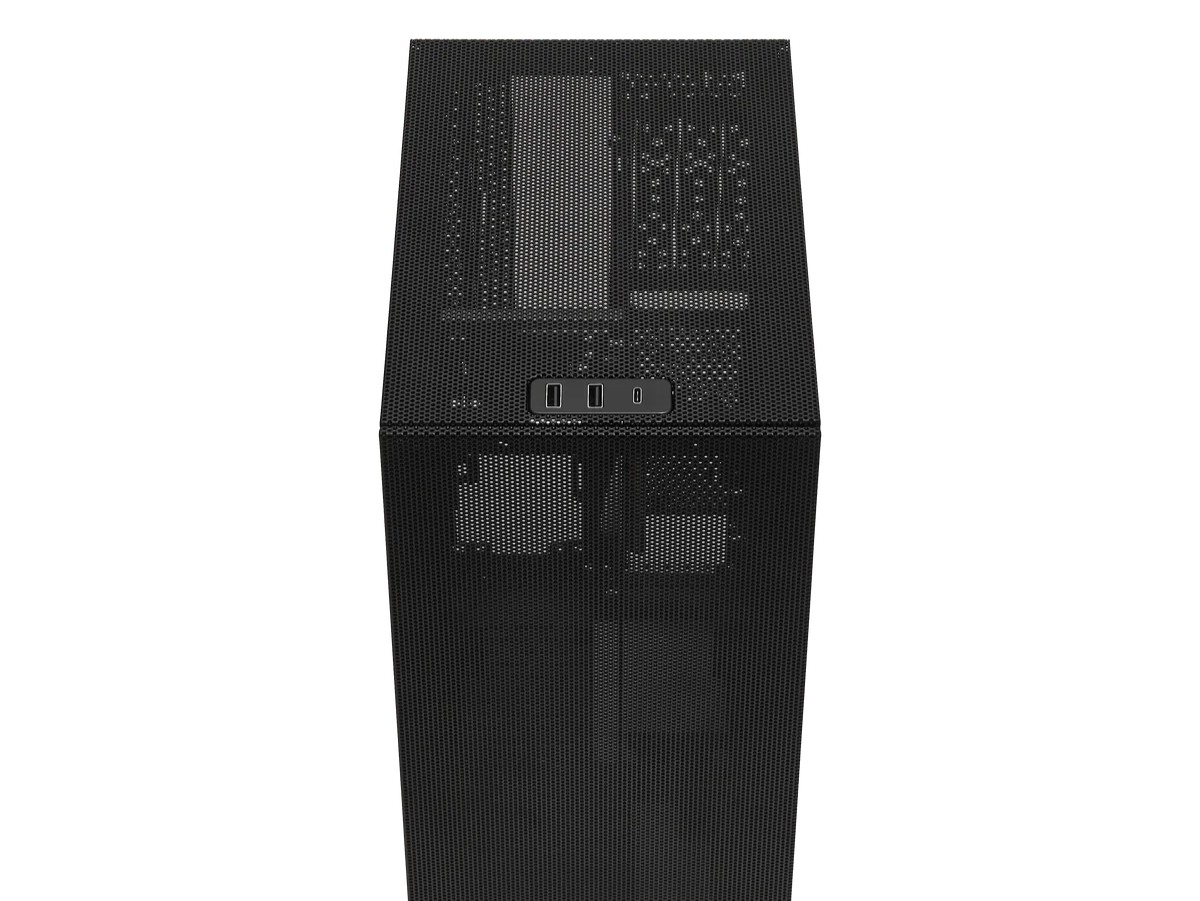

I/O2x USB 3.2 (Gen 1); 1x Type-C 3.2 (Gen 2)
MOTHERBOARD COMPATIBILITYMini-ITX, Mini-DTX, M-ATX, ATX (PCIe cable not included)
MAX CPU COOLER HEIGHT73mm (3 Slots GPU Mode)
53mm (4 Slot GPU Mode)
EXPANSION SLOTS3 (small form factor GPU) / 4 (Full Length GPU)
MAX GPU LENGTH336mm (4 Slot GPU Mode);
332mm (3 Slot GPU Mode);
211mm (Small Form Factor GPU Mode)

316mm (ATX MB GPU High Position);
307mm (ATX MB GPU Low Position)
MAX GPU THICKNESS60mm
RADIATORS SUPPORTEDFront: 1x 240 / 1x 280mm
Right Side: 1x 240mm (28mm thick radiator) with 15mm thick fans allow 1.9 slot (40mm) thick GPU
POWER SUPPLY COMPATIBILITY SFX, SFX-L, ATX
CASE FANS SUPPORTEDTop: 1x 120x15mm (Max GPU Length: 317mm)
Front: 2x 120 / 2x 140mm
Right Side: 2x 120mm (3 Slots GPU Mode with 1.9 slot (39mm thick) GPU;15mm thick fans with 2.4 slot (49mm thick) GPU
2.5 / 3.5” DRIVES SUPPORTED3x 2.5” (7x 2.5″ with small form factor GPU) / 2x 3.5″ (with small form factor GPU)

BUILD

CASEMeshroom S (SSUPD)
MOTHERBOARDRog Strix B660-I Gaming WiFi (paid link)
CPUIntel 12700K (paid link)
GPURX 6900XT / 3060 Ti FE (paid link)

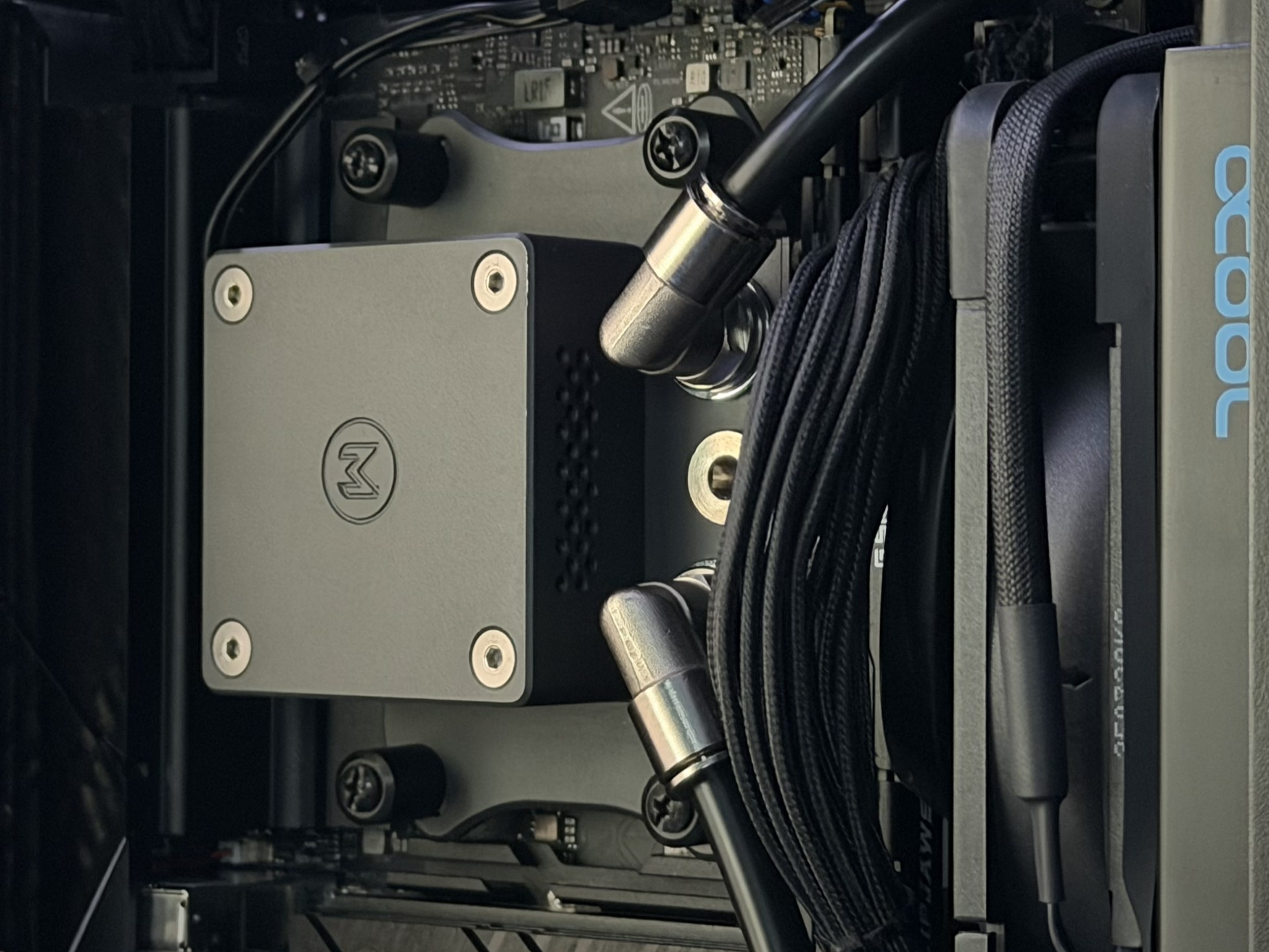

CPU BLOCKAlphacool Eisblock XPX Pro Aurora (black)
GPU BLOCKAlphacool Eisblock Aurora Acryl GPX-N RTX 3070 Founders Edition / Eisblock Aurora for Radeon RX 6800XT/6900XT Gaming OC
RADIATORAlphacool NexXxoS HPE-30 Full Copper 280
RESERVOIR / PUMPAlphacool Rise Flat Reservoir DDC + Alphacool ES Laing DDC310 Pump
FITTINGS & TUBING8x Alphacool 13/10mm Compression Fitting 90°
6x Alphacool Eiszapfen 13/10mm Compression Fitting
1x Alphacool Eiszapfen L-Connector
1x Alphacool Eiszapfen Extension 20mm
Alphacool EPDM Tubing (13/10)
PSU SilverStone SX1000 + CableMod SFF Cables (paid link)
RAM32GB DDR5 (2x16GB), 6000MHz (paid link)

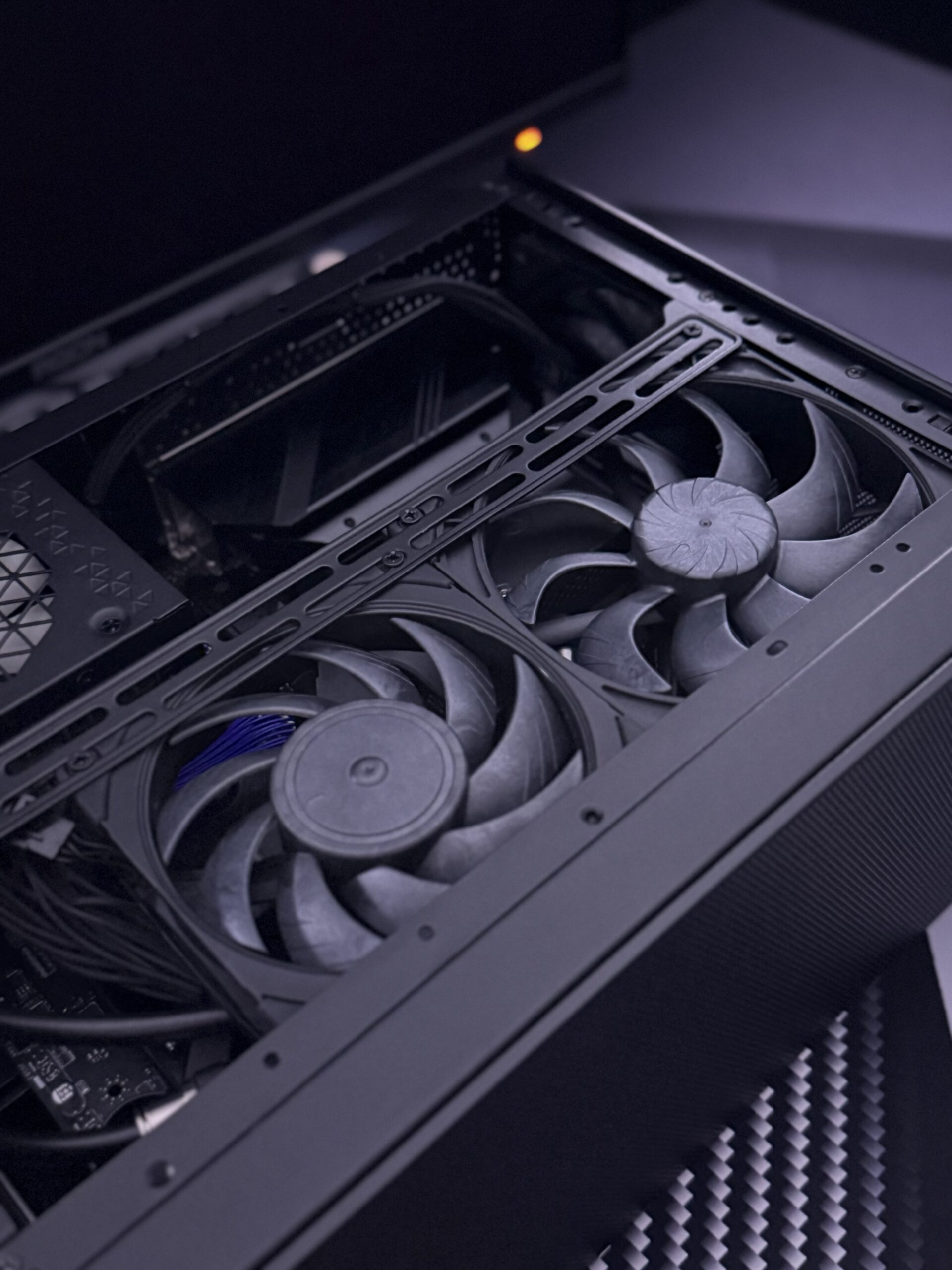

FANSTop: 1x Noctua NF-A12x15 chromax.Black (paid link)
Side: 1x NF-A14 chromax.Black (paid link)
Radiator: 2x Thermaltake Toughfan 14 (paid link)

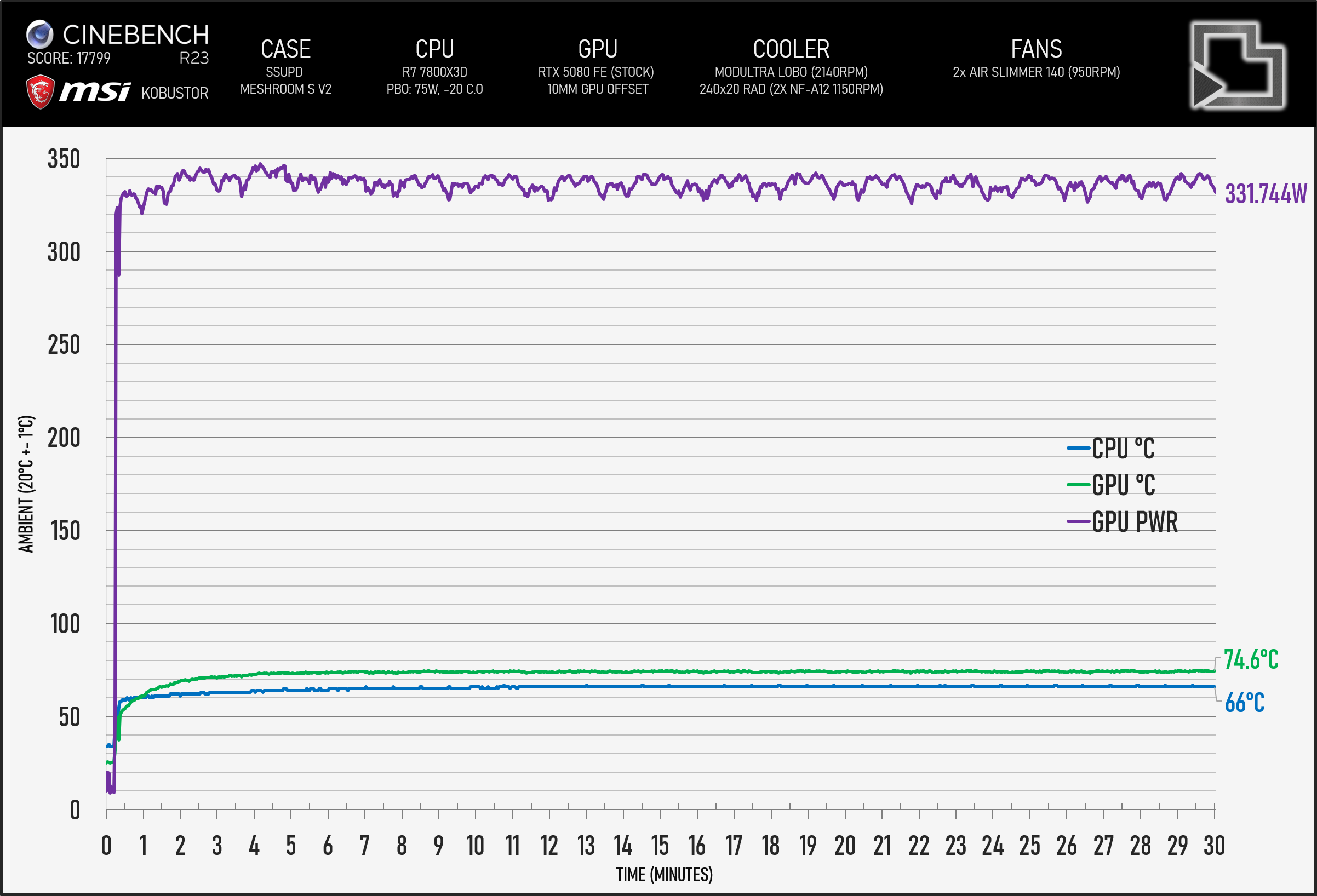

THERMAL BENCHMARKS

FEEDBACK

Our tampered glass panel has some form of residue on exterior layers of the glass that cannot be removed.

The top panel of the Meshroom S is very susceptible to bending and could use reinforcing. This affects all units, however this can partially mitigated by manually straightening the panel.

The panel gap is more pronounced at the front-top-right of the case, this affected both units we received. Unfortunately, this seems to be manufacturing defect.

CONCLUSIONS

The Meshroom S is functionality one of the most versatile SFF cases available, with added benefit of ATX hardware support.
