Apollo SE

MCPRUE APOLLO SE V2

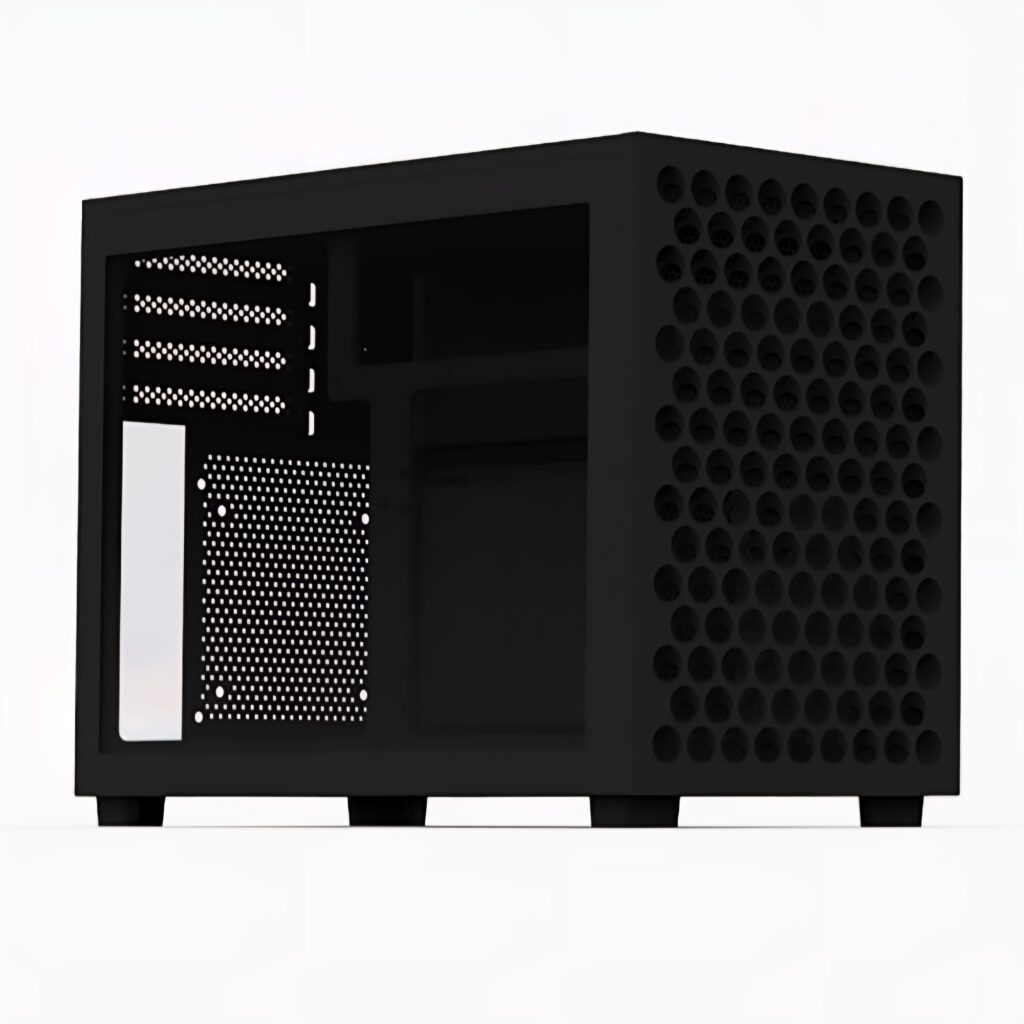

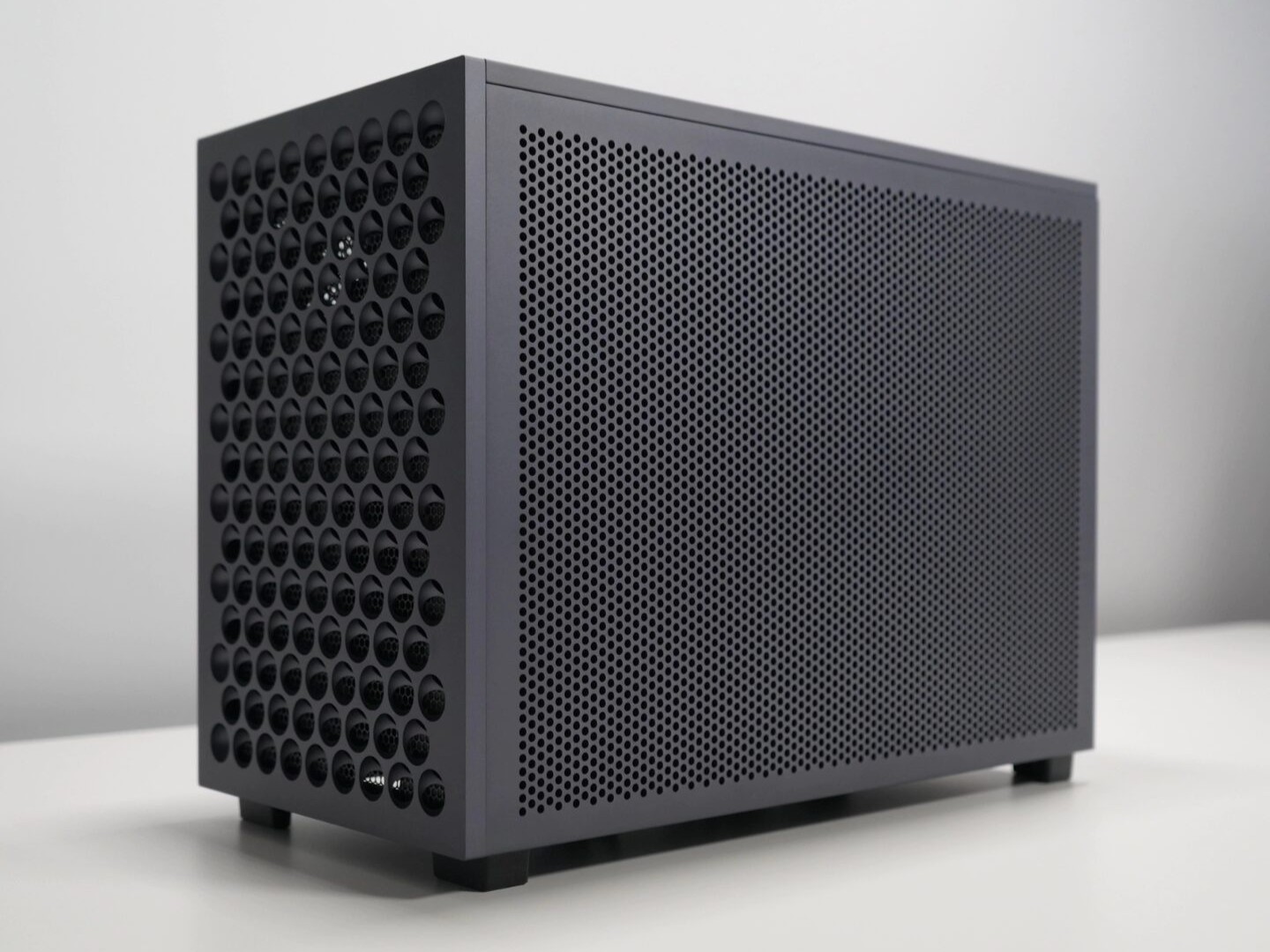

The Apollo SE was a sub 18L traditional layout ITX case with mATX support. The case is constructed of CNC aluminium for exterior panels and steel for internal frame, supporting reference and inverted reference layouts. The Apollo SE is no longer available.

SPECIFICATIONS

MODELApollo SE v2Apollo SE v1
PRICE349$ – 379$349$ – 379$
MATERIALST6063 Aluminium (CNC, Anodised), Stainless Steel (internal frame)T6063 Aluminium (CNC, Anodised), Stainless Steel (internal frame)
VOLUME17.4 Litres (excluding case feet)17.8 Litres (including case feet)
DIMENSIONS360×186.6×259mm (L×W×H) without case feet360×186.6×265mm (L×W×H) without case feet
FORM FACTORSFF (Traditional / Inverted Layout)SFF (Traditional / Inverted Layout)
CASE I/OPower Button, USB 3.2 Type-C (Type-E Male), USB 3.0 Type-C (USB 3.0 20pin)Power Button, USB 3.2 Type-C (Type-E Male), USB 3.0 Type-C (USB 3.0 20pin)
MOTHERBOARD COMPATIBILITYMini-ITX / Micro-ATX (mATX may limit hardware compatibility)Mini-ITX / Micro-ATX (mATX may limit hardware compatibility)
CPU COOLER CLEARANCE160mm (75mm pump block height with side 280 radiator installed)158mm (75mm pump block height with side 280 radiator installed)
PCIE EXPANSION SLOTS44
RISER CABLEN/AN/A
GPU COMPATIBILITY342×70×165mm (143mm max GPU height is recommend to allow for safe 12VHPWR cable clearance)342×81×165mm (143mm max GPU height is recommend to allow for safe 12VHPWR cable clearance)
RADIATORS SUPPORTED240 / 280 (side)Side: 1x 280
(240 radiators not supported)
POWER SUPPLY COMPATIBILITYSFX / SFX-LSFX / SFX-L
2.5 / 3.5” DRIVES SUPPORTED1x 3.5" or 3x 2.5" (based on components)1x 3.5" or 3x 2.5" (based on components)
CASE FANS SUPPORTEDTop: 2x 120 (slim fan only depending on configuration)
Side: 2x 140mm (inverted/references)
Rear: 1x 92/120mm (120mm not compatible with side radiator bracket)
Bottom: 2x 120/140mm (replaces drive mounts)
Top: 2x 120 (slim fan only depending on configuration)
Side: 2x 140mm (inverted/references)
Rear: 1x 92/120mm (120mm not compatible with side radiator bracket)
Bottom: 2x 120/140mm (replaces drive mounts)

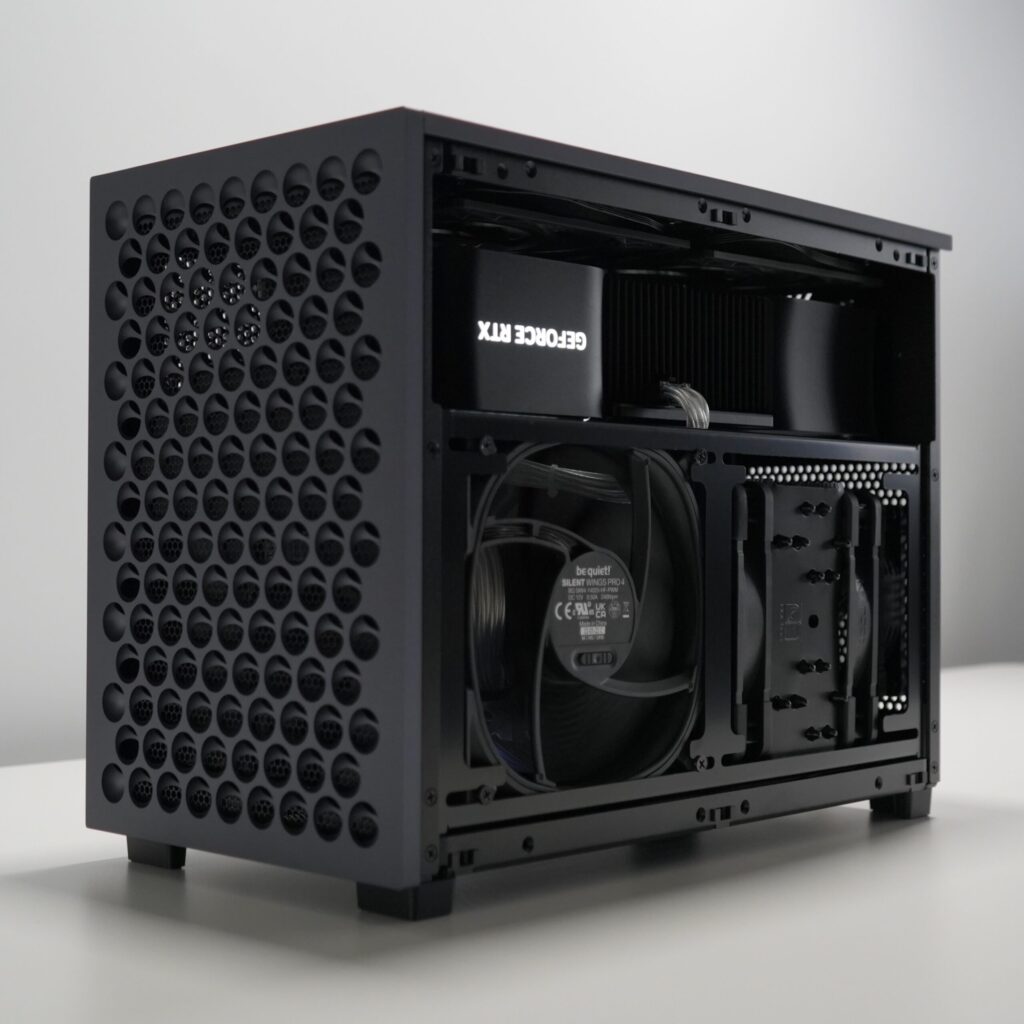

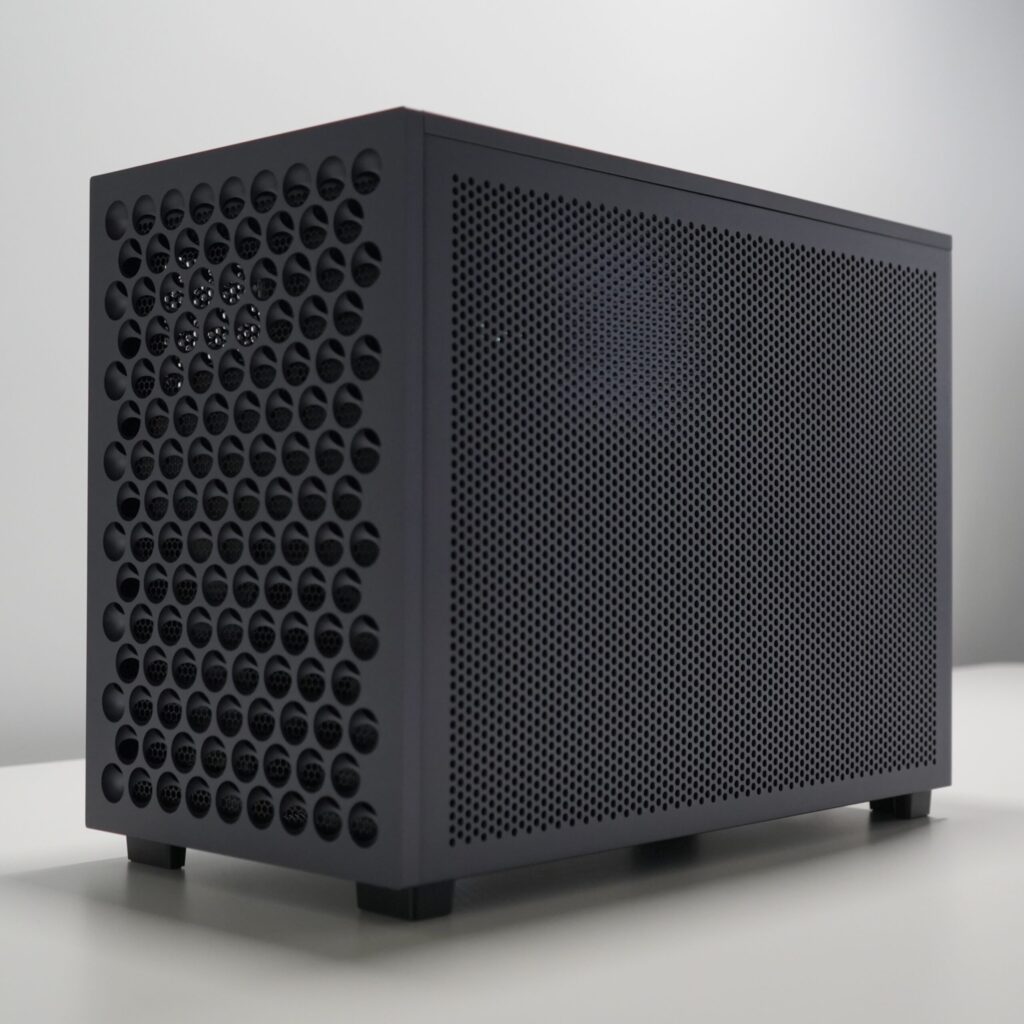

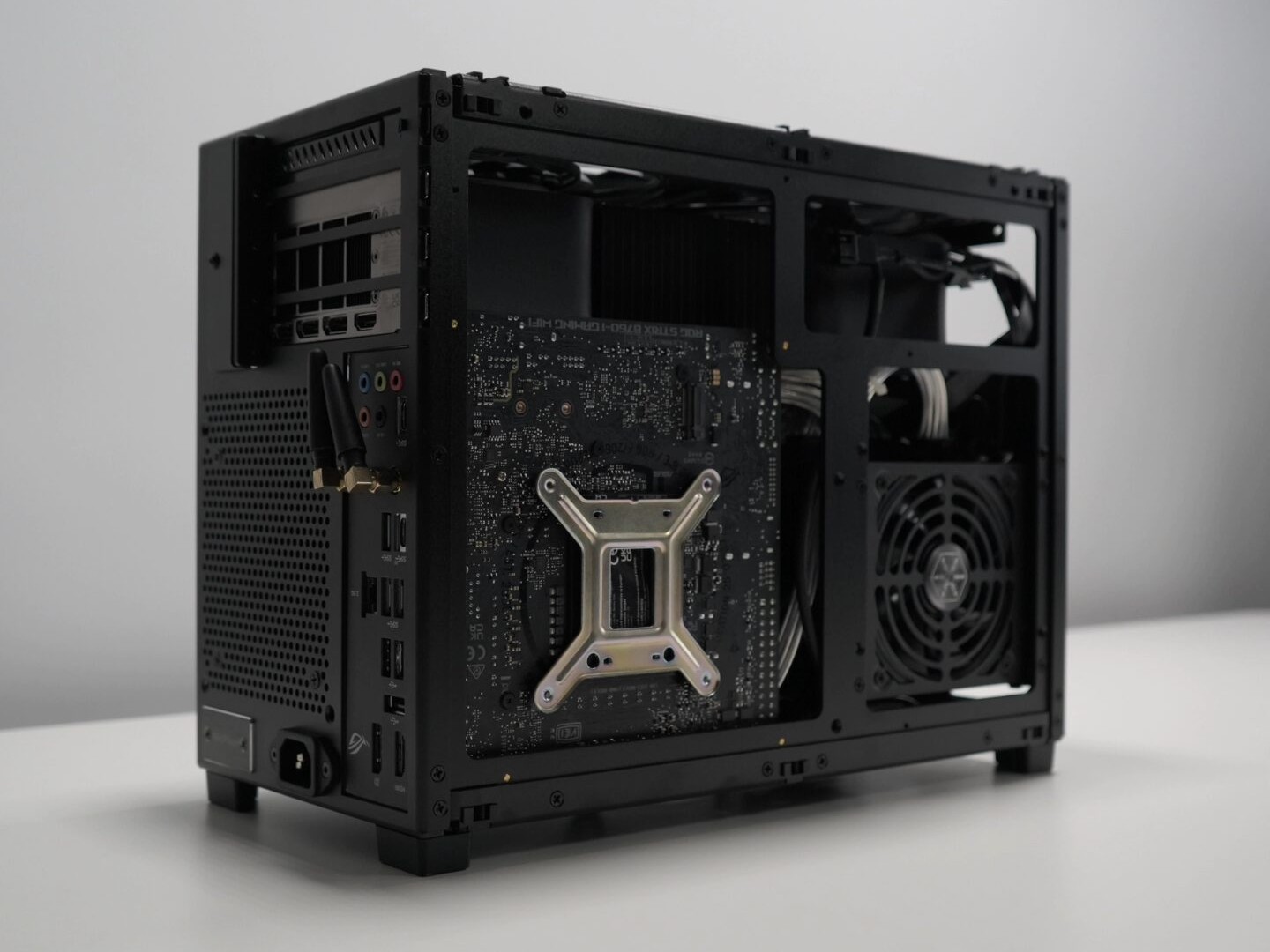

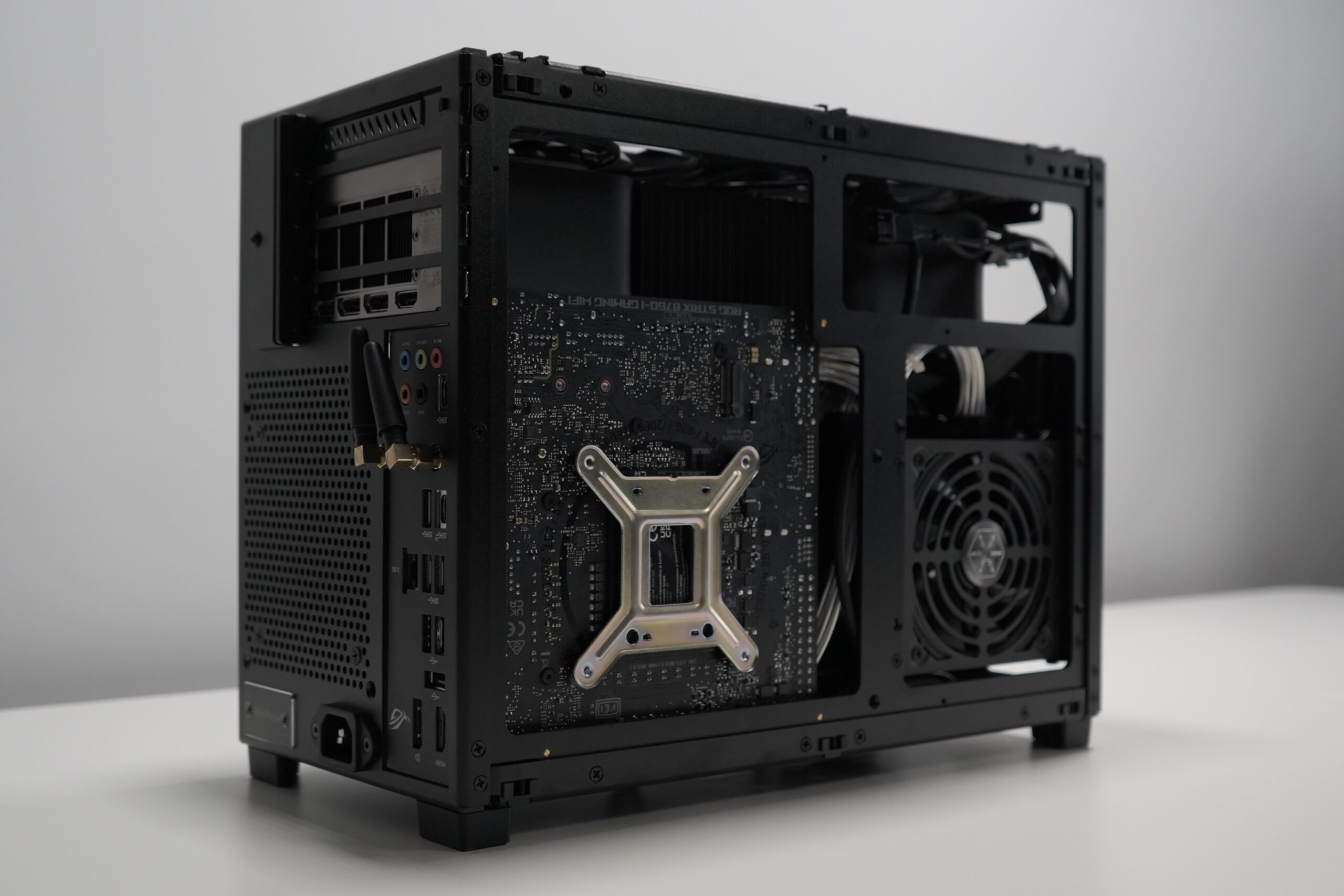

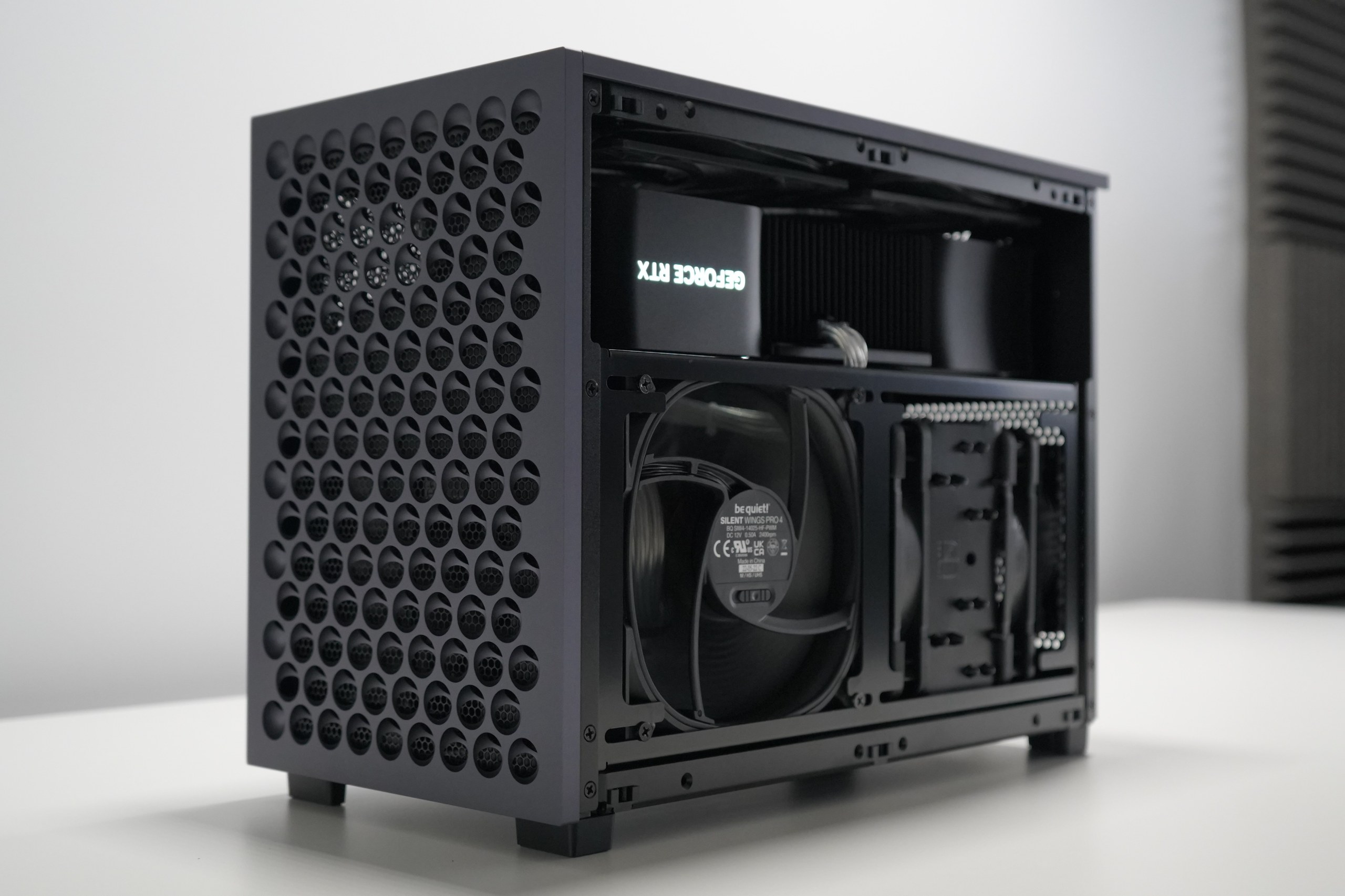

BUILD #1

Build we did in the Apollo SE v1. We've updated some of the hardware to the most recent available.

    MOTHERBOARD

    Rog Strix B650E-I Gaming WiFi

    PAID LINK

    CPU

    Ryzen 7 7800X3D

    PAID LINK

    GPU

    Nvidia RTX 4080 Super FE

    PAID LINK

    RAM

    32GB Gskill S5 DDR5, 6000MHz, CL30

    PAID LINK

    COOLER

    280mm AIO or Noctua U12A

    PAID LINK

    PSU

    Corsair SF1000 2024

    PAID LINK

    STORAGE

    1TB + 2TB NVME

    PAID LINK

    FANS

    Top: 2x Arctic P14 Slims Side: 2x NF-A14 G2 chromax.black Rear: NF-A9x25 chromax.Black

    PAID LINK

    FINAL THOUGHTS

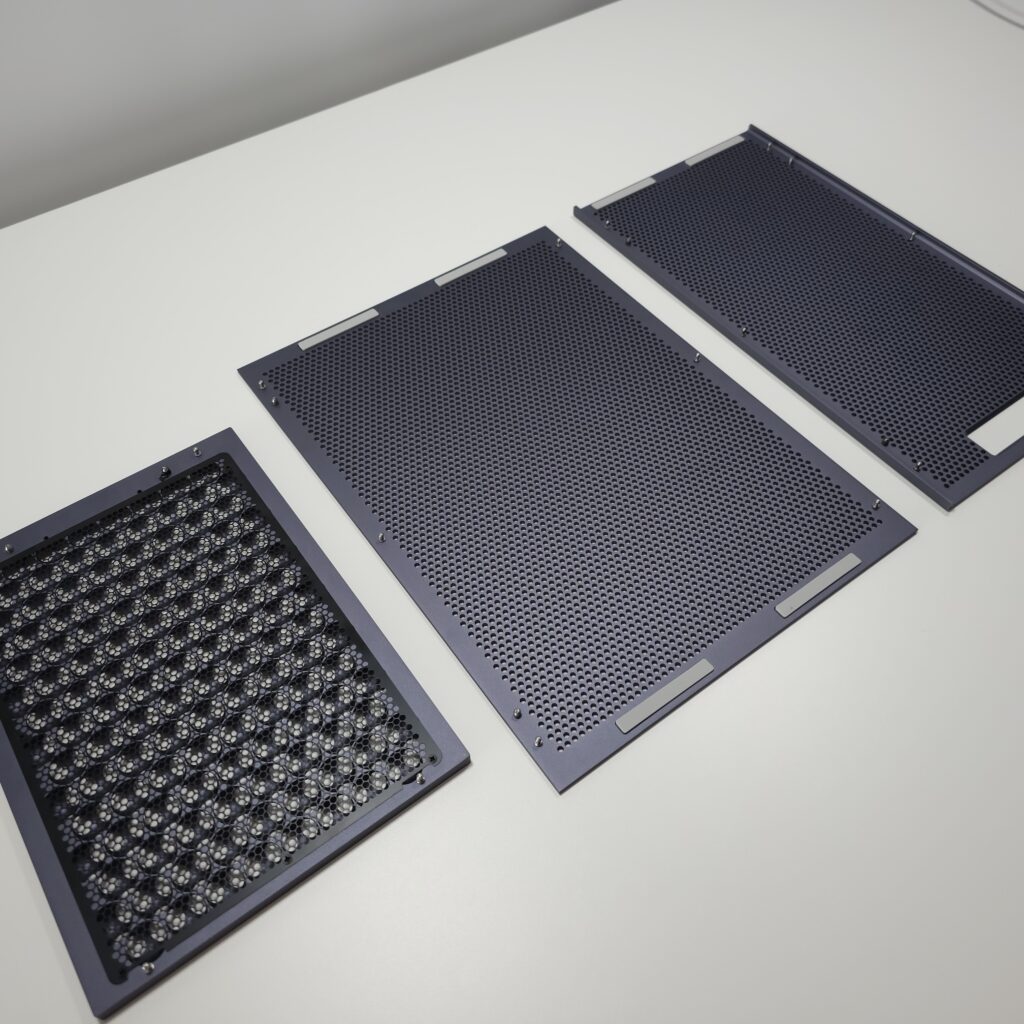

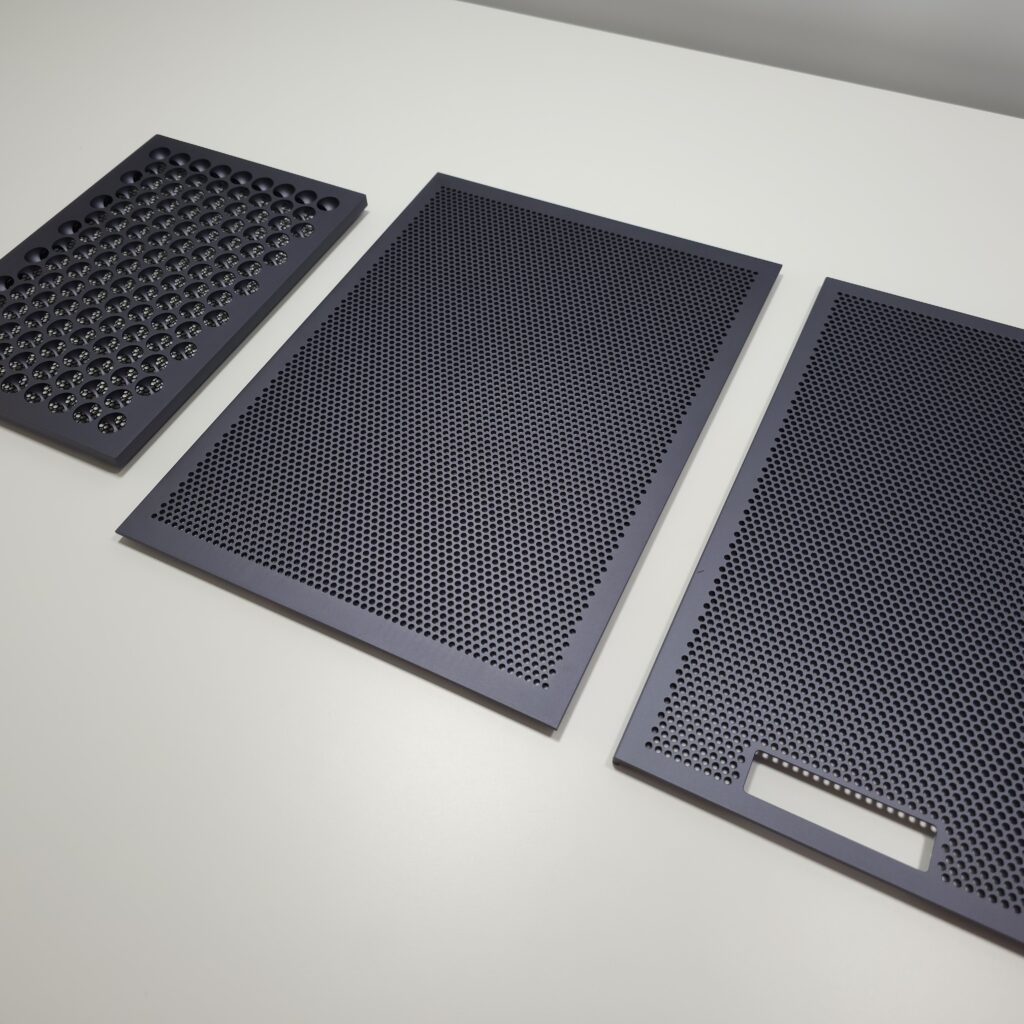

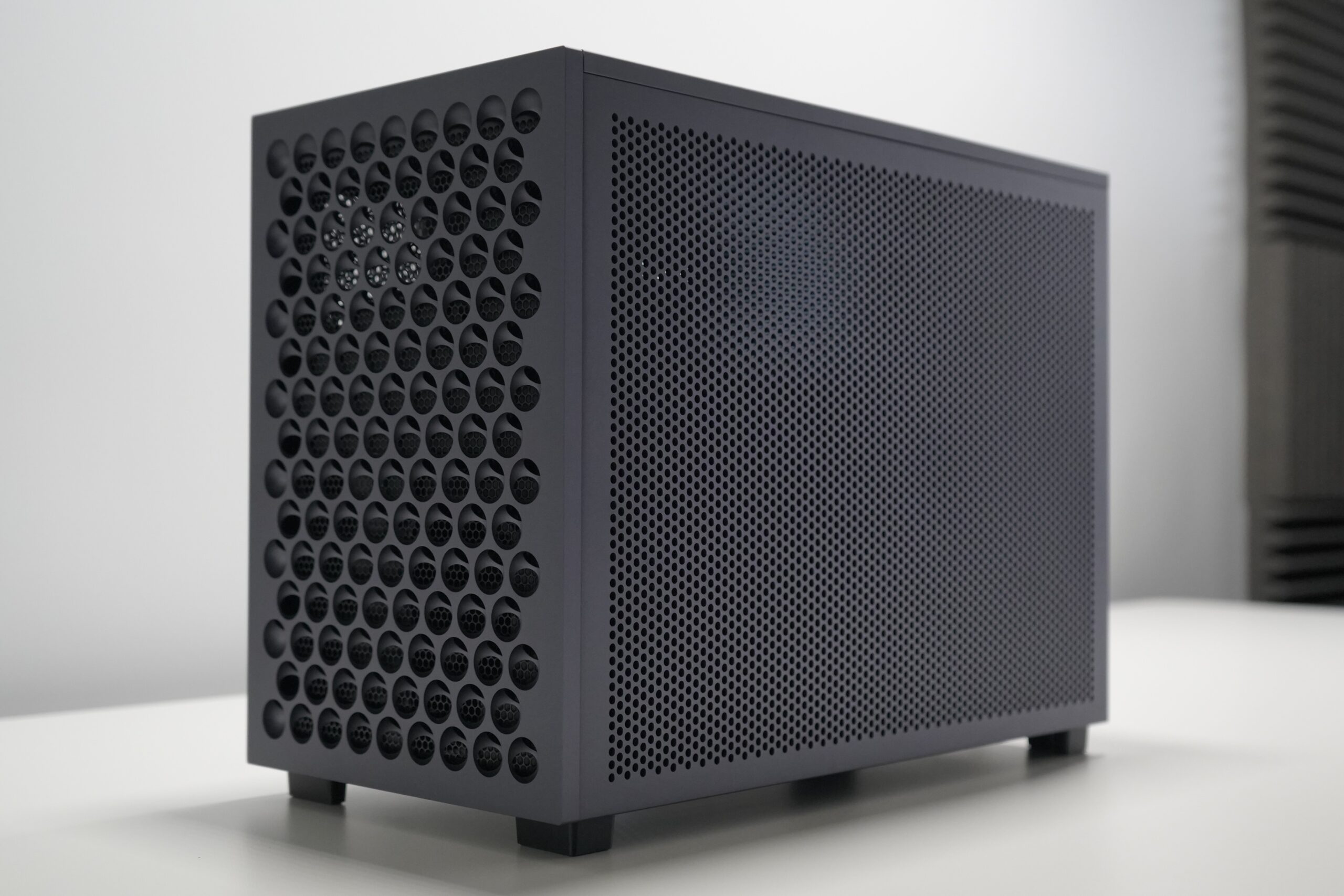

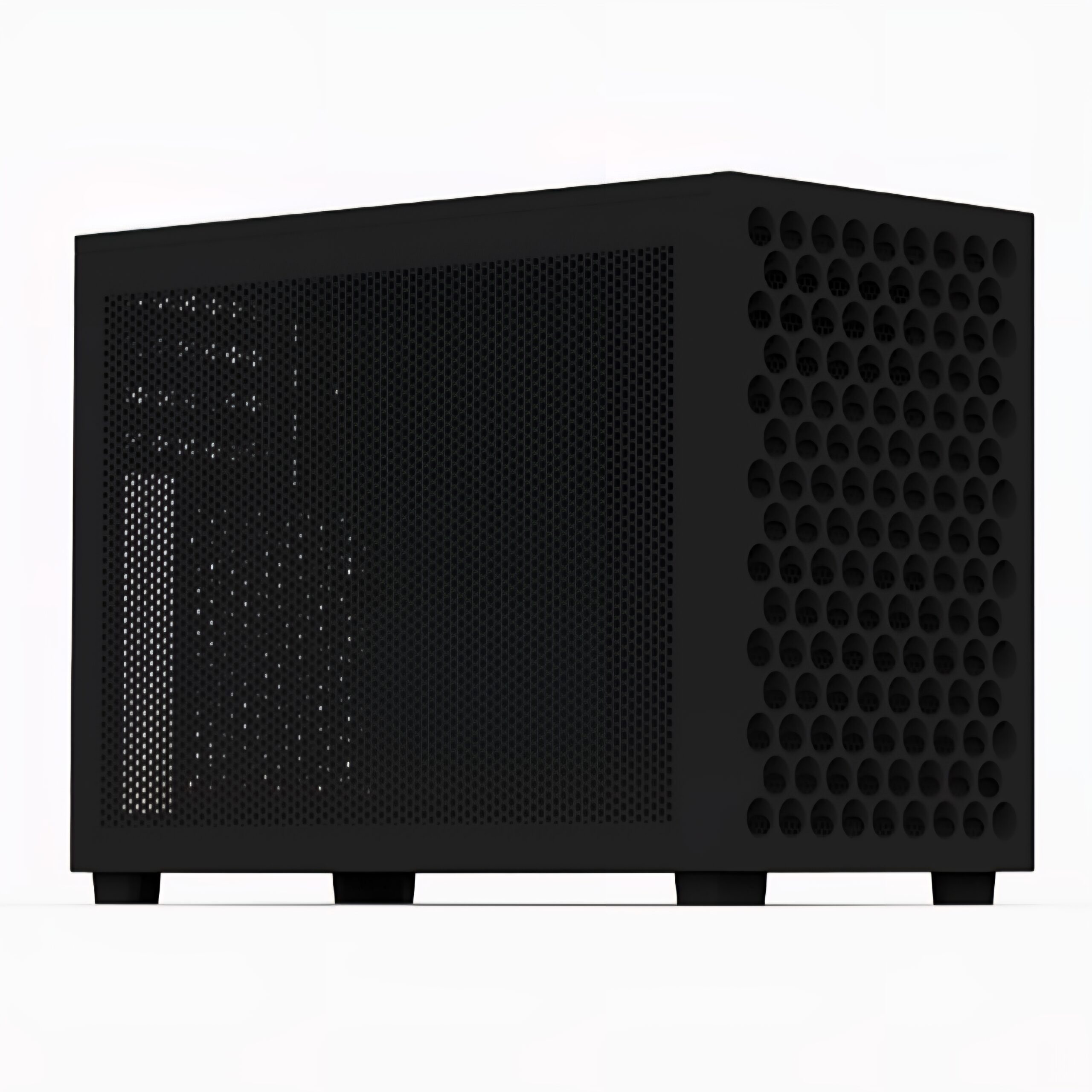

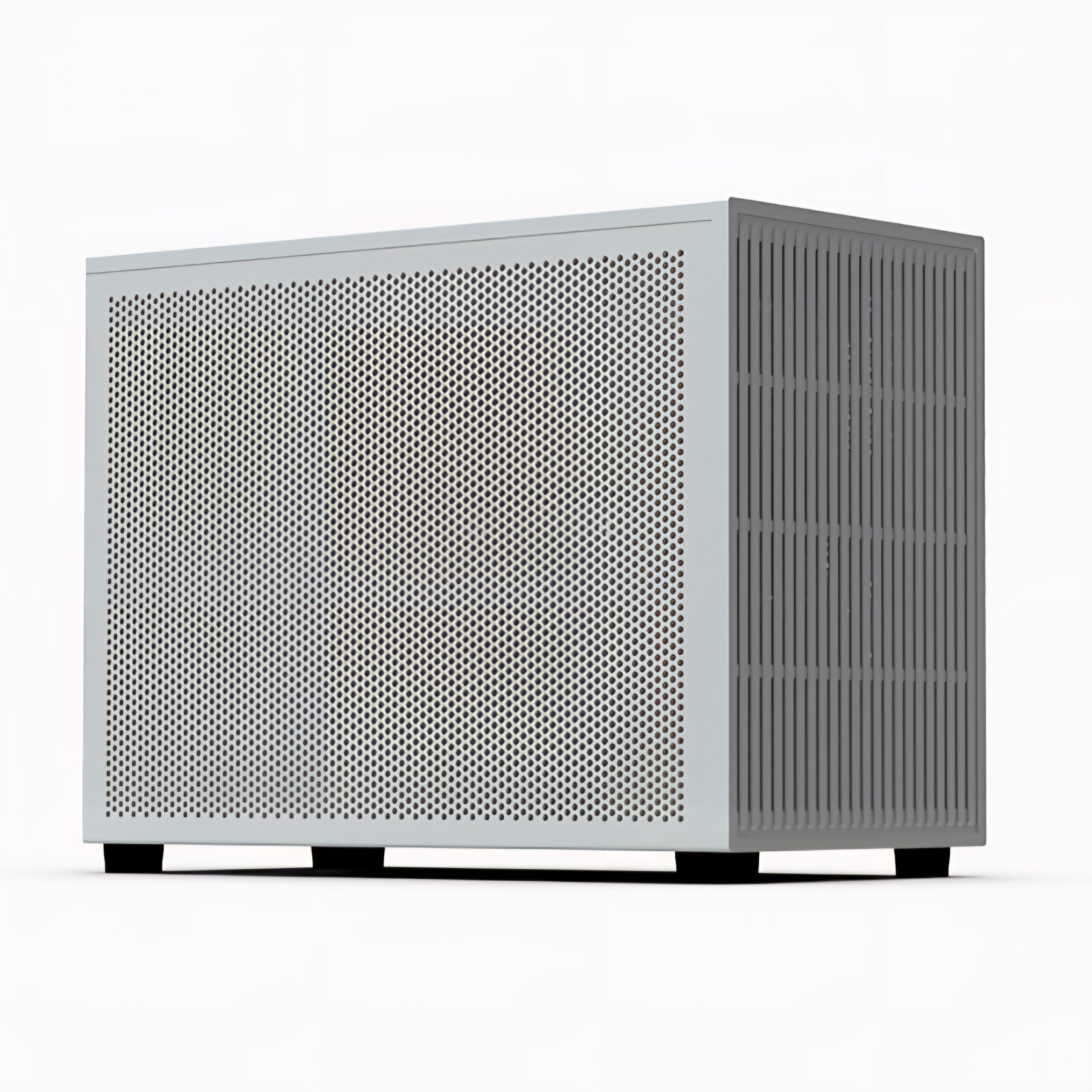

    The Apollo SE is constructed using CNC aluminium panels and a stainless steel internal frame that is built like a tank. All panels are push-pin secured (including the front), with extremely tight tolerances. If the cheese greater style front panel isn't to your taste, it's also available with slotted front panel design. The case supports both references and inverted reference layouts, meaning the graphics card can be installed at top or the bottom of the case.

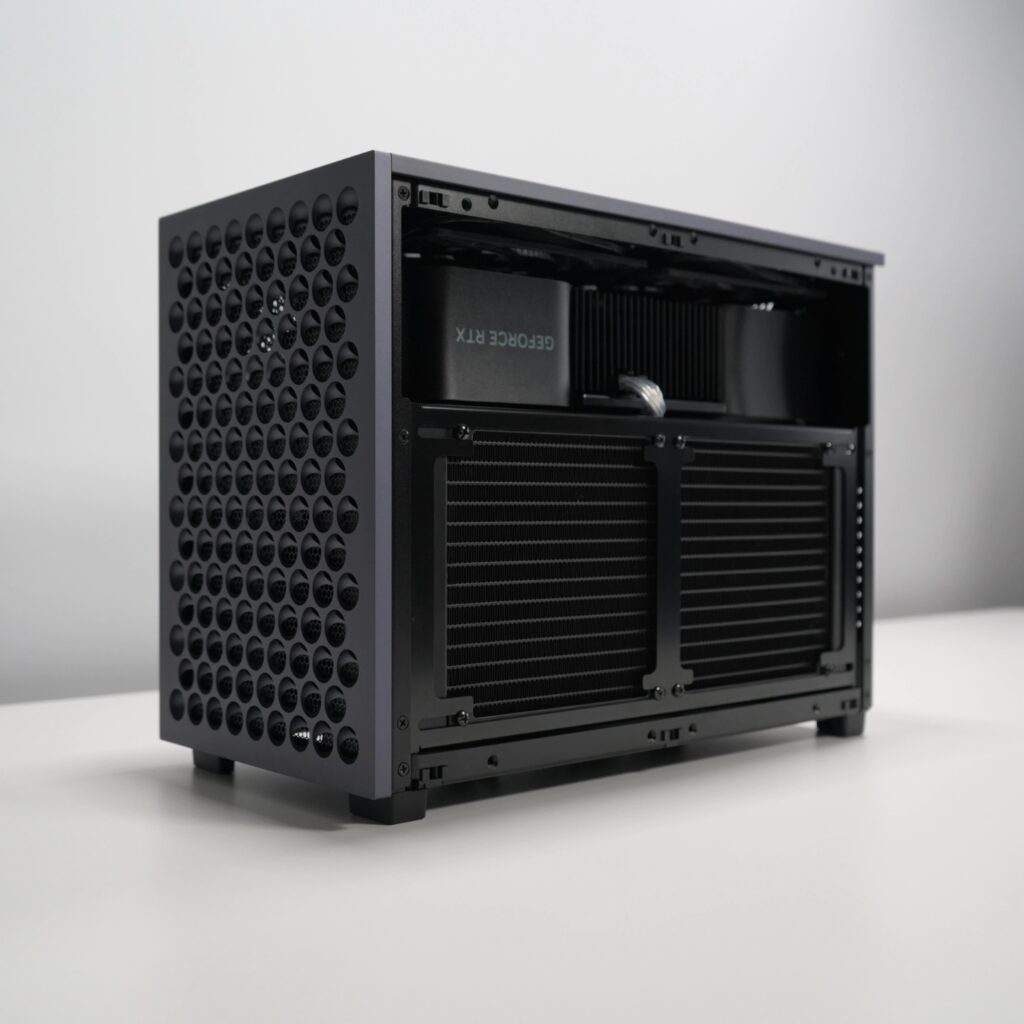

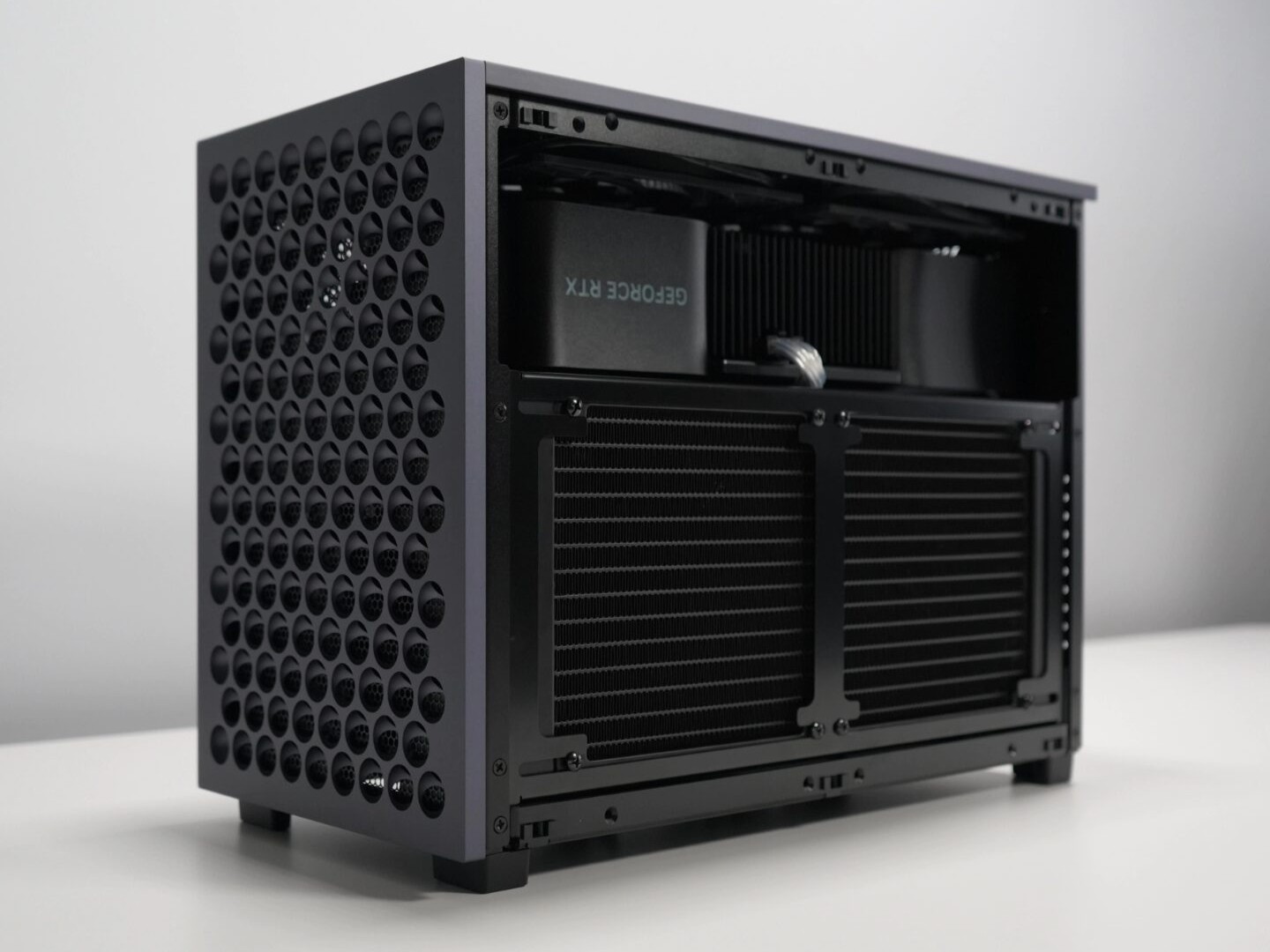

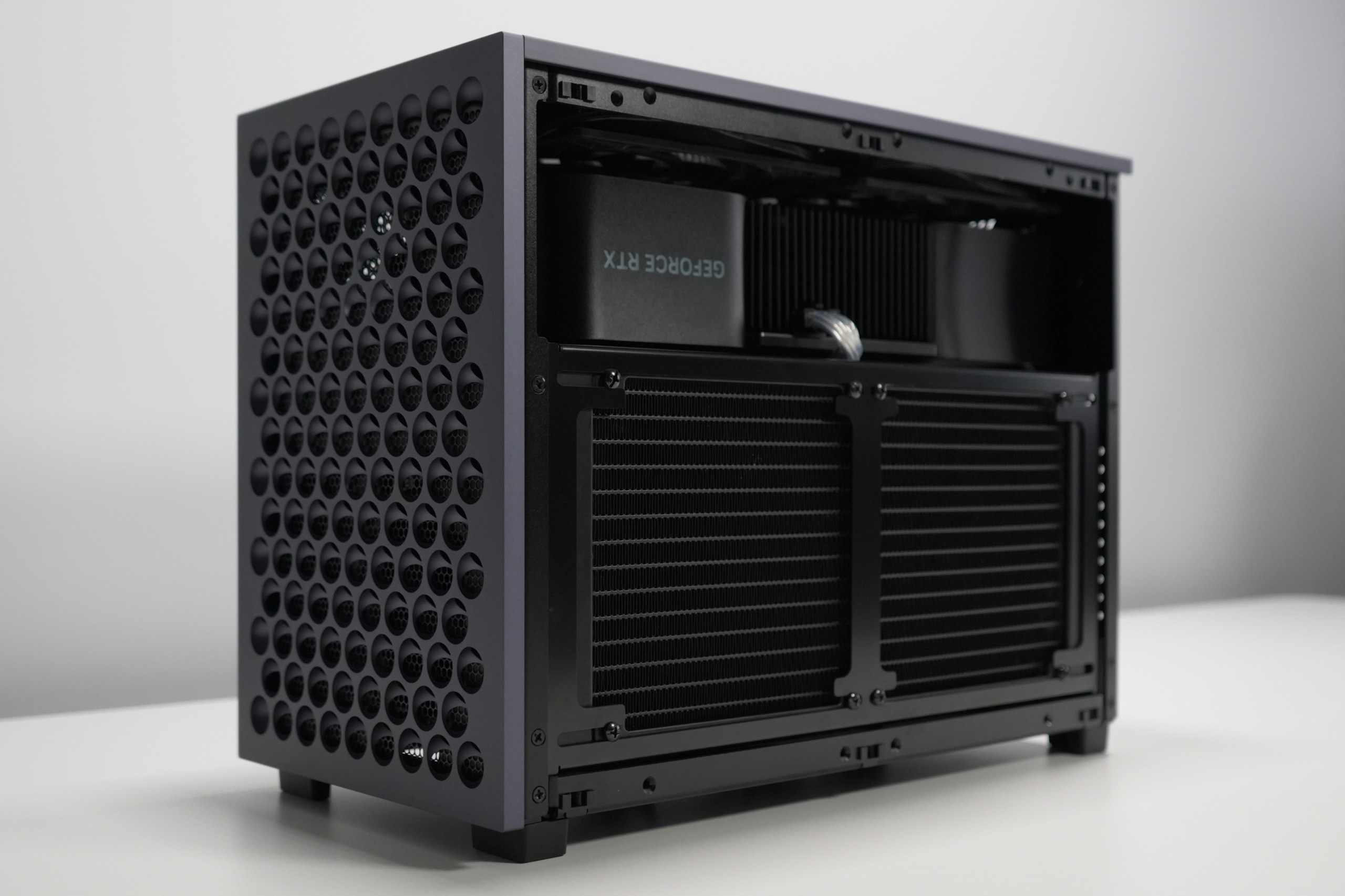

    While the Apollo SE v1 is great case, it is not without its faults. The side radiator bracket doesn't support 240 radiators or 120mm fans. Only 280 radiators and 140mm fans are supported. The radiator/fan bracket is also very difficult to install with max clearance air coolers or AIO and required removing the front/top of the internal frame in order to install. This wouldn't be so bad, but there are a lot of screws involved and some are located under the case feet. Hardware compatibility with an SFX-L power supply is limited, but this is the case with most Mini-ITX cases. There was a small amount of play with the front panel, which caused it to sit a fraction out of alignment with the top panel, this can however be solved with little ingenuity.

    The Apollo SE was very solid case and welcome change in the style we are used to from McPrue. Some minor changes were made in version 2 to improve radiator/ fan mounting and other little tweaks. It appears the Apollo SE has been discontinued for in order to simplify McPrue's case line-up with release of the Apollo S v5.
