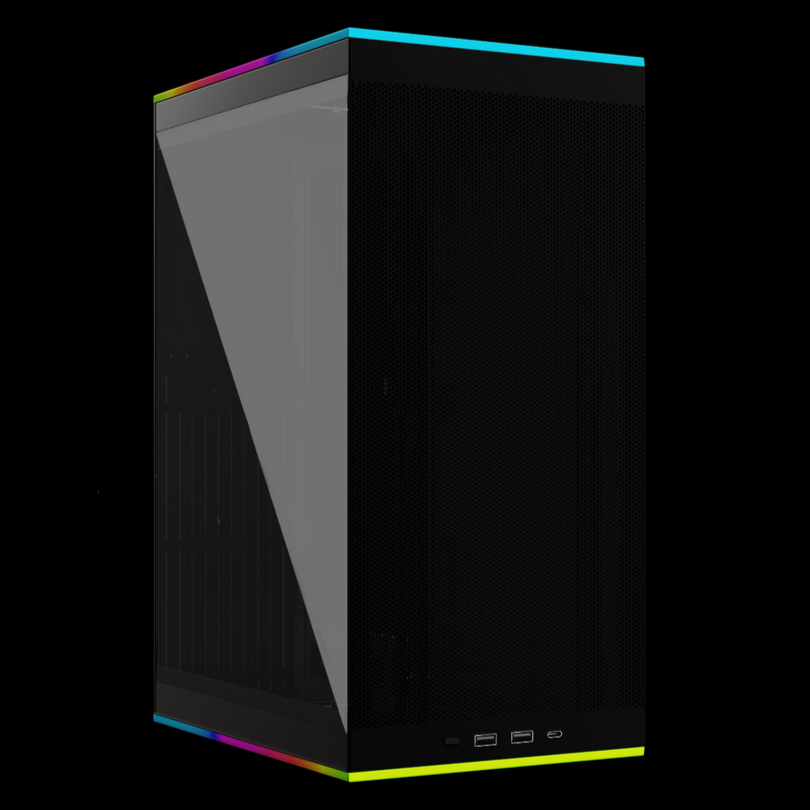

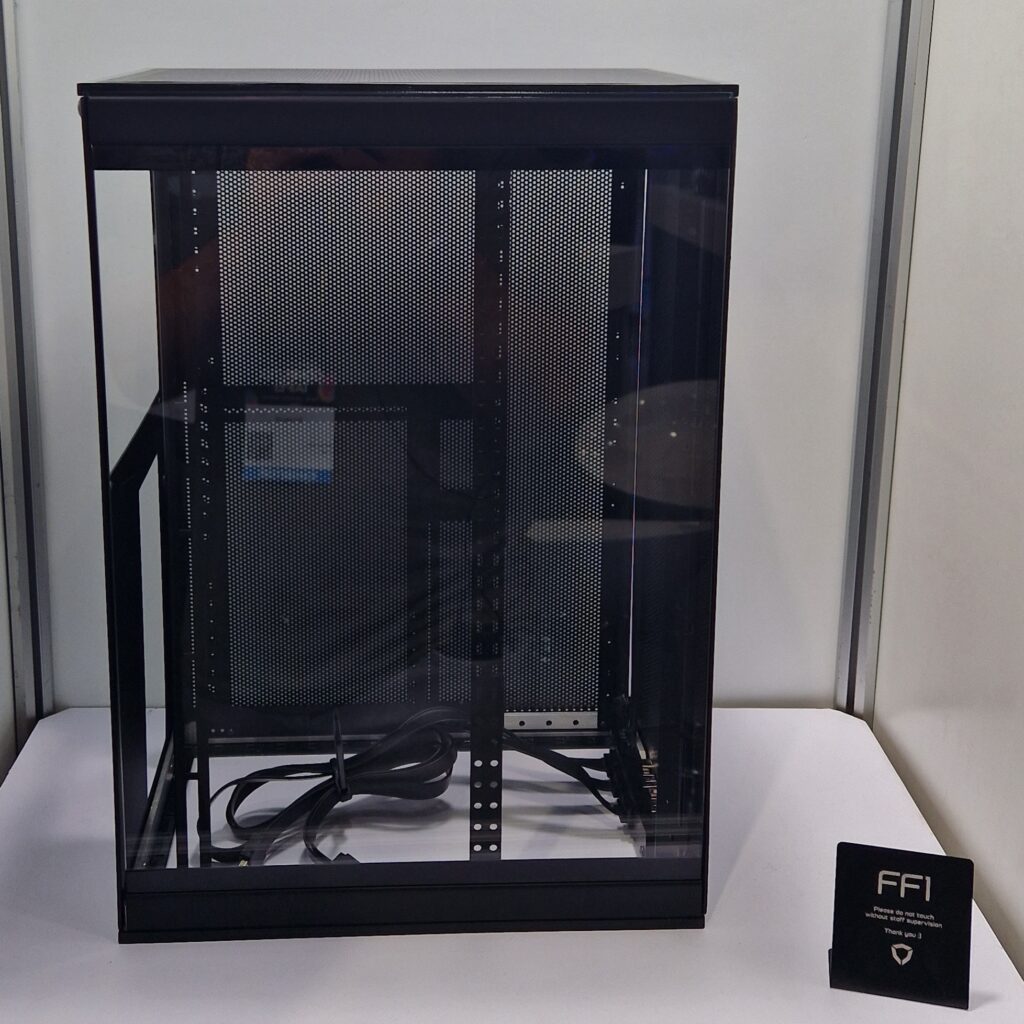

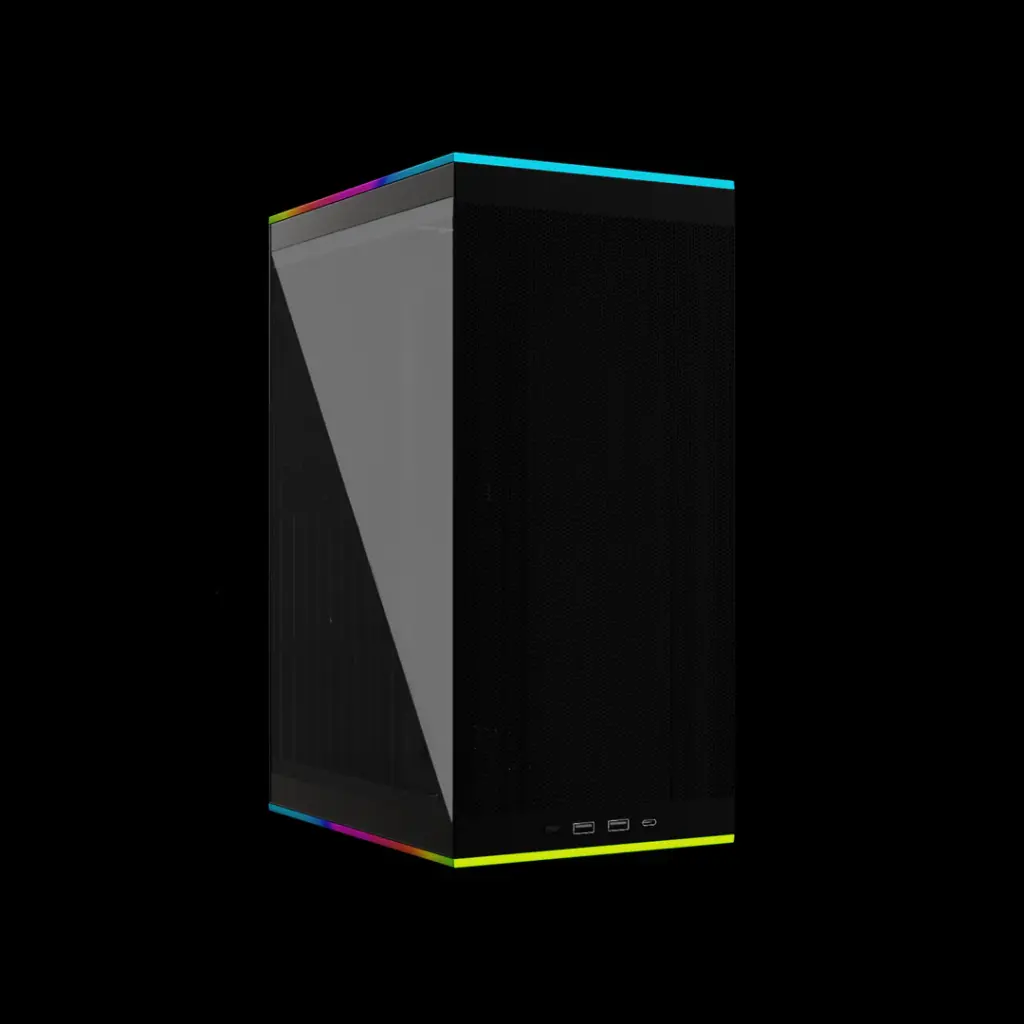

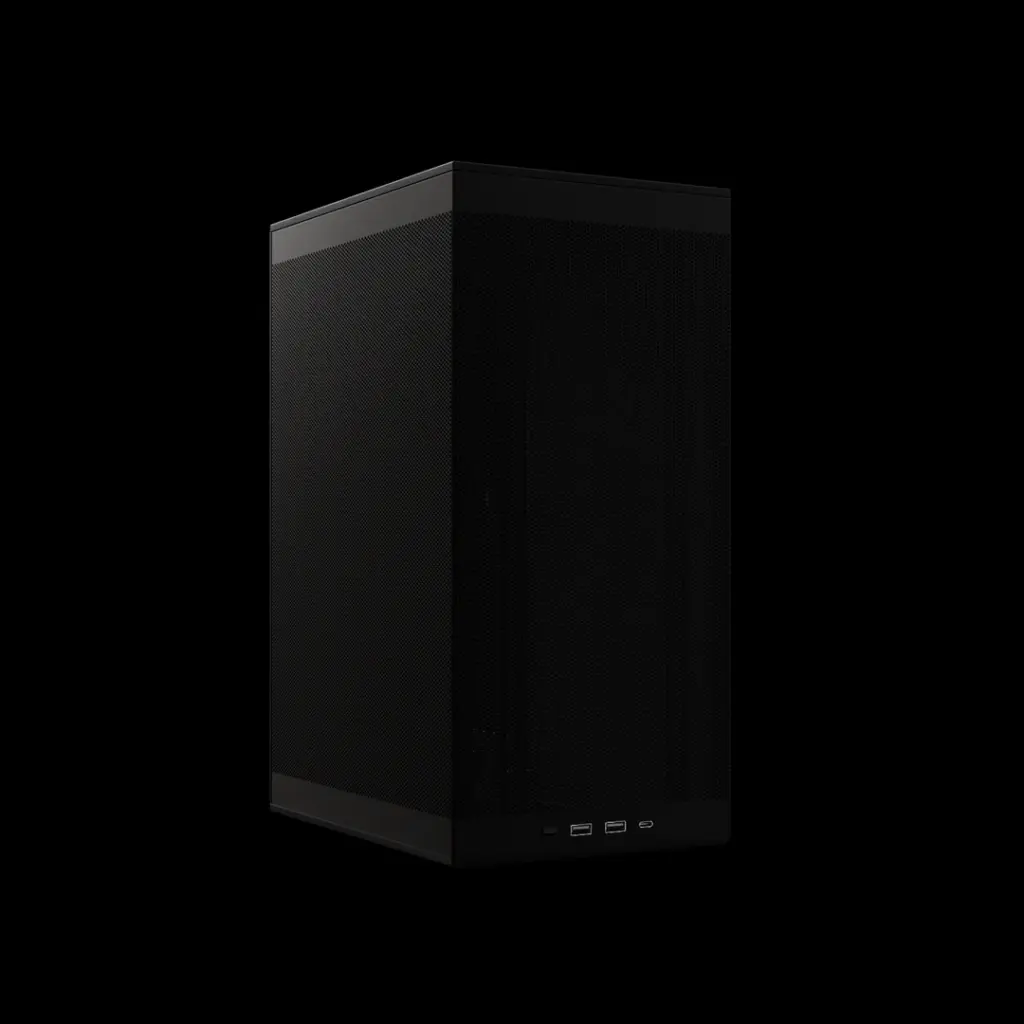

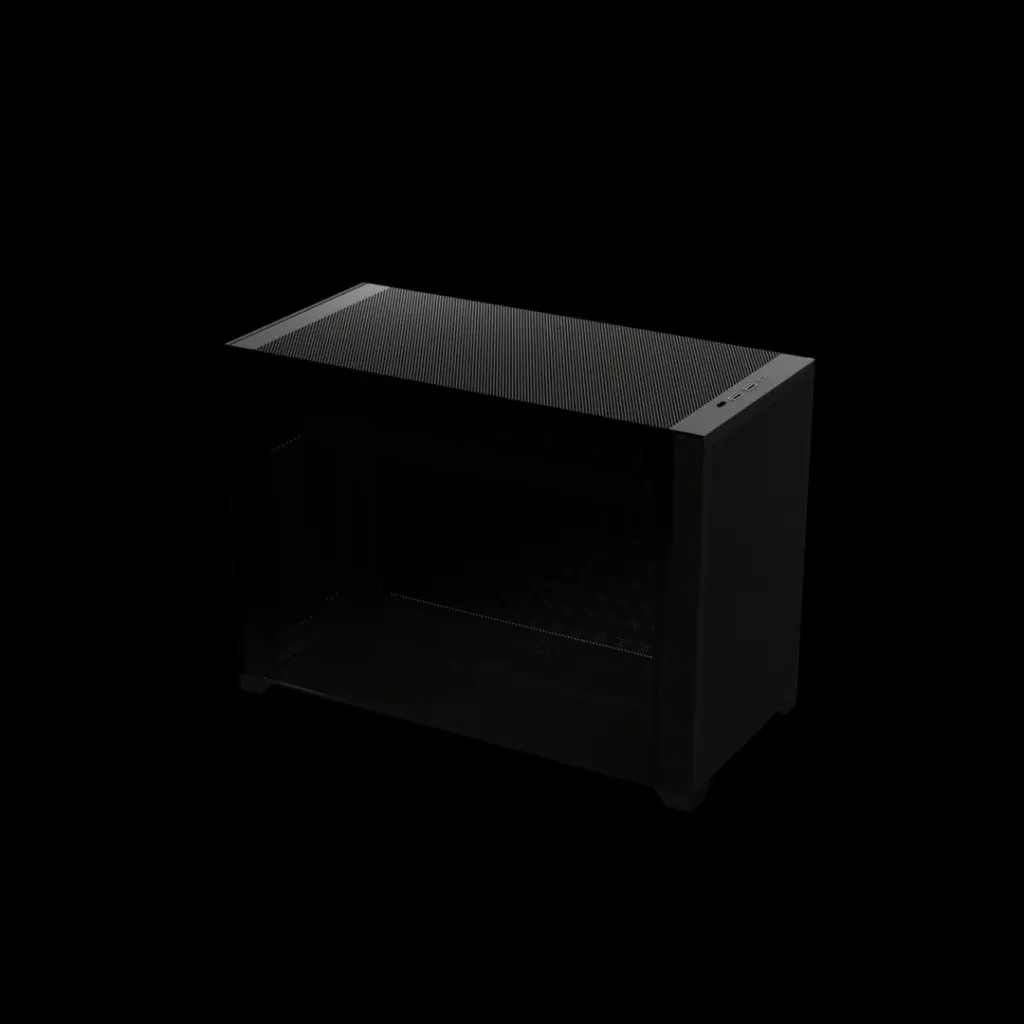

FreeFlow or FF1 is a modular layout Mini-ITX case at 17L in volume. The case was initially expected to release end Q4 2023, however due to unforeseen complications, it is unclear if the case will ever release at this stage. The case should be priced between $100~$150 depending on the variant. NCASE was slated to handle US and Canada orders, with Streacom handling orders for other regions.
SPECIFICATIONS
| MODELS | FF1-BLK-S-SDK, FF1-BLK-S-SDK+PCIE4, FF1-BLK-S-SDK+PCIE4+RGB |
| OVERVIEW | FreeFlow FF01 is a collaboration SFF case between Streacom and NCASE. Designed for both horizontal and vertical placement and upto six build configurations. It combines versatility, compatibility, space efficiency in a small footprint. |
| MANUAL | … |
| MATERIALS | 1mm Steel, Powder Coated |
| DIMENSIONS | 258×178×372mm (L×W×H) |
| VOLUME | 17 Litres |
| CASE I/O | Power Button 2x USB-A 1x USB-C |
| MOTHERBOARD SUPPORT | Mini-ITX, Deep-ITX, Mini-DTX, Micro-ATX, ATX (mATX & ATX will limit hardware compatibility) |

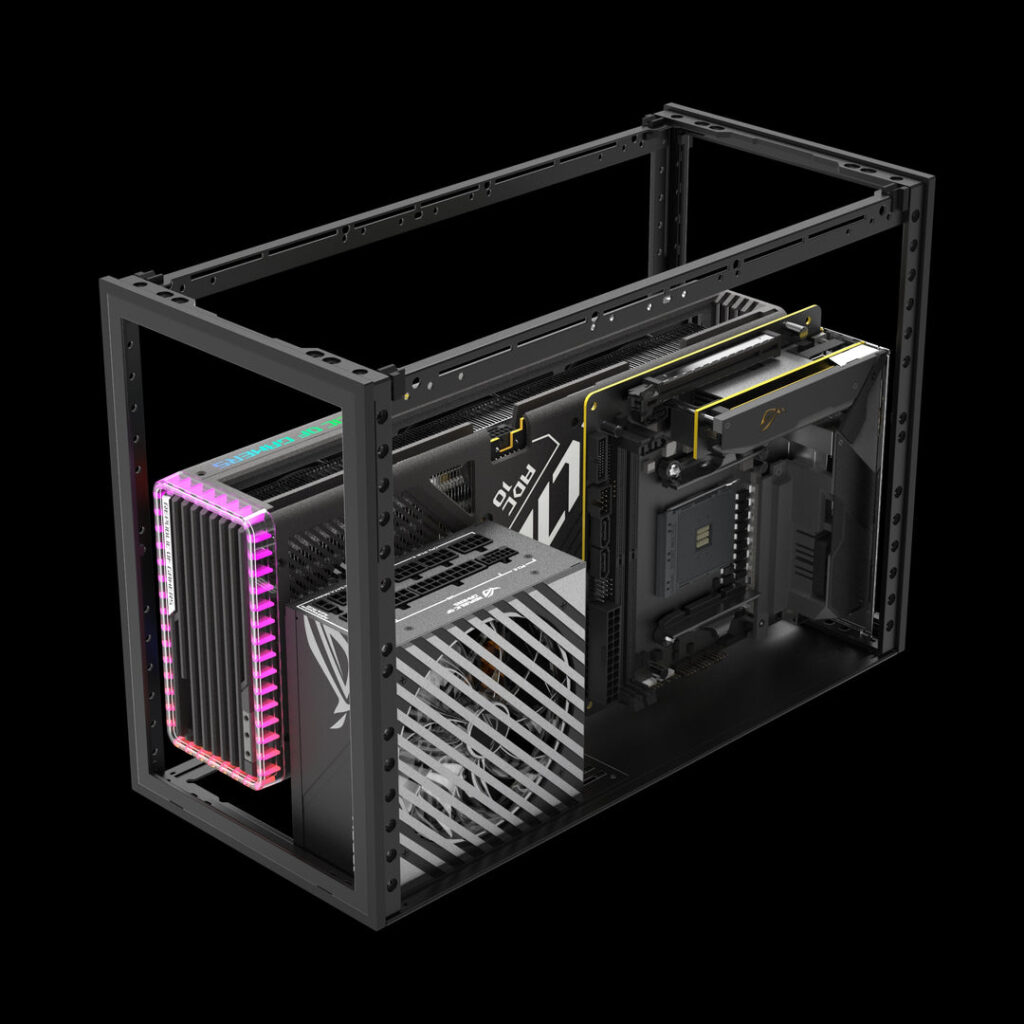

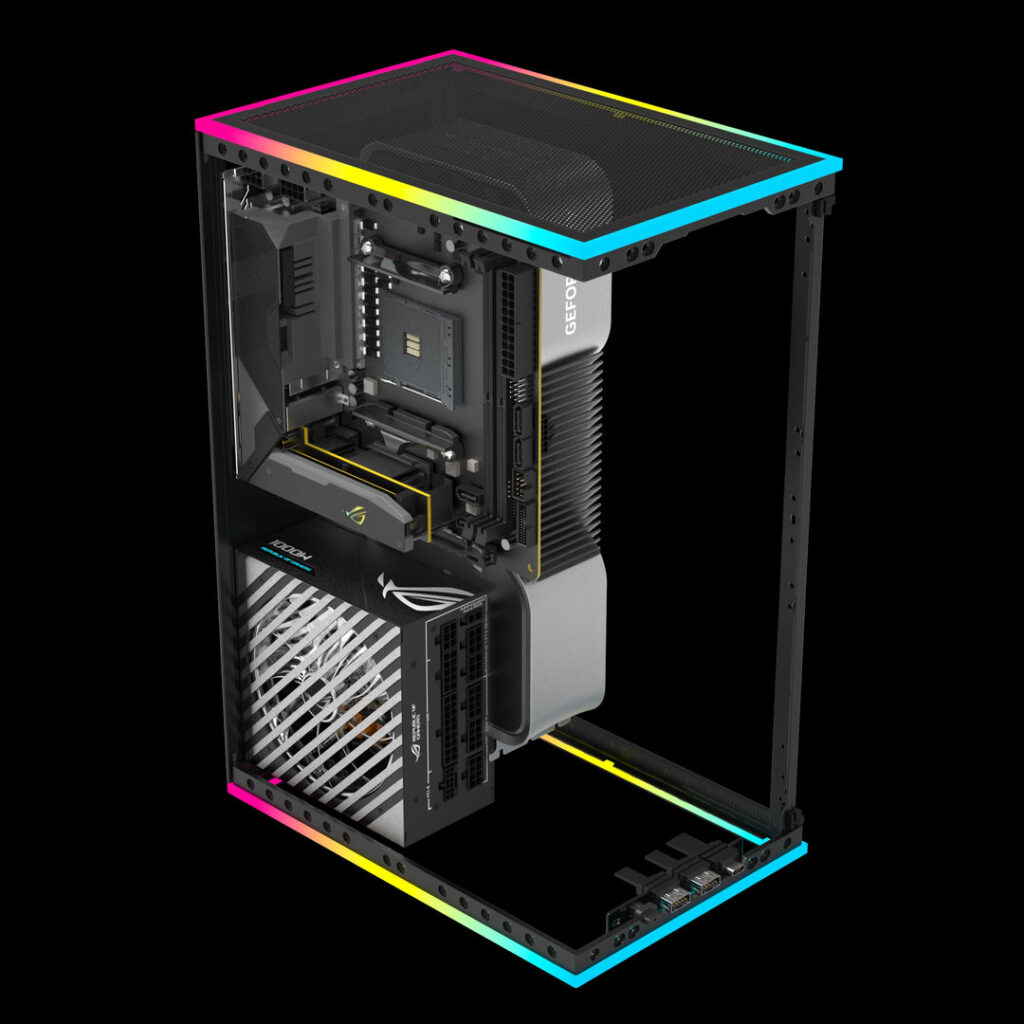

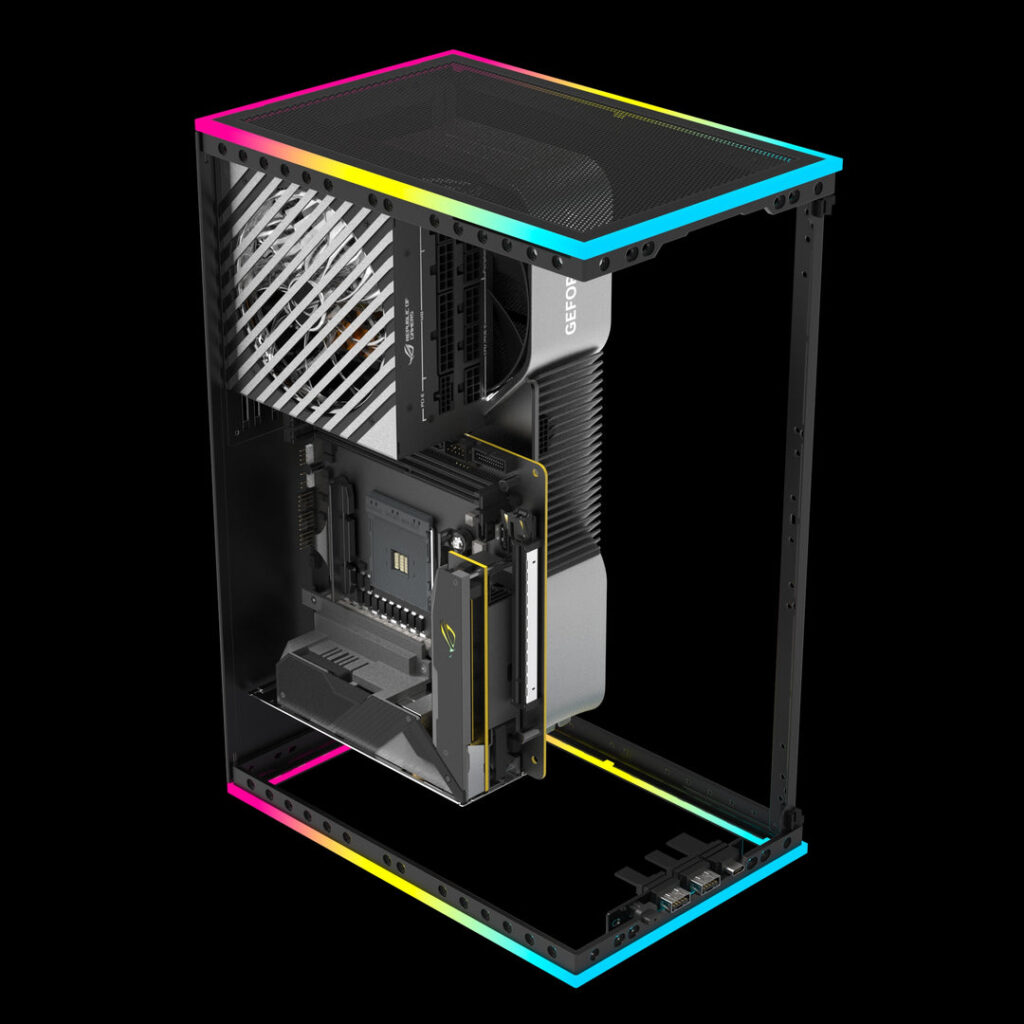

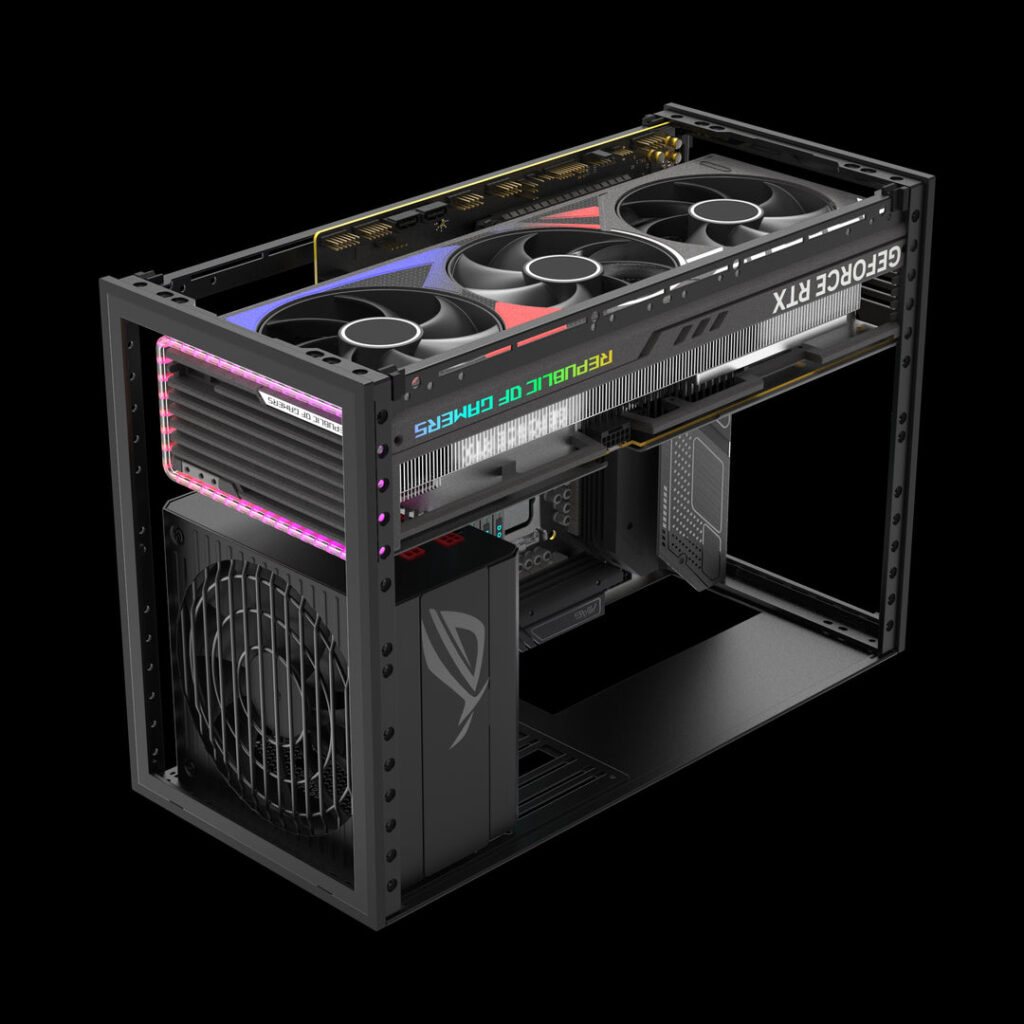

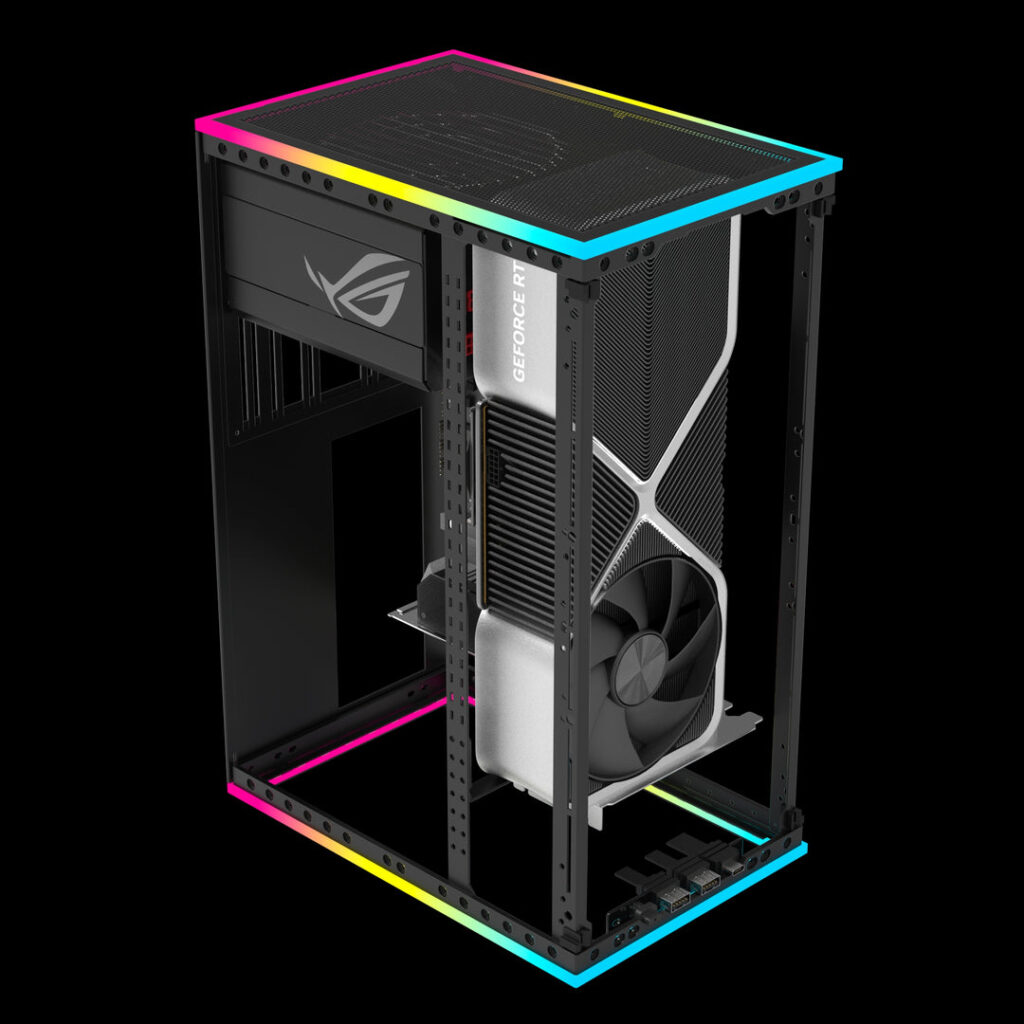

| COOLER COMPATIBILITY | 1. FF1-H-M1 Config: up to 158mm max height with 4-Slot GPU 2. FF1-H-A4 Config: up to 73mm max height with 4-Slot GPU 3. FF1-H-SC Config: up to 158mm max height with 3-Slot GPU 4. FF1-V-M1 Config: up to 158mm max height with 4-Slot GPU 5. FF1-V-H1 Config: up to 73mm max height with 4-Slot GPU 6. FF1-V-ML Config: up to 73mm max height with 4-Slot GPU |
| RISER CABLE | 1. FF1-H-M1 Config: Not Applicable 2. FF1-H-A4; PCIe X16 4.0 3. FF1-H-SC Config: Not Applicable 4. FF1-V-M1 Config: Not Applicable 5. FF1-V-H1 Config: PCIe X16 4.0 6. FF1-V-ML Config: PCIe X16 4.0 |
| GRAPHICS CARD COMPATIBILITY | 1. FF-H-M1 Config: up to 150 x 359mm, 4-Slot thick 2. FF-H-A4 Config: up to 165 x 359mm, 4-Slot thick 3. FF-H-SC Config: up to 150 x 250mm, 3-Slot thick 4. FF-V-M1 Config: up to 150 x 340mm, 4-Slot thick 5. FF-V-H1 Config: up to 150 x 340mm, 4-Slot thick 6. FF-V-ML Config: up to 150 x 340mm, 4-Slot thick |
| 2.5″ / 3.5″ DRIVES SUPPORTED | 3x 3.5″ or 5x 2.5″ (based on components, upto 5x may be supported with harddrive addon kit) |
| CASE FANS SUPPORTED | 6x 120 / 140mm |
| LIQUID COOLING SUPPORT | Single Radiator / Custom Loop: 120/140/240/280mm Radiator / AIO Dual Radiators / Custom Loop: 2x 240 / 280 Radiators Triple Radiators / Custom Loop: 3x 240 / 2x 280 + 1x 240 (triple radiator setup require a separate addon kit) |
| POWER SUPPLY SUPPORT | SFX / SFX-L / ATX (ATX requires seperate PSU bracket addon & limited to 140mm deep for GPUs longer than 270mm) |
The FF01 or FreeFlow One is the spiritual successor to the SSUPD Meshlicious. W360 designed the original Meshlicious in partnership with SSUPD (Lian-Li subsidiary). This partnership has since ended as W360 parted ways with the SSUPD brand, due to acclaimed egregious actions on SSUPD’s part. W360 partnered with Streacom to bring you the highly anticipated FreeFlow FF1. W360 is one of the the developers behind the popular NCASE M2 and NCASE T1. Larger variants of the FreeFlow, FF02 and FF03 may be developed in the future.
