SilverStone Extreme 1200R

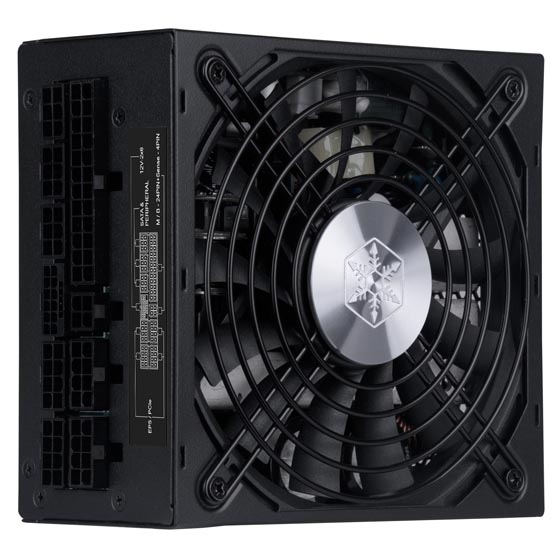

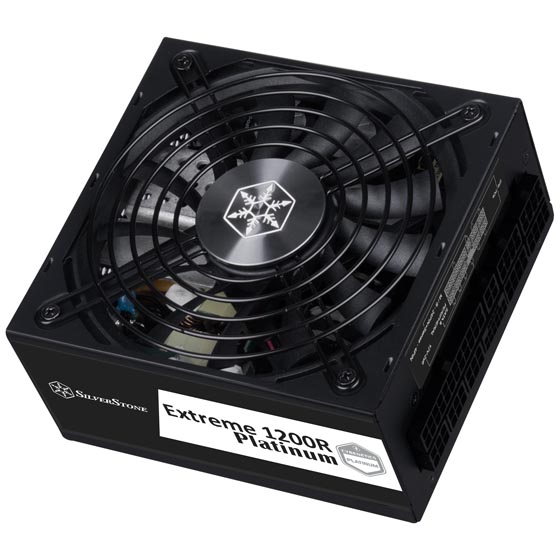

SilverStone Extreme 1200R Platinum is 1200W SFX-L power supply designed for Small Form Factor systems. It features the latest 12V-2×6 PCIe connector with SFX12V 4.1 and PCIe Gen5 standards. It also slated to include embossed cables vs. standard ribbon cables.

SPECIFICATIONS

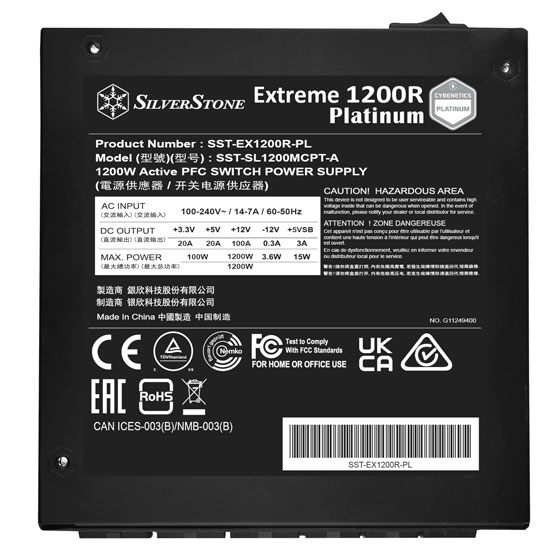

MODELSST-EX1200R-PL
FORM FACTORSFX-L
CERTIFICATIONPlatinum (Cybenetics)
DIMENSIONSL:130 x W:125 x H:63.5mm (134.7mm in length including power connectors)
RATING1200W continues power output
OPERATING TEMPERATURE 0°C ~ 50°C
SAFETY Over Current Protection
Over Power Protection (110~150%)
Over Voltage Protection
Under Voltage Protection
Short Circuit Protection
Over Temperature Protection
COOLING120mm FDB Bearing Fan

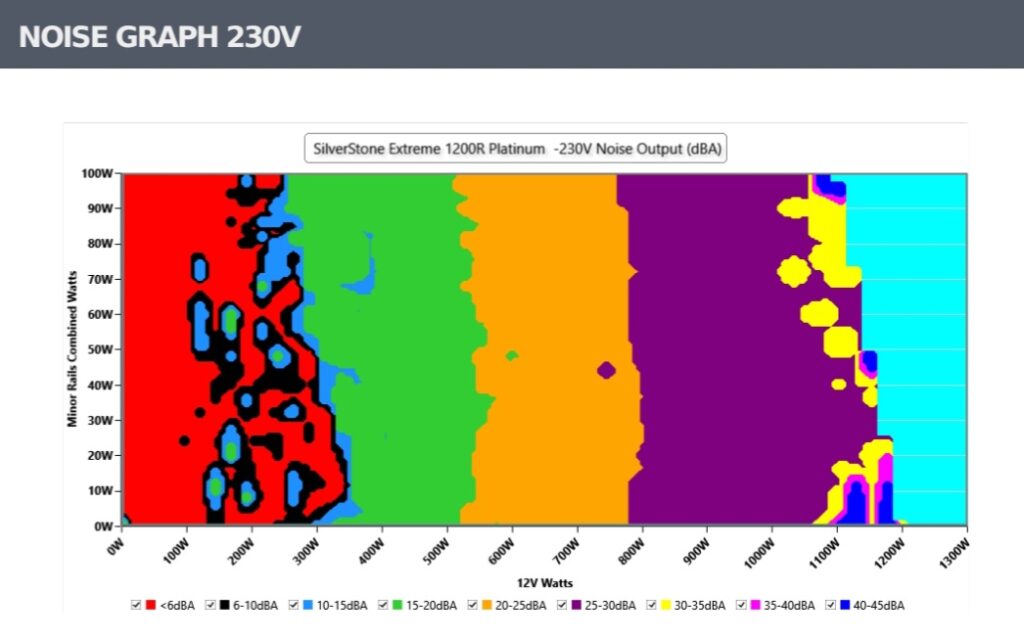

NOISE 0~36dBA at 1200W Load (Semi-Passive upto 250W)

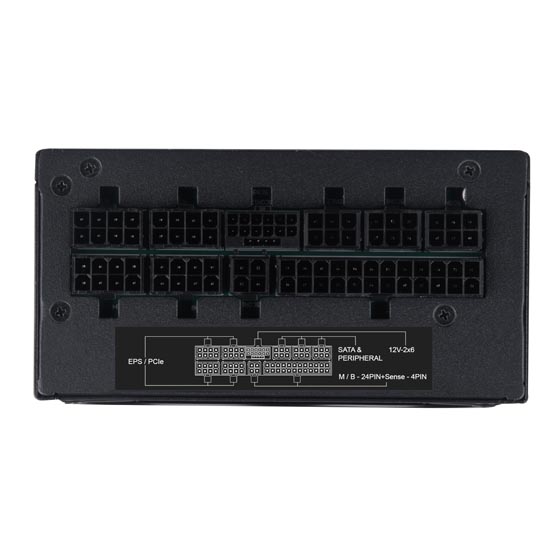

CONNECTORS1x 24-PIN + 4-PIN
4x 8-PIN EPS / PCIe
1x 12+4-PIN 12VHPWR
3x 6-PIN Peripheral / SATA

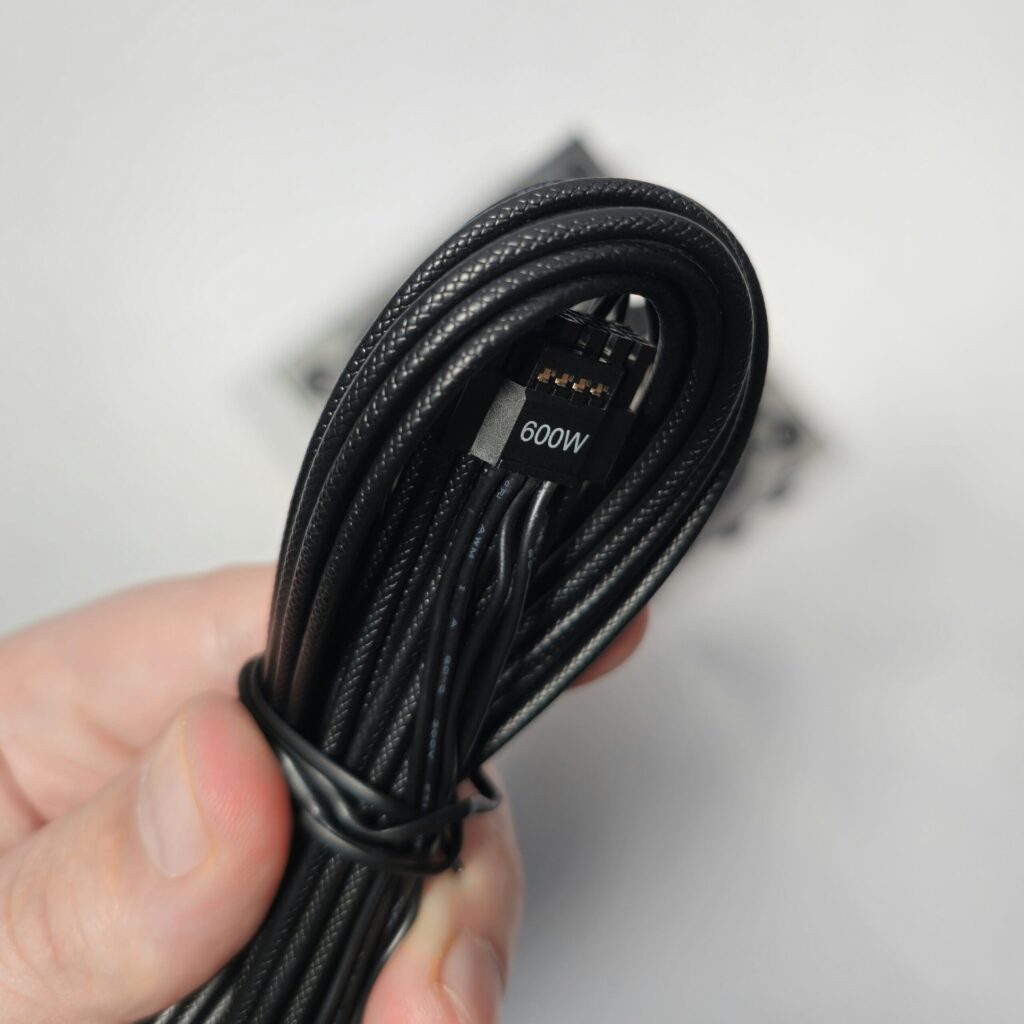

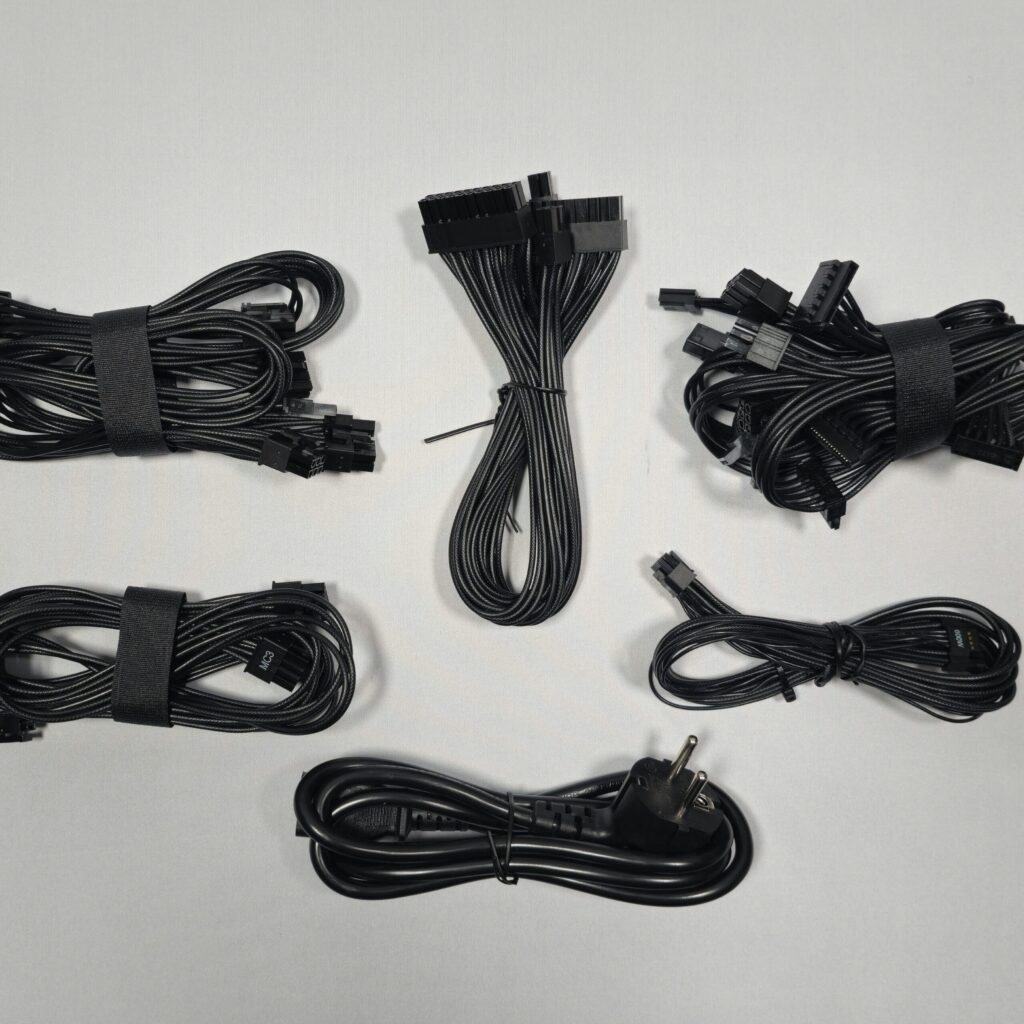

CABLES1x 24 / 20-PIN (300mm), 2x 4+4-PIN
EPS (400mm), 1x 12+4-PIN
12V-2×6 (400mm)
2x Dual 8 / 6-PIN PCIe (400, 150mm)
2x Quad SATA cables (300, 200, 100, 100mm)
3x 4-PIN Molex (300, 200, 200mm) + 4-PIN Floppy (100mm) C13 Power Cord (included)
MODULARY

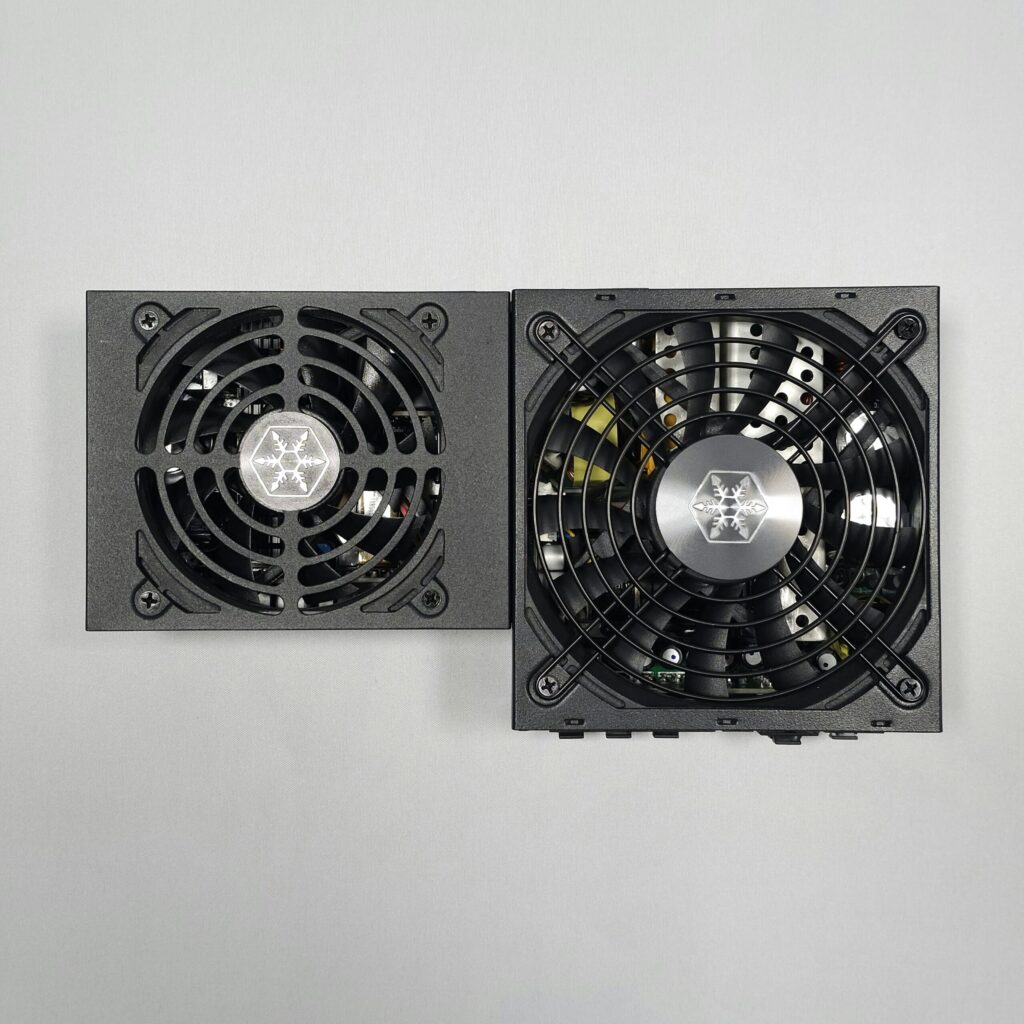

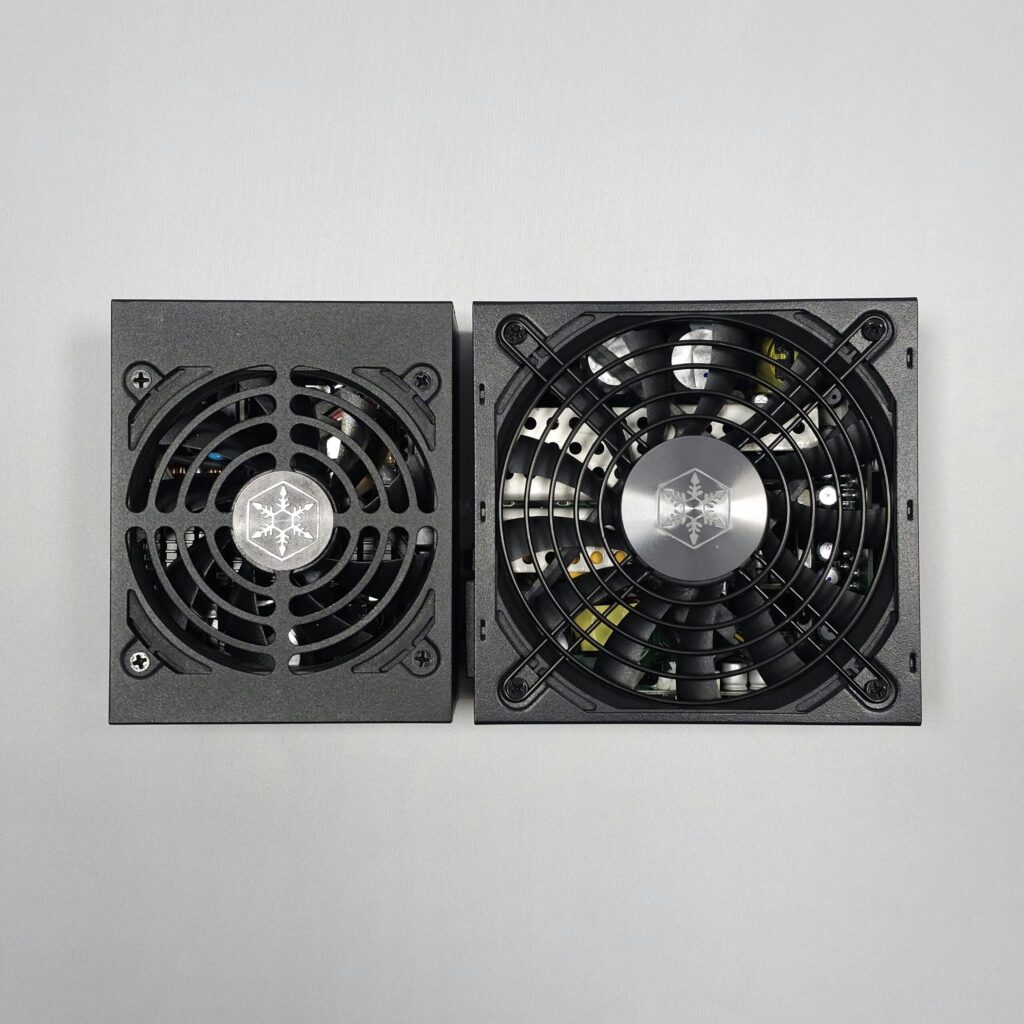

The Extreme 1200R is uses the same OEM as the SX1000R. SilverStone have updated the cables and changed to a fluid dynamic bearing fan.

This is welcome change and should alleviate the fan motor noise experienced with the dual ball bearing fan in the SX1000/1000R units. The Extreme 1200R should be quiet, if their marketing slide is accurate. Check back soon for full review.
